  • Page 1 Cover Page TRENDnet User’s Guide TEW-751DR User’s Guide...

  • Page 2: Table Of Contents

    Status > Active Sessions ................45 Main > Time ....................20 Status > Wireless ..................46 Main > Dynamic DNS ................... 21 Status > IPv6 ....................46 Main > IPv6 ....................22 Routing > Static ................... 47 © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 3 Tools > Email Settings .................. 57 Tools > Syslog ....................58 Tools > Schedules ..................58 Networking Basics ..............59 Wireless Basics ................60 Wireless Security ................ 61 Frequently Asked Questions ............62 Technical Specifications............. 63 © Copyright 2013 TRENDnet. All Rights Reserved.

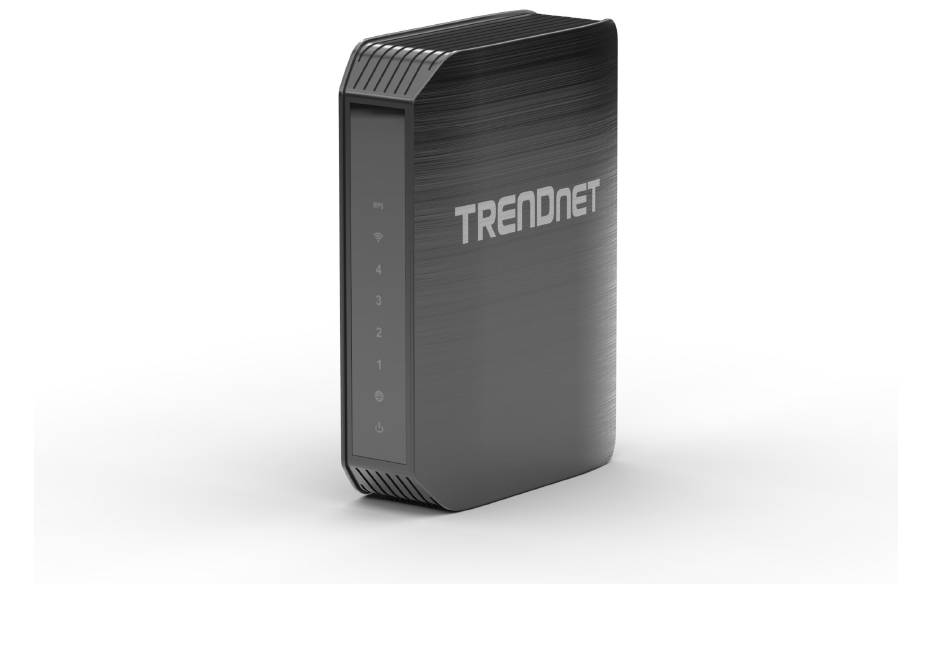

  • Page 4: Product Overview

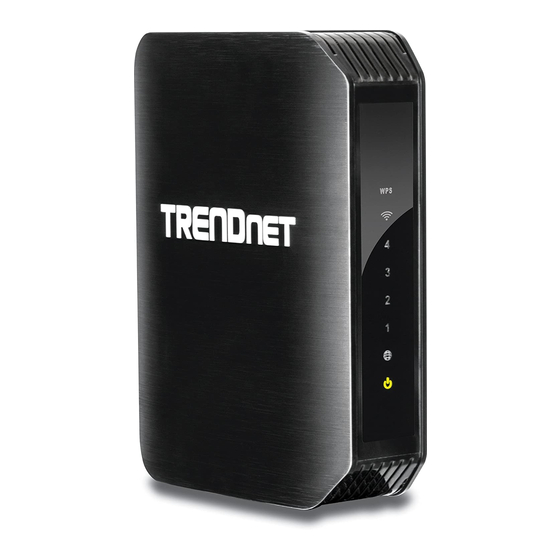

    TEW­751DR Features Product Overview TRENDnet TEW-751DR Dual Band Wireless Router produces the ultimate wireless experience with gigabit wireless speed. The router provides up to 450Mbps for the 2.4GHz band 802.11n wireless connection and 1.3Gbps for the 5GHz band 802.11a wireless connection.

  • Page 5: Product Hardware Features

    Note: Use only the adapter that came with the router. • ON/OFF Button – Press the button to power on and off. Reset Button WPS Button LAN Ports WAN Port Power Port ON/OFF Button © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 6: Installation

    2.4GHz phone base is as far away from your wireless devices as The indicator blinks when there is data transmission. possible. The base transmits a signal even if the phone in not in use. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 7: Hardware Installation

    Configuration and Wireless Security sections for more information on setting up your wireless network. If you are connecting the TEW-751DR router to an existing router to use as a wireless access point and/or switch, you will have to do the following to the TEW-751DR before connecting it to your network: •...

  • Page 8: Configuration

    Click Main > Wizard on the left side to access the Setup Wizard. Welcome to the Setup Wizard This is the welcome page of the Setup Wizard. Follow the instructions to setup the router. Click Next to continue. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 9: Step 1: Check Internet Connection

    PPPoE user name and password provided by the ISP. Click Save to implement the changes and continue. Step 2: Configure Your Internet Connection Select one of the connection types for the router. Click the radio button and Next to continue. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 10 ISP. Click Save to user name, password and other information provided by the ISP. Click Save to implement the changes and continue. implement the changes and continue. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 11: Step 3: Confirm Wi-Fi Settings

    IP and DNS settings provided by the ISP. Click Save to implement the the information of wireless connection. Click Exit to finish the configuration. changes and continue. The router starts to check the WAN connection. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 12: Main > Lan

    TRENDnet User’s Guide TEW­751DR Main > LAN This window allows you to configure the local network settings and DHCP settings. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 13 MAC Address: Enter the MAC address of the computer or device. Clone Your PC’s MAC Address: If you want to assign an IP address to the computer you are currently on, click this button to populate the fields. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 14: Main > Wan

    By doing so, we can utilize the IEEE 802.11ac connection speed to its optimum speed. Enable Access Point Mode: Tick the check box to change the router to an access point. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 15: Internet Connection Type - Static Ip

    MAC address unless required by your ISP. Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC address with the MAC address of your Ethernet card. IP Address: Enter the IP address assigned by your ISP. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 16: Internet Connection Type - Dynamic Ip (Dhcp)

    Host Name: The Host Name is optional but may be required by some ISPs. Leave blank if you are not sure. Use Unicasting: Tick this option if your ISP uses the unicast method to provide IP addresses. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 17 MAC address on the broadband router. It is not recommended that you change the default MAC address unless required by your ISP. Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC address with the MAC address of your Ethernet card. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 18: Internet Connection Type - Pptp (Username / Password)

    MAC address on the broadband router. It is not recommended that you change the default MAC address unless required by your ISP. Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC address with the MAC address of your Ethernet card. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 19: Internet Connection Type - L2Tp (Username / Password)

    MAC address on the broadband router. It is not recommended that you change the default MAC address unless required by your ISP. Clone Your PC’s MAC Address: Click to replace the Internet port’s MAC address with the MAC address of your Ethernet card. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 20: Internet Connection Type - Ds-Lite

    IPv6 WAN Default Gateway: Once connected, the IPv6 WAN Default Gateway Verify Password: Re-type the administrator password. address will be displayed here. System Name Gateway Name: Enter a name for the router. Click the Save Settings button to accept the changes made. Administration © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 21: Main > Time

    Click the Don’t Save Settings button to discard the changes made. Time and Date Configuration Time: Displays the current date and time of the router Time Zone: Select your time zone from the drop-down menu. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 22: Main > Dynamic Dns

    Host Name: Enter the host name that you registered with your Dynamic DNS service provider. Username or Key: Enter the user name or key for your Dynamic DNS account. Password or Key: Enter the password or key for your Dynamic DNS account. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 23: Main > Ipv6

    This window allows you to configure the IPv6 connection. The available IPv6 Status: Displays the current connection status. connection are Auto Detection, Static IPv6, Auto-configuration (SLAAC/DHCPv6), PPPoE, IPv6 in IPv4 Tunnel, 6to4, 6rd and Link-local Only. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 24: Ipv6 Connection Type - Auto Detection

    IPv6 Address Range (End): Enter the end IPv6 address in the range. This field is only available when Stateful DHCPv6 is selected. IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field appears when Stateful DHCPv6 is selected. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 25: Ipv6 Connection Type - Static Ipv6

    IPv6 Address Range (End): Enter the end IPv6 address in the range. This field is only available when Stateful DHCPv6 is selected. IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field is only available when Stateful DHCPv6 is selected. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 26: Ipv6 Connection Type - Auto-Configuration (Slaac/Dhcpv6)

    IPv6 Address Range (End): Enter the end IPv6 address in the range. This field is only available when Stateful DHCPv6 is selected. IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field appears when Stateful DHCPv6 is selected. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 27: Ipv6 Connection Type - Pppoe

    LAN IPv6 Address: Enter the LAN IPv6 address. LAN IPv6 Link-local Address: This field displays the LAN IPv6 link-local address. Address Auto-configuration Settings Enable automatic IPv6 address assignment: Tick the check box to enable automatic IPv6 address assignment. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 28: Ipv6 Connection Type - Ipv6 In Ipv4 Tunnel

    IPv6 Address Range (End): Enter the end IPv6 address in the range. This field is only available when Stateful DHCPv6 is selected. IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field appears when Stateful DHCPv6 is selected. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 29 IPv6 Address Range (Start): Enter the start IPv6 address in the range. This field is only available when Stateful DHCPv6 is selected. IPv6 Address Range (End): Enter the end IPv6 address in the range. This field is only available when Stateful DHCPv6 is selected. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 30: Ipv6 Connection Type - 6To4

    IPv6 Address Range (End): Enter the end IPv6 address in the range. This field is only available when Stateful DHCPv6 is selected. IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field appears when Stateful DHCPv6 is selected. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 31: Ipv6 Connection Type - 6Rd

    IPv6 Address Range (End): Enter the end IPv6 address in the range. This field is only available when Stateful DHCPv6 is selected. IPv6 Address Lifetime: Displays the IPv6 address lifetime in minute. This field appears when Stateful DHCPv6 is selected. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 32: Ipv6 Connection Type - Link-Local Only

    Click the Save Settings button to accept the changes made. Click the Don’t Save Settings button to discard the changes made. Wireless > Basic This window allows you to set up wireless settings of the Router. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 33: Wireless Network Settings - 2.4Ghz Band

    Options to choose from are 802.11b only, 802.11g only, 802.11n only, Mixed 802.11g and 802.11b, Mixed 802.11n and 802.11g, and Mixed 802.11n, 802.11g and 802.11b. If you are not sure, select Mixed 802.11n, 802.11g and 802.11b. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 34: Wireless Security Mode - Wep

    WEP Key Length: Select the WEP Key Length value as 64 bit (10 hex digits) or 128 bit (26 hex digits). Authentication: Select the WEP authentication option. Options to choose from are Both and Shared Key. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 35: Wireless Security Mode - Wpa-Personal

    WPA Personal does not require an authentication server. Pre-shared Key Pre-shared Key: Enter the WPA-Personal wireless Pre-Shared Key. This key must be configured on all the wireless clients for them to be able to connect to your wireless network. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 36: Wireless Security Mode - Wpa-Enterprise

    Second RADIUS Server Port: Enter the external RADIUS server port number. Second RADIUS Server Shared Secret: Enter the RADIUS server shared secret. This key must be configured on all the wireless clients for them to be able to connect to your wireless network. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 37: Wireless Network Settings - 5Ghz Band

    802.11a and 802.11n. If you are not sure, select Mixed 802.11a and 802.11n. Enable Auto Channel Scan: Tick the check box to allow the router to find and use the wireless channel with the least interference in your environment. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 38: Wireless Security Mode - Wep

    WEP Key Length: Select the WEP Key Length value as 64 bit (10 hex digits) or 128 bit (26 hex digits). © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 39: Wireless Security Mode - Wpa-Personal

    WPA Personal does not require an authentication server. Pre-shared Key Pre-shared Key: Enter the WPA-Personal wireless Pre-Shared Key. This key must be configured on all the wireless clients for them to be able to connect to your wireless network. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 40: Wireless Security Mode - Wpa-Enterprise

    This key must be configured on all the wireless clients for them to be able to connect to your wireless network. Click the Save Settings button to accept the changes made. Click the Don’t Save Settings button to discard the changes made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 41: Wireless > Advanced

    Options to choose from are 100%, 50%, 25% and 12.5%. Beacon Period: Enter the duration between beacon packets in milliseconds. Preamble Type: Click to select Short Preamble or Long Preamble. DTIM Interval: Enter a Delivery Traffic Indication Message interval. Wi-Fi Protected Setup © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 42 Step 2: Connect your Wireless Device After selecting the Auto radio button in Step 1, the window will be available. Step 1: Select Configuration Method for your Wireless Network © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 43 Click the Prev button to return to the previous step. Click the Cancel button to finish the setup and return to the main menu. Click the Wireless Status button to view information about wireless clients connected to the router. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 44: Status > Device Information

    After clicking the Wireless Status button, the following window appears. Status > Device Information This window displays the detail information about the Router. You can view General, WAN, LAN, Wireless LAN, LAN Computers and IGMP Multicast Memberships information. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 45: Status > Log

    Click the Next button to view the next page. Click the Clear button to the log. Click the Save Settings button to accept the changes made. Click the Don’t Save Settings button to discard the changes made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 46: Status > Statistic

    Click the Refresh button to refresh the information on this page. Click the Refresh Statistics button to refresh the information on this page. Click the Reset Statistics button to clear the information on the page. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 47: Status > Wireless

    TRENDnet User’s Guide TEW­751DR Status > Wireless Status > IPv6 This window displays a list of wireless clients connected to the Router. This window displays the detail IPv6 network information. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 48: Routing > Static

    Name: Enter the name of the route. Netmask: Enter the Netmask address of the route. Destination IP: Enter the destination IP address of the route. Gateway: Enter the gateway IP address of the route. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 49: Access > Mac Filters

    DHCP Client List: Select the DHCP client from the drop-down menu to be Click the Add button to add or modify the rule. filtered. Click the Cancel button to discard the changes made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 50: Access > Virtual Server

    Demilitarized Zone (DMZ). This option will expose the chosen computer completely to the outside world. Checkbox: Tick the check box of each entry to enable the selected rule. Name: Enter or select the application name for the rule. © Copyright 2013 TRENDnet. All Rights Reserved.
  • Page 51 Interface: Select the Source and Destination interface. IP Address: Enter the source and destination IP address ranges that will be used in this rule. Protocol: Select the protocol type. Options to choose from are TCP, UDP, and ICMP. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 52: Access > Port Forwarding

    This window is used to configure the port forwarding settings of the Router. Checkbox: Tick the check box of each entry to enable the selected rule. Name: Enter or select the application name for the rule. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 53: Access > Application Rules

    Click the Save Settings button to accept the changes made. Click the Don’t Save Settings button to discard the changes made. Checkbox: Tick the check box of each entry to enable the selected rule. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 54: Access > Qos Engine

    New Schedule button to create time schedules. Wireless Network Name: Enter a wireless network name (SSID) that is different from your main wireless network. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 55: Access > Advanced Network

    This window is used to configure more advanced network settings on the Router. Click the Save Settings button to accept the changes made. Click the Don’t Save Settings button to discard the changes made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 56: Access > Parental Control

    Checkbox: Tick the check box of each entry to enable the selected rule. Reboot The Device: Click the Reboot the Device button to reboot the router. All unsaved configurations will be discarded. Website URL: Enter the website URL. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 57: Tools > Firmware

    Make sure to save the current configuration in the text box and click the Ping button to initiate the Ping test. to the management computer, before performing firmware upgrade. Ping Result The ping result will display in this section. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 58: Tools > Email Settings

    Click the Don’t Save Settings button to discard the changes made. Email Notification Enable Email Notification: Tick the check box to enable the email notification feature. Email Settings From Email Address: Enter the sender’s email address. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 59: Tools > Syslog

    Start Time: Enter the starting time of a day. End Time: Enter the ending time of a day. Click the Add button to add this schedule into the schedule rules list. Click the Cancel button to discard the changes made. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 60: Networking Basics

    Some firewall software programs may block a DHCP request on newly installed adapters. Statically Assign an IP address If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below: © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 61: Wireless Basics

    There are two different types of like the freedom of mobility and it’s becoming so popular that more and more wireless networks Wireless Local Area Network (WLAN), and Wireless Personal Area Network (WPAN). © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 62: Wireless Security

    • Ad-Hoc – Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as two or more wireless network Cardbus adapters. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 63: Frequently Asked Questions

    Release the button and the router will go through its reboot process. Wait about 30 seconds to access the router. The default IP address is 192.168.10.1. When logging in, the username is “admin” and the password is “1234567?”. © Copyright 2013 TRENDnet. All Rights Reserved.

  • Page 64: Technical Specifications

    F~104 11 for 802.11b, 802.11g,802.11n(HT20) • Non-Operating: -20 C~70 C (-4 F~149 7 for 802.11n(HT40) • For 15.247(5G) Humidity 5 for 802.11a,802.11n(HT20) • Operating: 10%~95% non-condensing 2 for 802.11n(HT40) • Non-Operating: 5%~95% non-condensing © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 65 Increase the separation between the equipment and receiver. Dimensions & Weight Connect the equipment into an outlet on a circuit different from • that 120 x 164 x 45 mm • to which the receiver is connected. 241.7 grams © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 66 For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. © Copyright 2012 TRENDnet. All Rights Reserved.
  • Page 67 Note: The country code selection is for non-US model only and is not available to all US model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation channels only. © Copyright 2012 TRENDnet. All Rights Reserved.
