Assembly and Installation Instructions
Lower pole (Ref. #10)
Long foam tubing (Ref. #12)
Pole sleeve (Ref. #14)
18)

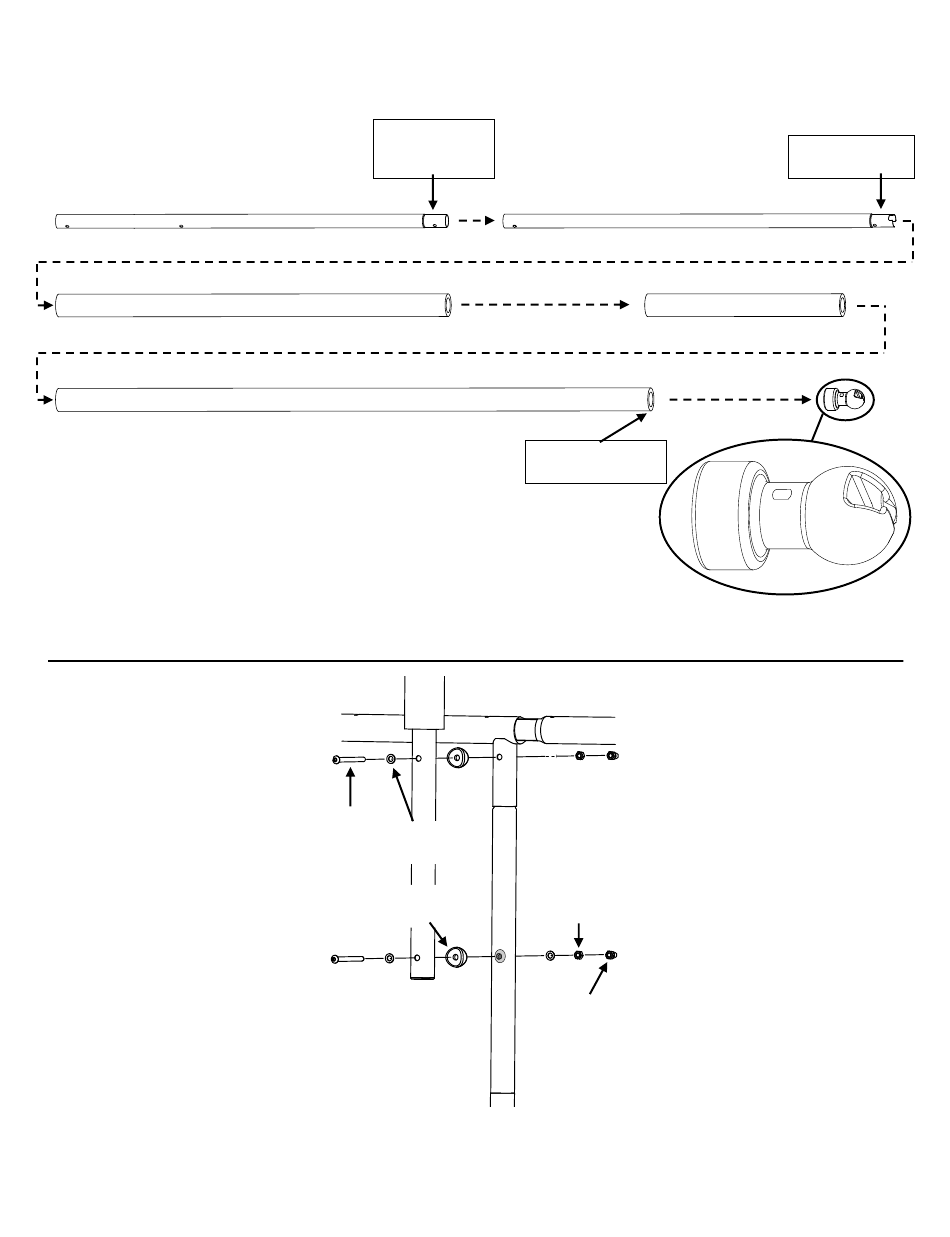

Build all pole assemblies as shown. (Pole sleeve and foam will fit up inside ball end cap.) See page 9 for detailed part
descriptions.
19)
Using the tools and hardware provided, attach a pole to the outside of each trampoline leg. Holes on bottom of pole will have
indentations on 1 side. Indentations must face in toward vertical leg. Snugly tighten bolts and Nylock nuts with wrenches. Hand-
tighten acorn nuts.
Top of lower pole
(narrower end
with snap button)
Bolt
Ref. #16a
Washer
Ref. #16c
Pole spacer
Ref. #16b
17
Upper pole (Ref. #11)
Short foam tubing (Ref. #13)
Top of pole sleeve
(narrow end)
Nylock nut
Ref. #16d
Acorn nut
Ref. #16e
Top of upper pole
(notched end)
Ball end cap (Ref. #15)
