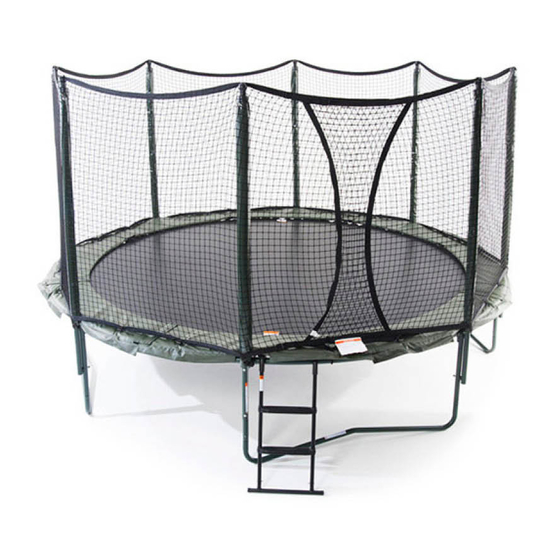

14ft VariableBounce Trampoline System
Assembly, Installation, Care, Maintenance, and Use Instructions
Read these materials prior to assembling and using this trampoline and Trampoline Enclosure
DO
somersaults.
head or neck can cause serious
injury, paralysis or death, even
when landing in the middle of the
bed.
DO NOT attempt to jump over
the barrier.
Retain address information for future use.
JumpSport, Inc.
2055 South 7th Street, Suite A
San Jose, CA 95112 U.S.A.
www.JumpSport.com/Installation-Videos
User's Manual
WARNING
NOT
attempt
or
allow
Landing
on
the
Use trampoline only with mature, knowledgeable supervision.
DO NOT allow more than one
person on the trampoline. DO
NOT allow more than one
person inside the trampoline
enclosure. Use by more than
one person at the same time
can result in serious injury.
DO NOT intentionally rebound
off the barrier.
DO NOT hang from, kick, cut
or climb on the barrier.
The maximum user weight is 245 pounds. This
trampoline is not recommended for use by children
under six years of age.
1
408-213-2551
www.jumpsport.com
P/N: INS-P-10048-02D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14ft VariableBounce Trampoline System and is the answer not in the manual?

Questions and answers

Related Manuals for AlleyOOP Sports 14ft VariableBounce Trampoline System

Summary of Contents for AlleyOOP Sports 14ft VariableBounce Trampoline System

  • Page 1 Save Time! Watch Install Videos for Tips, Shortcuts, and Updates at www.JumpSport.com/Installation-Videos 14ft VariableBounce Trampoline System User’s Manual Assembly, Installation, Care, Maintenance, and Use Instructions WARNING Read these materials prior to assembling and using this trampoline and Trampoline Enclosure DO NOT allow more than one...
  • Page 2 This product includes technology associated with U.S. and International Patents. For further information, visit: patents.JumpSport.com How to Contact Customer Support Should you require customer service or technical support for your AlleyOOP 14ft VariableBounce Trampoline System, please contact AlleyOOP Sports’ Customer Service department at: 408-213-2551...

  • Page 3: Table Of Contents

    Contents Chapter 1 Introduction AlleyOOP ProFlex Basketball Set Game and Party Pak Chapter 2 Assembly and Installation Instructions Preparation Trampoline Placement Tools (Trampoline) Parts List (Trampoline) Tools (Safety Enclosure) Parts List (Safety Enclosure) Assembly Final Steps Disassembly Chapter 3 Care and Maintenance Instructions Inspection (Trampoline &...
  • Page 4 Contents Chapter 5 Use Instructions (cont.) Twisting Moves Swivel Hips Turntable Twist Variations Warranty Information Last Page...

  • Page 5: Introduction

    Misuse and abuse of this trampoline is dangerous, and can cause serious injuries. The purchaser/ user of this piece of equipment is assuming a degree of risk for which AlleyOOP Sports cannot be responsible. Read this information thoroughly before allowing the trampoline to be used. Keep this manual available for your review, and for review by all potential users.

  • Page 6: Alleyoop Proflex Basketball Set

    Introduction AlleyOOP ProFlex Basketball Set Let’s face it, kids have to look up a lot: at parents, teachers, and  Our most popular bigger brothers/sisters. With the accessory! AlleyOOP ProFlex Basketball Set, look down for a change!  Easily installed to your safety enclosure Whether you are into practicing your outside shot or improving...

  • Page 7: Assembly And Installation Instructions

    Assembly and Installation Instructions Preparation Before you begin assembling your AlleyOOP 14ft VariableBounce Trampoline System, make sure your trampoline is in a proper location. Trampoline Placement Caution: When deciding on where to place your trampoline, consider the following: WARNING Overhead Clearance Adequate overhead clearance is essential.

  • Page 8: Tools (Trampoline)

    No tools are required for installation of the trampoline. However, safety glasses and gloves are recommended for safety. Parts List (Trampoline) Your 14ft VariableBounce Trampoline System is shipped with the parts shown below. The trampoline parts ship in 2 separate boxes which may arrive on different days. If any parts are missing, immediately call AlleyOOP Sports Customer Service at 408-213-2551.

  • Page 9: Parts List (Safety Enclosure)

    Trampoline System. The “Ref. #” mentioned in many steps is referring to the “Reference #” column of the parts list on the previous pages. Familiarize yourself with the Assembly and Installation Instructions before beginning installation. For installation questions, please contact AlleyOOP Sports’ Customer Service department at: 408-213-2551 6:00am—5:00pm Monday through Friday, Pacific Time CAUTION Pinch point.
  • Page 10 Assembly and Installation Instructions Assembly Note: We recommend at least 2 people participate in assembling the trampoline. Use pages 8—9 to help with part names and numbers. Rail with 2 Rail with no leg sockets leg sockets Ref. #3 Ref. #4 Horizontal leg piece Vertical leg...

  • Page 11: Assembly

    Assembly and Installation Instructions If your horizontal legs have snap buttons, continue reading. If not, skip to the next step. Hole in leg socket of trampoline rail. All holes shown correctly lined up with each other. Hole in vertical leg piece, shown with indentation facing out.
  • Page 12 Assembly and Installation Instructions Connect another leg assembly to same rail with 2 sockets. Connect rail with no sockets, then rail with 2 sockets. Completed frame. Connect next leg assembly to rail with 2 sockets. Note: The frame may not be snug at this point. This is normal >>...
  • Page 13 Assembly and Installation Instructions Warning label on Ref. #5 mat facing up Spring Ref. #6 Warning label on mat facing up (Top view) TIP: For easy spring installation, connect spring to V-ring of mat and pull toward you, to connect to frame. Use a second spring as a tool to hook onto the one you are installing.
  • Page 14 Assembly and Installation Instructions Person 2 (Top view) Person 1 Now connect a spring to every middle V-ring and spring notch, working clockwise around the trampoline. Have someone work across from you, also going clockwise. Note: It is important to have someone working across from you. Otherwise the springs could over-extend and become difficult to connect, or possibly even damaged.
  • Page 15 Assembly and Installation Instructions Frame pad section Ref. #7a Small flaps in pad skirt WARNING: Trampoline use is not recommended without the frame pad installed. The frame pad is designed to reduce the possibility of injury by protecting the user from coming into contact with the frame and springs of the trampoline.
  • Page 16 Assembly and Installation Instructions Button bungee on Button bungee on top of frame pad bottom of frame pad Between the poles on the top of the frame pad, you will find a button bungee. Lift the pad at one of these button bungee locations.
  • Page 17 Assembly and Installation Instructions Top of lower pole (narrower end Top of upper pole with snap button) (notched end) Lower pole (Ref. #10) Upper pole (Ref. #11) Long foam tubing (Ref. #12) Short foam tubing (Ref. #13) Ball end cap (Ref. #15) Pole sleeve (Ref.
  • Page 18 Assembly and Installation Instructions Pole 4 Pole 3 Pole 5 (Top view. Leg assemblies Pole 6 Pole 2 shown with dotted lines.) Start Pole 1 Pole 7 Place end of net with warning Pole 8 label here Become familiar with the numbering of the poles, as shown above. The doorway will be an overlapping section of net between pole 1 and pole 8, and will be directly over a U-leg.
  • Page 19 Assembly and Installation Instructions Pole 4 8 net meshes from strap buckle Pole 5 Pole 3 Pole 2 Doorway of trampoline No gap between cap and foam/sleeve Pole 1 Pole 1 View from inside trampoline looking outward Ensure the warning placard is correctly positioned: Refer to the photos in Step #21 for confirmation.
  • Page 20 Assembly and Installation Instructions Ladder to side of doorway If the net is not centered or slightly to the right of center when viewed from outside the trampoline, adjust the mesh- es on the ball end caps so that it is centered. This is to ensure there is room for the ladder, so that the user may enter safely.
  • Page 21 Assembly and Installation Instructions Connect the bottom strap of the net to each enclosure pole using a strap buckle. Wrap the strap buckle around the lower net strap only, then lift up the pad and thread the end of the strap around the enclosure pole and the top of the frame rail.
  • Page 22 Assembly and Installation Instructions At overlapping doorway, find the 2 button bungees on top of frame pad. Secure bottom strap of inner panel of net at each button bungee with a square knot. Note: Do not wrap bungee around net mesh, only around bottom strap of net. (View from inside trampoline) Button bungee Location of button bungees...

  • Page 23: Final Steps

    Assembly and Installation Instructions Your VariableBounce Trampoline is now complete! Final Steps Assembly is now complete! Make sure all parts are securely assembled. Before using your 14ft VariableBounce Trampoline System, familiarize yourself and all users with the Care and Maintenance Instructions, Warning Information, and Use Instructions included in this manual.

  • Page 24: Disassembly

    Pole 8 Enter through here. Disassembly To disassemble your 14ft VariableBounce Trampoline System, follow the assembly steps in reverse order. Do not attempt to disassemble any rail pieces before the mat and springs have been removed. *For more information about...

  • Page 25: Care And Maintenance Instructions

    Care and Maintenance Instructions Your AlleyOOP Sports Trampoline is made using quality materials and is finely-crafted to provide you and your family with many years of enjoyment and exercise. Proper maintenance and care will help to prolong the life of the trampoline and reduce the possibility of injury.

  • Page 26: Trampoline Mat

    This type of damage is not covered by warranty. Replacement Parts All replacement parts should be ordered through AlleyOOP Sports. Stores that repair shoes, awnings, or tents, as well as upholstery shops, do not have the proper materials, equipment, or methods for the proper/safe repair of trampoline mats and frame pads.

  • Page 27: Care And Maintenance Safety Checklist (Trampoline)

    Care and Maintenance Instructions (Trampoline) Care and Maintenance Safety Checklist (Trampoline) Note: Inspect the trampoline before each use and replace any worn, defective, or missing parts. Frame Pad Our frame pad reduces the risk of accidental injury due to falling onto the frame railing and gives minimal resistance to striking or falling on and through the springs.
  • Page 28 Care and Maintenance Instructions (Trampoline) Frame The life of your AlleyOOP Sports trampoline frame should last for many years, depending upon the weather in the area where you live. Safety Check Check for... Necessary Action Safe Unsafe Rust Clean and paint...

  • Page 29: Care And Maintenance Safety Checklist (Safety Enclosure)

    Care and Maintenance Instructions (Safety Enclosure) Care and Maintenance Safety Checklist (Safety Enclosure) Note: Inspect the trampoline enclosure before each use and replace any worn, defective, or missing parts. Pole Foam The pole foam and vinyl pole sleeve life expectancy is two to five years. To increase the life of your pole foam and sleeves, do not allow people to grab them in order to pull themselves onto the trampoline.

  • Page 30: Windy Conditions

    The 14ft VariableBounce Trampoline System is intended to be used by one person at a time, weighing less than 245 pounds. The user should either be barefoot or wearing gymnastic slippers or non-cleated athletic shoes. The user should remove all sharp objects from their person that may cause injury or damage to the trampoline mat.

  • Page 31: Warning Information

     Do not attach other apparatus to the trampoline enclosure unless it is an AlleyOOP Sports-approved device. Any additional AlleyOOP accessory that you may attach to the trampoline enclosure must be attached and used only in accordance with the instructions for such accessory.

  • Page 32: Landing On Springs Or Frame

     Properly installing the safety enclosure Simple frame pads or spring covers on their own do not give adequate protection. Installing the AlleyOOP Sports Safe- Enclosure and using spotters, will greatly reduce the risk of injury. Bouncing off the Trampoline Bouncing off of the trampoline can be controlled, if not completely eliminated, through: ...

  • Page 33: Use Instructions

    Use Instructions Safety Rules (Trampoline) It is the responsibility of the owner to become familiar with the safety rules and to convey these rules to all users. WARNING  DO NOT attempt or allow somersaults. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the bed.

  • Page 34: Safety Rules (Safety Enclosure)

    Use Instructions (Safety Enclosure) Safety Rules (Safety Enclosure) It is the responsibility of the owner to become familiar with the safety rules and to convey these rules to all users. WARNING  DO NOT attempt or allow somersaults on the trampoline. Landing on the head or neck can cause serious injury, paralysis, or death, even when landing in the middle of the bed.

  • Page 35: Basic Skills

    Use Instructions Basic Skills Basic trampoline skills include:  Bouncing  Stop Bounce  Arm Action  Bounce Variations Bouncing The most important basic skill in jumping on a trampoline, is controlling the height and landing of your bounce. The goal is to land in the center of the mat, or as close to the center of the mat as possible.

  • Page 36: Bounce Variations

    Use Instructions Bounce Variations Figure 3 shows three variations you can perform in the air. These should be performed at the top of your bounce before returning to the normal landing position on your feet. Figure 3 Bounce Variations Tuck Pike Straddle Practice these simple variations and concentrate on perfect form.

  • Page 37: Hands And Knees Drop

    Use Instructions Hands and Knees Drop To do a Hands and Knees Drop properly, there should be just as much weight on the hands as on the knees. The back should be about parallel to the mat. The knees and hands should land simultaneously, with the middle of the body landing in the center of the trampoline.

  • Page 38: Series Of Drops

    Use Instructions Front Drop Note: Your body must contact the trampoline mat all at once. If you land on your chest and arms first, they will rebound before the knees hit, which will result in a straining action on the back. If this type of landing is made with a traveling, diving approach, there is a good chance that the elbows may become skinned.

  • Page 39: Turntable

    Use Instructions Turntable Figure 8 Turntable A Turntable is a combination move consisting of a Front Drop, a Half Twist, then another Front Drop. First become familiar with the first part of a Turntable. a. Begin in a hands and knees position, with hands forming a triangle, like a Front Drop.
  • Page 40 You must pay freight and insurance to return the part to AlleyOOP Sports. At AlleyOOP Sports’ sole discretion, we may ask you to send photographs in addition to or in lieu of returning the part.
