Assembly
Note: We recommend at least 2 people participate in assembling the trampoline. Use pages 8—9 to help with part
names and numbers.
Rail with 2
leg sockets
Ref. #3
Vertical leg
piece
Ref. #2
(Top view)
1)

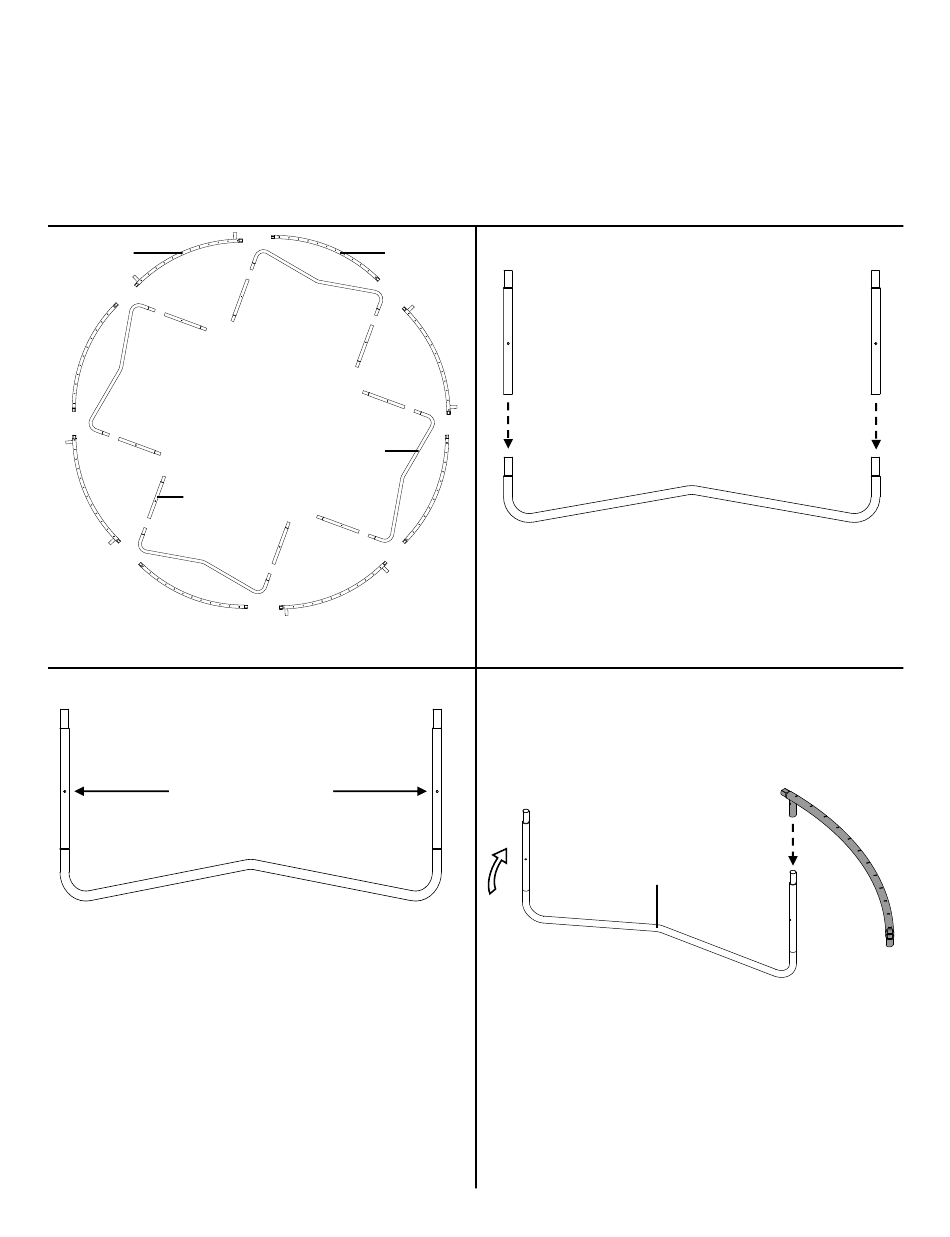

Lay all rail and leg pieces in a circle as shown. See page 8 for
detailed part descriptions.
Holes in vertical leg
pieces must have
indentations facing the
same direction
3)
IMPORTANT: The holes through the vertical legs
near the middle of each leg and not related to the snap
—
buttons will be used for connecting the enclosure poles in a
later step. On one side, the hole will be flat and flush with the
leg. On the other side, the hole will be indented into the leg. You
can see and feel a difference between each side by running your
finger along the hole.
Both vertical leg pieces must have the indented side facing the
same direction, and when you attach the leg assemblies to the
rails in the next steps, the indented side must face out and away
from the trampoline.
>> Repeat Step 2 with all remaining leg pieces. When finished,
you will have 4 complete leg assemblies.
Rail with no
leg sockets
Ref. #4
Horizontal
leg piece
Ref. #1
2)
leg assembly as shown above.
If applicable, snap buttons on ends of horizontal leg pieces will need to be
depressed before legs will fit together. See next page for leg positioning.
—
located
4)
as shown.
10
Assembly and Installation Instructions
Using 1 horizontal leg piece and 2 vertical leg pieces, build a
Leg assembly
Stand 1 leg assembly upright and connect a rail with 2 sockets
