  • Page 1 SBI-4429P-T2N SuperBlade Module User’s Manual Revision 1.0d...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 SuperBlade module. Chapter 3: Setup and Installation Refer to this chapter for details on installing the SBI-4429P-T2N SuperBlade module into the SuperBlade chassis. Other sections cover the installation and placement of memory modules and the installation of hard disk drives into the blade module.

  • Page 4: Table Of Contents

    Memory ....................1-2 Storage ....................1-3 RAID ....................... 1-3 Enclosure Requirements................. 1-3 Density ....................1-3 Unique Password..................1-3 1-4 Contacting Supermicro ..............1-4 Chapter 2 Standardized Warning Statements ..... 2-1 2-1 About Standardized Warning Statements ........2-1 Warning Definition................... 2-1 Installation Instructions ................
  • Page 5 SBI-4429P-T2N SuperBlade Module User’s Manual 3-3 Processor Installation ............... 3-4 Overview of the Processor Socket Assembly ......... 3-5 Overview of the Processor Heatsink Module (PHM)....... 3-6 Attaching the Processor to the Narrow Processor Clip to Create the Processor Package Assembly ..............3-7 Attaching the Processor Package Assembly to the Heatsink to Form the Processor Heatsink Module (PHM)............
  • Page 6 Table of Contents 5-4 Main BIOS Setup ................5-3 5-5 Advanced Setup ................5-5 5-6 Event Logs Setup ................5-19 5-7 IPMI Setup ..................5-21 5-8 Security ..................... 5-23 5-9 Boot ....................5-25 5-10 Save & Exit ..................5-27 Appendix A Updating BIOS Using KVM Console ....A-1...

  • Page 7: Chapter 1 Introduction

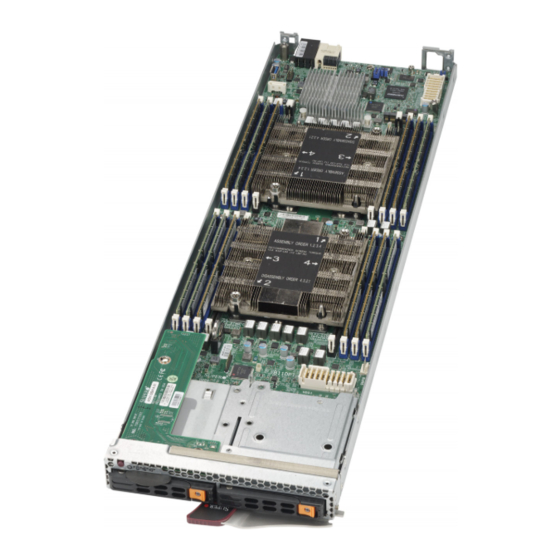

    One enclosure for the SBI-4429P-T2N blade module can hold up to 14 blade units in the 4U SBE-414E-222/ 422 or SBE-414EB-222 model enclosures (4x2200W power supplies required for full enclosure capacity).

  • Page 8: Blade Module Features

    SBI-4429P-T2N blade module. See the proceeding section for components typically included in a blade system and other optional components. Specific details for the SBI-4429P-T2N blade module are found in Chapter 4: "Blade Module Features" on page 4-1.

  • Page 9: Storage

    • 4U SBE-414E-222/422 • 4U SBE-414EB-222 The SBI-4429P-T2N blade module also requires a power supply in the enclosure to run the blade module. Available SuperBlade power supplies can be found on the Supermicro website at https://www.supermicro.com/products/SuperBlade/powersupply/. Density A maximum of 14 blade modules may be installed into a single blade enclosure. Each blade enclosure is a 4U form factor, so a standard 42U rack may accommodate up to ten enclosures with 140 blade modules, or the equivalent of 140 1U servers.
  • Page 10 SBI-4429P-T2N SuperBlade Module User’s Manual Figure 1-1. Service Tag Location on a Blade Module Service Tag...

  • Page 11: Contacting Supermicro

    Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 marketing@supermicro.com (General Information) Email: support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML ‘s-Hertogenbosch, The Netherlands...

  • Page 12: Chapter 2 Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 13 SBI-4429P-T2N SuperBlade Module User’s Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.

  • Page 14: Installation Instructions

    Chapter 2: Standardized Warning Statements 안전을 위한 주의사항 경고 ! 이 경고 기호는 위험이 있음을 알려 줍니다 . 작업자의 신체에 부상을 야기 할 수 있는 상태에 있게 됩니다 . 모든 장비에 대한 작업을 수행하기 전에 전기회로와 관련된 위험 요소들을 확인하시고 사전에 사고를 방지할 수 있도록 표준 작업절차를 준수해 주시기 바랍니다...

  • Page 15: Circuit Breaker

    SBI-4429P-T2N SuperBlade Module User’s Manual Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. ‫מתח‬ ‫את הוראות התקנה לפני חיבור המערכת למקור‬ ‫יש לקרוא‬ ‫ﻣﺼﺪر ﻟﻠﻄﺎﻗﺔ‬ ‫اﻟﻨﻈﺎم إﻟﻰ‬ ‫ﻗﺒﻞ ﺗﻮﺻﯿﻞ‬ ‫ﺘﺮﻛﯿﺐ‬ ‫اﻗﺮ إرﺷﺎدات اﻟ‬ 시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오 .

  • Page 16: Power Disconnection Warning

    Chapter 2: Standardized Warning Statements ‫קצר חשמלי. יש לוודא כי‬ ‫המותקנת במבנים למניעת‬ ‫ה‬ ‫הגנ‬ ‫מוצר זה מסתמך על‬ ‫הוא לא יותר מ‬ ‫החשמלי‬ ‫המכשיר המגן מפני הקצר‬ 250 V, 20 A ‫ﻓﻲ‬ ‫اﻟﺘﻲ ﺗﻢ ﺗﺜﺒﯿﺘﮭﺎ‬ ‫ﻣﻦ اﻟﺪواﺋﺮاﻟﻘﺼﯿﺮة‬ ‫اﻟﺤﻤﺎﯾﺔ‬ ‫ﻣﻌﺪات‬ ‫ﯾﻌﺘﻤﺪ...

  • Page 17: Equipment Installation

    SBI-4429P-T2N SuperBlade Module User’s Manual ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema.

  • Page 18: Restricted Area

    Chapter 2: Standardized Warning Statements Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden. ¡Advertencia! Solamente el personal calificado debe instalar, reemplazar o utilizar este equipo. Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à...
  • Page 19 SBI-4429P-T2N SuperBlade Module User’s Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una...

  • Page 20: Battery Handling

    Chapter 2: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. 電池の取り扱い...

  • Page 21: Redundant Power Supplies

    SBI-4429P-T2N SuperBlade Module User’s Manual 경고 ! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다 . 기존 배터리와 동일하거 나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다 . 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오 . Waarschuwing Er is ontploffingsgevaar indien de batterij verkeerd vervangen wordt. Vervang de batterij slechts met hetzelfde of een equivalent type die door de fabrikant aanbevolen wordt.

  • Page 22: Backplane Voltage

    Chapter 2: Standardized Warning Statements ‫اﻣﺪاد اﻟﻄﺎﻗﺔ‬ ‫ﺑﻮﺣﺪات‬ ‫ﻋﺪة اﺗﺼﺎﻻت‬ ‫ﺠﮭﺎز‬ ‫اﻟ‬ ‫ﯾﻜﻮن ﻟﮭﺬا‬ ‫ﻗﺪ‬ ‫اﻟﻜﮭﺮﺑﺎء‬ ‫ﻋﻦ‬ ‫ﻮﺣﺪة‬ ‫اﻟ‬ ‫ﻟﻌﺰل‬ ‫ﻛﺎﻓﺔ اﻻﺗﺼﺎﻻت‬ ‫ﯾﺠﺐ إزاﻟﺔ‬ 경고 ! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다 . 이 장치에 전 원을...

  • Page 23: Comply With Local And National Electrical Codes

    SBI-4429P-T2N SuperBlade Module User’s Manual ‫اﻟﻠﻮﺣﺔ‬ ‫أواﻟﻄﺎﻗﺔ اﻟﻤﻮﺟﻮدة ﻋﻠﻰ‬ ‫اﻟﺘﯿﺎر اﻟﻜﮭﺮﺑﺎﺋﻲ‬ ‫ﻣﻦ‬ ‫ﺧﻄﺮ‬ ‫ھﻨﺎك‬ ‫ھﺬا اﻟﺠﮭﺎز‬ ‫ﺧﺪﻣﺔ‬ ‫ﻛﻦ ﺣﺬرا ﻋﻨﺪ‬ ‫ﯾﻌﻤﻞ‬ ‫اﻟﻨﻈﺎم‬ ‫ﻋﻨﺪﻣﺎ ﯾﻜﻮن‬ 경고 ! 시스템이 동작 중일 때 후면판 (Backplane) 에는 위험한 전압이나 에너지가 발생 합니 다 . 서비스 작업 시 주의하십시오 .

  • Page 24: Product Disposal

    Chapter 2: Standardized Warning Statements 경고 ! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다 . Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften. Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

  • Page 25: Hot Swap Fan Warning

    SBI-4429P-T2N SuperBlade Module User’s Manual 경고 ! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다 . Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen. Hot Swap Fan Warning...

  • Page 26: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードと AC アダプター...
  • Page 27 Fehlfunktion oder ein Brand entstehen. Elektrische Geräte und Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifizierte Kabel, UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von Supermicro nur bezeichnet gezeigt haben.
  • Page 28 Het gebruik van andere kabels en adapters kan leiden tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertificeerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen. 2-17...

  • Page 29: Chapter 3 Setup And Installation

    This chapter covers the setup and installation of the blade module and its components. Installing Blade Modules Up to 14 SBI-4429P-T2N SuperBlade modules may be installed into a single blade enclosure. Blade modules with Windows and Linux operating systems may be mixed together in the same blade or blade enclosure.

  • Page 30: Removing A Blade Unit From The Enclosure

    SBI-4429P-T2N SuperBlade Module User’s Manual Removing a Blade Unit from the Enclosure Although the blade system may continue to run, individual blades should always be powered down before removing them from the enclosure. Removing a Blade Unit from the Enclosure 1.
  • Page 31 Chapter 3: Setup and Installation Figure 3-1. Inserting a Blade into the Enclosure...

  • Page 32: Processor Installation

    CPU socket cap is in place and that none of the socket pins are bent; otherwise, contact your retailer immediately. 3. Refer to the Supermicro website for updates on CPU support. 4. Please follow the instructions given in the ESD Warning section on the first page of this chapter before handling, installing, or removing system components.

  • Page 33: Overview Of The Processor Socket Assembly

    Chapter 3: Setup and Installation Overview of the Processor Socket Assembly The processor socket assembly contains 1) the Intel SKX/CLX/CLX processor, 2) the narrow processor clip, 3) the dust cover, and 4) the CPU socket. 1. SKX/CLX (-F) 2. Narrow processor clip (the plastic processor package carrier used for the CPU) 3.

  • Page 34: Overview Of The Processor Heatsink Module (Phm)

    SBI-4429P-T2N SuperBlade Module User’s Manual Overview of the Processor Heatsink Module (PHM) The Processor Heatsink Module (PHM) contains 1) a heatsink, 2) a narrow processor clip, and 3) the SKX/CLX(-F) processor. 1. Heatsink 2. Narrow Processor Clip 3. SKK Processor...

  • Page 35: Attaching The Processor To The Narrow Processor Clip To Create The Processor Package Assembly

    Chapter 3: Setup and Installation Attaching the Processor to the Narrow Processor Clip to Create the Processor Package Assembly To properly install the CPU into the narrow processor clip, please follow the steps below. 1. Locate pin 1 (notch A), which is the triangle located on the top of the narrow processor clip.

  • Page 36: Attaching The Processor Package Assembly To The Heatsink To Form The Processor Heatsink Module (Phm)

    SBI-4429P-T2N SuperBlade Module User’s Manual Attaching the Processor Package Assembly to the Heatsink to Form the Processor Heatsink Module (PHM) After you have made a processor package assembly by following the instructions on the previous page, please follow the steps below to mount the processor package assembly onto the heatsink to create the Processor Heatsink Module (PHM).
  • Page 37 Chapter 3: Setup and Installation Non-Fabric CPU and Processor Clip (Upside Down) Triangle on the CPU Triangle on the Processor Clip Heatsink (Upside Down) On Locations of (C, D), the notches snap onto the heat sink’s mounting holes On Locations (A, B), the notches Make sure Mounting snap onto the heatsink’s sides Notches snap into place...

  • Page 38: Preparing The Cpu Socket For Installation

    SBI-4429P-T2N SuperBlade Module User’s Manual Preparing the CPU Socket for Installation This motherboard comes with the CPU socket pre-assembled in the factory. The CPU socket contains 1) a dust cover, 2) a socket bracket, 3) the CPU (P0) socket, and 4) a back plate.
  • Page 39 Chapter 3: Setup and Installation Installing the Processor Heatsink Module (PHM) Once you have assembled the processor heatsink module (PHM) by following the instructions listed on page 29 or page 30, you are ready to install the processor heatsink module (PHM) into the CPU socket on the motherboard. To install the PHM into the CPU socket, follow the instructions below.

  • Page 40: Removing The Processor Heatsink Module (Phm) From The Motherboard

    SBI-4429P-T2N SuperBlade Module User’s Manual Removing the Processor Heatsink Module (PHM) from the Motherboard Before removing the processor heatsink module (PHM), unplug power cord from the power outlet. 1. Using a T30 Torx-bit screwdriver, turn the screws on the PHM counterclockwise to loosen them from the socket, starting with screw marked #4 (in the sequence of 4, 3, 2, 1).

  • Page 41: On-Board Battery Installation

    Populating Memory Slots Each node’s mainboard of a SBI-4429P-T2N blade module has twelve memory slots, four for each processor. Both interleaved and non-interleaved memory are supported, so you may populate any number of DIMM slots. For information on memory population,...
  • Page 42 SBI-4429P-T2N SuperBlade Module User’s Manual Table 3-1. DIMM Installation CPU1 Number of CPU 1 DIMMs 3-14...
  • Page 43 2. Populate in furthest slot from CPU if only one DIMM Populated in a channel. 3. Populate in furthest slot from CPU if only one DIMM Populated in a channel. 4. A2 and D2 reserved for AEP/NVDIMM 5. See https://www.supermicro.com/support/resources/memory/ X11_memory_config_guide.pdf for details. 3-15...

  • Page 44: Dimm Installation

    SBI-4429P-T2N SuperBlade Module User’s Manual Table 3-3. Memory for the SBI-4429P-T2N SuperBlade Module SMC Module Part # MEM-DR416L-CV01-ER26 Module Manufacturer Micron Module Manufacturer Part # MTA18ADF2G72PZ-2G6H1R DRAM Component Vendor Micron DRAM Component Part # D9VxK # of Ranks RoHS Compliance...
  • Page 45 6. Press the release tabs to the locking positions to secure the DIMM module into the slot. Note: Check Supermicro's website for recommended memory modules. Removing Memory Modules Press the release tabs on both ends of the memory module to unlock it. Once it is loosened, remove the DIMM module from the memory slot.

  • Page 46: Hard Disk Drive Installation

    6. Push the handle in until you hear the carrier click into its locked position. Caution: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site at http://www.supermicro.com/products/nfo/files/storage/SAS-CompList.pdf...

  • Page 47: Installing The Operating System

    An operating system (OS) must be installed on each blade module. Blades with Microsoft Windows OS and blades with Linux OS can both occupy and operate within the same blade enclosure. Refer to the SuperMicro web site for a complete list of supported operating systems.

  • Page 48: Configuring And Setting Up Raid

    SBI-4429P-T2N SuperBlade Module User’s Manual Configuring and Setting up RAID Each blade module that supports two or more hard drives may be used to create a RAID array. The procedures for doing this vary depending upon the blade model chosen for your SuperBlade system.

  • Page 49: Chapter 4 Blade Module Features

    Chapter 4 Blade Module Features Figure 4-1. SBI-4429P-T2N Blade Unit Front View This chapter describes the SBI-4429P-T2N blade unit. Installation and maintenance should be performed by experienced technicians only. Figure 4-1 for a front view of the blade unit and Table 4-1 for its features.

  • Page 50: Control Panel

    SBI-4429P-T2N SuperBlade Module User’s Manual Control Panel Each blade has a similar control panel (Figure 4-2) with power on/off button and four LEDs on the top front of the unit. The numbers mentioned in Figure 4-2are described in Table 4-2.

  • Page 51: Mainboard

    Chapter 4: Blade Module Features Mainboard The mainboard of the SBI-4429P-T2N blade unit is a proprietary design, which is based on the Intel C622 chipset. See Figure 4-4 for a block diagram of this chipset, Figure 4-3 for a view of the B11DPT mainboard and...
  • Page 52 SATA port RAIDKEY Integrated Aspeed AST 2500 BMC with VGA Graphics Chips M.2 daughter card slot 9-pin TPM Connector On-board M.2 Connector Intel VROC upgrade key for NVMe Figure 4-4. SBI-4429P-T2N System Block Diagram B11DPT #1-8 #2-8 #1-7 #2-7 #1-6...

  • Page 53: Cmos Clear

    3. Replace the cover, install the blade back into the enclosure and power it on. Jumper Settings The following jumper settings can be used for the SBI-4429P-T2N blade modules: Table 4-4. Jumper Settings Default...

  • Page 54: Memory Support

    Front Panel Module Cards Rear Cover Memory Support The SBI-4429P-T2N SuperBlade module supports up to 384 GB of VLP DDR4 2400/ 2666/2933 MHz speed, 8 GB, 16 GB and 32 GB size SDRAM memory in twelve 288-pin DIMM sockets per node. See...

  • Page 55: Chapter 5 Bios

    Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the http:// www.supermicro.com/products/SuperBlade/module/ web site for further details on BIOS setup and the BIOS menus for your SuperBlade blade module.

  • Page 56: Bios Updates

    SBI-4429P-T2N SuperBlade Module User’s Manual BIOS Updates It may be necessary to update the BIOS used in the blade modules on occasion. However, it is recommended that you not update BIOS if you are not experiencing problems with a blade module.

  • Page 57: Main Bios Setup

    Chapter 5: BIOS Main BIOS Setup Figure 5-1. Main BIOS Setup Screen All Main Setup options are described in this section. Use the U arrow keys to move among the different settings in each menu. Use the L arrow keys to change the options for each setting. IGHT Press the <E >...
  • Page 58 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-1. Main BIOS Setup Menu Options Menu Option Description Using the arrow keys, highlight the month, day and year fields, and enter the System Date correct data for the system date. Press the <Enter> key to save the data.

  • Page 59: Advanced Setup

    Chapter 5: BIOS Advanced Setup Figure 5-2. BIOS Setup Screen Choose Advanced from the BIOS Setup Utility main menu with the arrow keys to display the A menu. The items with a triangle beside them are DVANCED ETUP sub-menus that can be accessed by highlighting the item and pressing <E >.
  • Page 60 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-2 describes all sub-menus found in the A menu. DVANCED ETUP Table 5-2. Advanced Setup Menu Options Sub-menu Description Boot Feature Table 5-3 for a description of BIOS setup menu options in this sub-menu.
  • Page 61 Chapter 5: BIOS Table 5-3. Boot Feature sub-menu Menu Option Description When Disabled the BIOS displays normal POST messages. When Quiet Boot Enabled the BIOS displays an OEM Logo instead of POST messages. Use this setting to set the display mode for Option ROM to either Force Option ROM Messages BIOS or Keep Current.
  • Page 62 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-4. CPU Configuration sub-menu (Continued) Menu Option Description This setting allows you to Enable or Disable the DCU IP Prefetcher, which DCU IP Prefetcher is an L1 data cache prefetcher. This setting allows you to enable or disable the LLC Prefetch on all LLC Prefetch threads.
  • Page 63 Chapter 5: BIOS Table 5-5. Chipset Configuration Sub-menu Menu Option Description North Bridge This sub-menu configures North Bridge features and shows configuration Configuration information. UPI Configuration UPI General This static information shows UPI General Configuration information for Configuration your system. Information Use this setting to select the Degrade Precedence.
  • Page 64 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-5. Chipset Configuration Sub-menu (Continued) Menu Option Description Static Virtual Use this setting to Enable or Disable Static Virtual Lockstep mode. Lockstep Mode Mirror Mode will set the entire 1LM/2LM memory in the system to be mirrored, consequently reducing the memory capacity by half.
  • Page 65 Chapter 5: BIOS Table 5-5. Chipset Configuration Sub-menu (Continued) Menu Option Description CPU2 This submenu allows you to configure CPU2 configuration options. Configuration IOU0 (IIO PCIe This setting selects the PCIe port bifurcation for Br1. Options include Br1) x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16 or Auto. IOU1 (IIO PCIe This setting selects the PCIe port bifurcation for Br2.
  • Page 66 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-5. Chipset Configuration Sub-menu (Continued) Menu Option Description This setting allows you to Enable/Disable PCIe Hot Plug globally. Options PCIe Hot Plug include Disable, Enable, Auto and Manual. PCI-E Completion This setting allows you to Enable/Disable the Completion Timeout, where x Timeout (Global) is 0-3.
  • Page 67 Chapter 5: BIOS Table 5-7. SATA Configuration Sub-menu Menu Option Description SATA Controller This setting allows you to Enable or Disable the SATA device. Use this setting to select the SATA mode you desire. Options include IDE, Configure SATA as AHCI and RAID.
  • Page 68 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-9. PCIe/PCI/PnP Configuration Sub-menu Menu Option Description The installed version for the PCI Bus Driver is static displayed here for your PCI Bus Driver Version information. PCI Devices Common Settings Select Enabled to decode a 64-bit PCI device in the space above 4G Above 4G Decoding Address.
  • Page 69 Chapter 5: BIOS Table 5-9. PCIe/PCI/PnP Configuration Sub-menu (Continued) Menu Option Description Network Stack Use this submenu to configure network stack settings. Configuration This setting allows you to Enable or Disable UEFI Network Stack for your Network Stack system. If disabled, the boot option for UEFI Network Stack will not be created.
  • Page 70 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-10. SuperIO Device Configuration Sub-menu Menu Option Description This static display shows the name of the Super IO chip installed for your Super IO Chip system. Serial Port 1/2 This sub-menu allows the user the configure settings of Serial Port 1 or Configuration Serial Port 2.
  • Page 71 Chapter 5: BIOS Table 5-11. Serial Port Console Redirection Sub-menu (Continued) Menu Option Description A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even.
  • Page 72 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-11. Serial Port Console Redirection Sub-menu (Continued) Menu Option Description This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support.

  • Page 73: Event Logs Setup

    Chapter 5: BIOS Table 5-14. Intel(R) Virtual RAID on CPU Settings Sub-menu Menu Option Description Use this menu if you have RAID volumes or Intel VMD Controllers on the system to configure your Intel Virtual RAID on CPU settings. Otherwise this meun is blank. Event Logs Setup Figure 5-3.
  • Page 74 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-15. Event Logs Menu Menu Option Description Change SMBIOS This sub-menu allows you to change the SMBIOS Event Log configuration Event Log Settings settings. Change this setting to enable or disable all features of the SMBIOS SMBIOS Event Event Logging during system boot.

  • Page 75: Ipmi Setup

    Chapter 5: BIOS IPMI Setup Figure 5-4. BIOS Setup Screen 5-21...
  • Page 76 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-16. IPMI Menu Menu Option Description IPMI Firmware Revision and IPMI Status information are statically displayed at IPMI Information the top of this menu. Selecting this sub-menu displays settings for changing the SEL Event Log System Event Log...

  • Page 77: Security

    Chapter 5: BIOS Security Figure 5-5. BIOS Setup Screen Choose Security from the BIOS Setup main menu with the arrow keys to bring up the menu. Security setting options are displayed by highlighting the setting ECURITY ETUP using the arrow keys and pressing <E >.
  • Page 78 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-17. Security Menu Options (Continued) Menu Option Description This setting specifies the Secure Boot Mode used. Options include Standard and Secure Boot Custom. In Custom mode, Secure Boot variables can be configured without Mode authentication.

  • Page 79: Boot

    Chapter 5: BIOS Boot Figure 5-6. BIOS Setup Screen Choose Boot from the 256 Mb SPI Flash EEPROM with AMI® BIOS Setup Utility main menu with the arrow keys to bring up the B menu. Security setting options ETUP are displayed by highlighting the setting using the arrow keys and pressing <E >.
  • Page 80 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-18. Boot Setup Menu Options Menu Option Description This setting allows you to select the boot mode to use. Options include Legacy, Boot Mode Select UEFI or Dual. This feature allows you to specify the sequence of priority for the boot device (such as hard disk drives, USB devices, CD-ROM drives, Network drives and so on).

  • Page 81: 5-10 Save & Exit

    Chapter 5: BIOS 5-10 Save & Exit Figure 5-7. BIOS Setup Screen Choose S & E from the 256 Mb SPI Flash EEPROM with AMI® BIOS BIOS Setup Utility main menu with the arrow keys to display the S & E menu.
  • Page 82 SBI-4429P-T2N SuperBlade Module User’s Manual Table 5-19. Exit Menu Options Menu Option Description Highlight this item and hit <E > to exit the BIOS Setup utility without saving NTER Discard Changes and any changes you may have made. Any changes you have made to the BIOS Exit Setup will not take effect upon system bootup.

  • Page 83: Appendix A Updating Bios Using Kvm Console

    Appendix A Updating BIOS Using KVM Console Use the following procedure to update a module BIOS using the KVM console software. Updating the BIOS Using the KVM Console 1. Click on the graphic in the S -> S screen to launch the YSTEM YSTEM NFORMATION...
  • Page 84 SBI-4429P-T2N SuperBlade Module User’s Manual 2. In the KVM Console window, click on the V menu option from the IRTUAL TORAGE menu (Figure A-3). The V window will be displayed IRTUAL EDIA IRTUAL TORAGE (Figure A-4). Figure A-3. KVM Console Window...
  • Page 85 Appendix A: Updating BIOS Using KVM Console 3. Under the D 1 tab of the V window, select ISO File from the EVICE IRTUAL TORAGE menu if you wish to mount an ISO file (Figure A-5). OGICAL RIVE Figure A-5. Selecting ISO File to Mount an ISO File 4.
  • Page 86 SBI-4429P-T2N SuperBlade Module User’s Manual 5. After you have selected the ISO file, press the Plug In button, then the OK button to exit the V window (Figure A-7). Skip ahead to step IRTUAL TORAGE Figure A-7. Pressing the Plug In and OK Buttons for an ISO File...
  • Page 87 6. If you wish instead to download the BIOS update from a USB Flash drive, then insert the flash drive into your system and select it from the Logical Drive Type menu (Figure A-8). Figure A-8. Selecting a USB Flash Drive...
  • Page 88 SBI-4429P-T2N SuperBlade Module User’s Manual 7. After you have selected the USB flash drive file, press the Plug In button, then the OK button to exit the V window (Figure A-9). IRTUAL TORAGE Figure A-9. Pressing the Plug In and OK Buttons for an USB Flash Drive File...
  • Page 89 8. Reboot the Intel SuperBlade by selecting the P -> S OWER ONTROL OWER ESET menu option from the KVM C window. If the Intel SuperBlade is not powered ONSOLE on yet, please select S from the menu (Figure A-10). OWER Figure A-10.
  • Page 90 SBI-4429P-T2N SuperBlade Module User’s Manual When the system powers up, press your keyboard’s F11 key in order to boot into the . From this list, select the ATEN Virtual CDROM YS0J NVOKE OOTABLE EVICES command. Your Intel SuperBlade will now boot up into mounting the ISO file which...
  • Page 91 9. Close the KVM C window, or go to the Virtual Storage window (see step ONSOLE and click on Plug Out, this will remove mounting of the ISO file (Figure A-12). Figure A-12. Clicking Plug Out in the Virtual Storage Window...
  • Page 92 Disclaimer The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
