FREEZER
PMZ60BW-U
MODEL:
PMZ60BK-U
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMZ60BW-U and is the answer not in the manual?

Questions and answers

Related Manuals for Proline PMZ60BW-U

Summary of Contents for Proline PMZ60BW-U

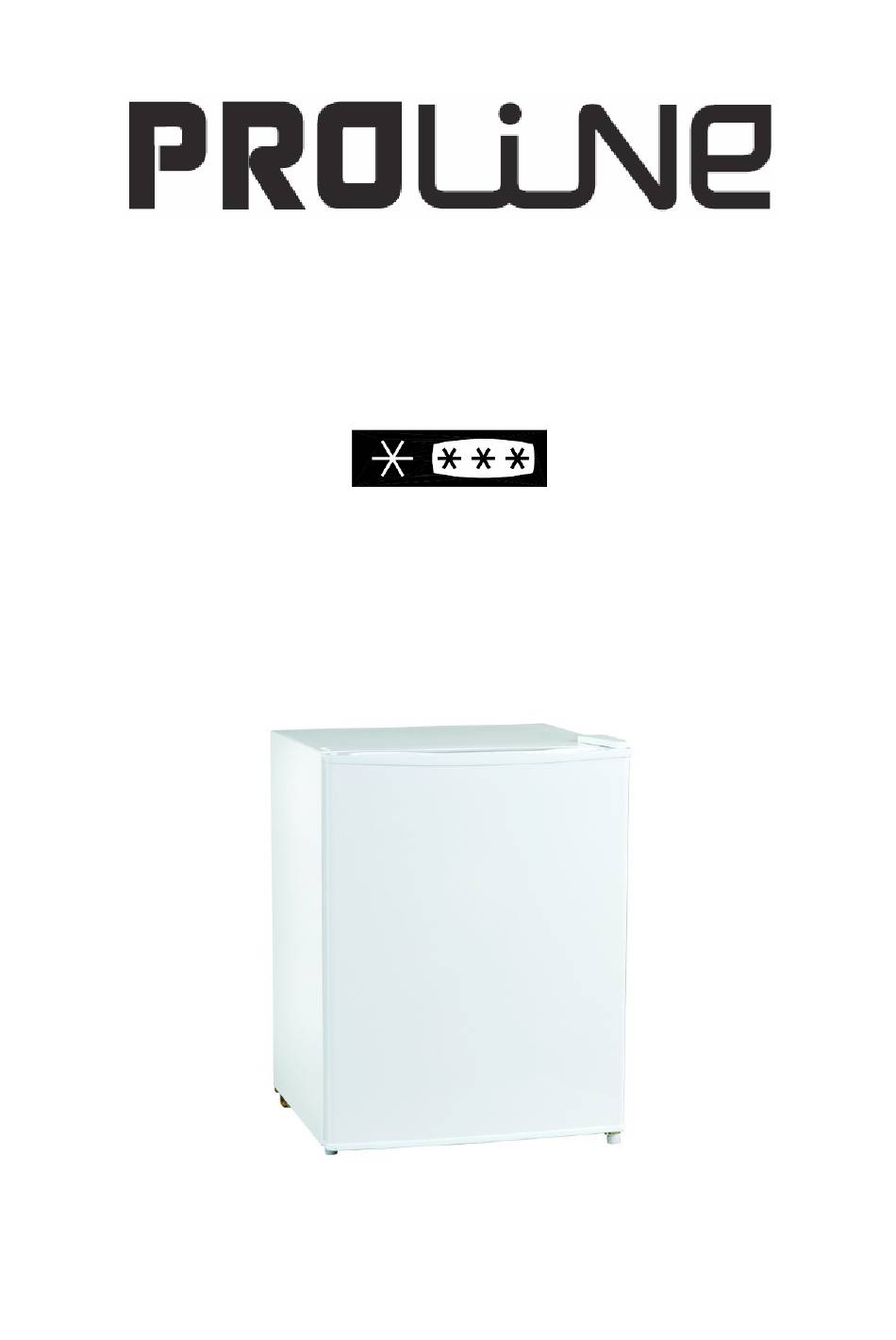

  • Page 1 FREEZER PMZ60BW-U MODEL: PMZ60BK-U INSTRUCTION MANUAL...

  • Page 2: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE 1. Thermostat Knob 2. Drip Tray 3. Wire Shelves 4. Recessed Handle 5. Door Gasket 6. Adjustable Foot 7. Fixed Foot...
  • Page 3 THANK YOU FOR PURCHASING THIS PROLINE PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Make sure the voltage marked on the rating plate matches the supply in your area. The rating plate is located on the base of this appliance. Failure to use the correct voltage will render the guarantee VOID and may damage the appliance. This appliance is intended for domestic use only, any other use may invalidate the warranty and might be dangerous.

  • Page 5: Electrical Connection (Uk Only)

    ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information. Warning: This appliance must be earthed. The appliance must be connected to a 220 - 240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a standard 13 amp 3-pin plug fitted with a 13-amp fuse.

  • Page 6: Using The Appliance

    USING THE APPLIANCE This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs. This appliance is designed to operate in ambient temperatures (surrounding air temperature) between 16℃ and 32℃ If these temperatures are exceeded i.e. colder or warmer, the appliance will not operate correctly.

  • Page 7: Installation

    INSTALLATION POSITIONING THE APPLIANCE Do not keep your appliance in a room where the temperature is likely to fall below 16℃(61 F) at night, especially in winter, as it is designed to operate in ambient temperatures between +16 and +32 ℃(61 and 90 F).
  • Page 8 GURGLING, WHOOSHING These noises are caused by circulation of refrigerant in the cooling system. It has become more pronounced since the introduction of CFC free gases. This is not a fault and will not affect the performance of your freezer. HUMMING, PURRING OR PULSATING This is the compressor motor working, as it pumps the refrigerant around the system.
  • Page 9 TO THAW FROZEN FOODS 1. Cover food loosely. 2. Thaw at room temperature. Don’t forget that thawing in a warm area encourages the growth of bacteria. 3. Always make sure there are no ice crystals in the food before cooking, particularly with meat.

  • Page 10: Power Failure

    POWER FAILURE If there is a power failure for a short time less than 12 hours keep the door closed.Frozen food should not be affected if the failure lasts for less than 12 hours. Extra protection can be given by covering the appliance with two or three thick blankets.
  • Page 11 Reversing The Door Reversing the door may make installation more convenient. The appliance must be tilted backwards and supported in order to carry this out; it is therefore advisable to get an assistant to help during this procedure. Take care when fitting and tightening screws.

  • Page 12: Maintenance

    Troubleshooting Before calling for service please check the following points. The freezer is not working Check the plug is inserted correctly into the wall socket. Check there is power to the wall socket by plugging in another appliance, if the other appliance works check the fuse in the freezer plug.
  • Page 13 Do’s and Don’ts Do- Clean and defrost your appliance regularly (See “Defrosting The Freezer”) Do- Wrap raw meat and poultry loosely in polythene or aluminium foil. This prevents drying. Do- Wrap fish and offal in polythene bags. Do- Check contents of the compartments every so often. Do- Store commercially prepared food in accordance with the instructions given on the packets.
  • Page 14 Technical data Brand Proline Appliance type Freezer Star rating Total gross volume Total storage volume Freezer storage volume Freezing capacity 3.0kg/24h Maximum rated wattage of lamp Rated power input Rated current 0.65A Climate Class + Ambient Range N (+16℃ to +32℃)

  • Page 15: Important Disposal Instructions

    IMPORTANT DISPOSAL INSTRUCTIONS As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment.
