Deskset Installation

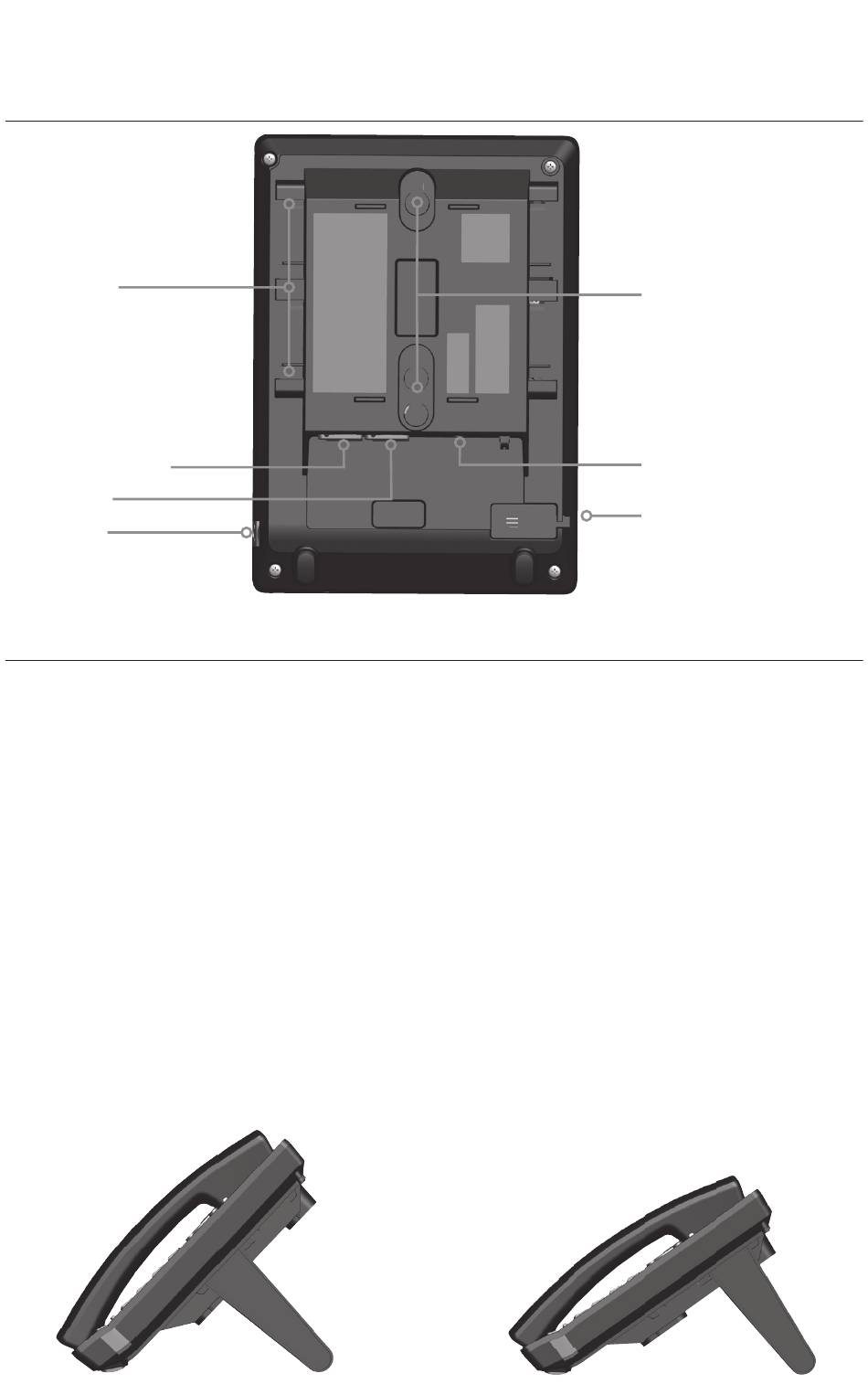

Rear panel features

Deskset
stand slots
Ethernet port
PC port
Corded
headset jack

Connecting the phone

IMPORTANT INFORMATION
1. If you do not connect the deskset to a PoE-capable network router or switch,
use only a compatible VTech power adapter (purchased separately from your
distributor or dealer).
2. The power adapter is intended to be correctly oriented in a vertical or floor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
To install the phone:
1. If you plan to place the phone on a flat surface, attach the stand. Line up the
tabs on the stand with the slots on the rear of the phone. Two sets of slots
allow you to attach the stand at either a 45-degree or 35-degree angle.
2. Plug the end of the coiled handset cord into the Handset jack on the rear of the
phone. Secure the cord by routing it through the slot and underneath the tab.
45° 35°
17
Wall mounting slots
Power jack
Handset jack
