  • Page 1: Application Guide

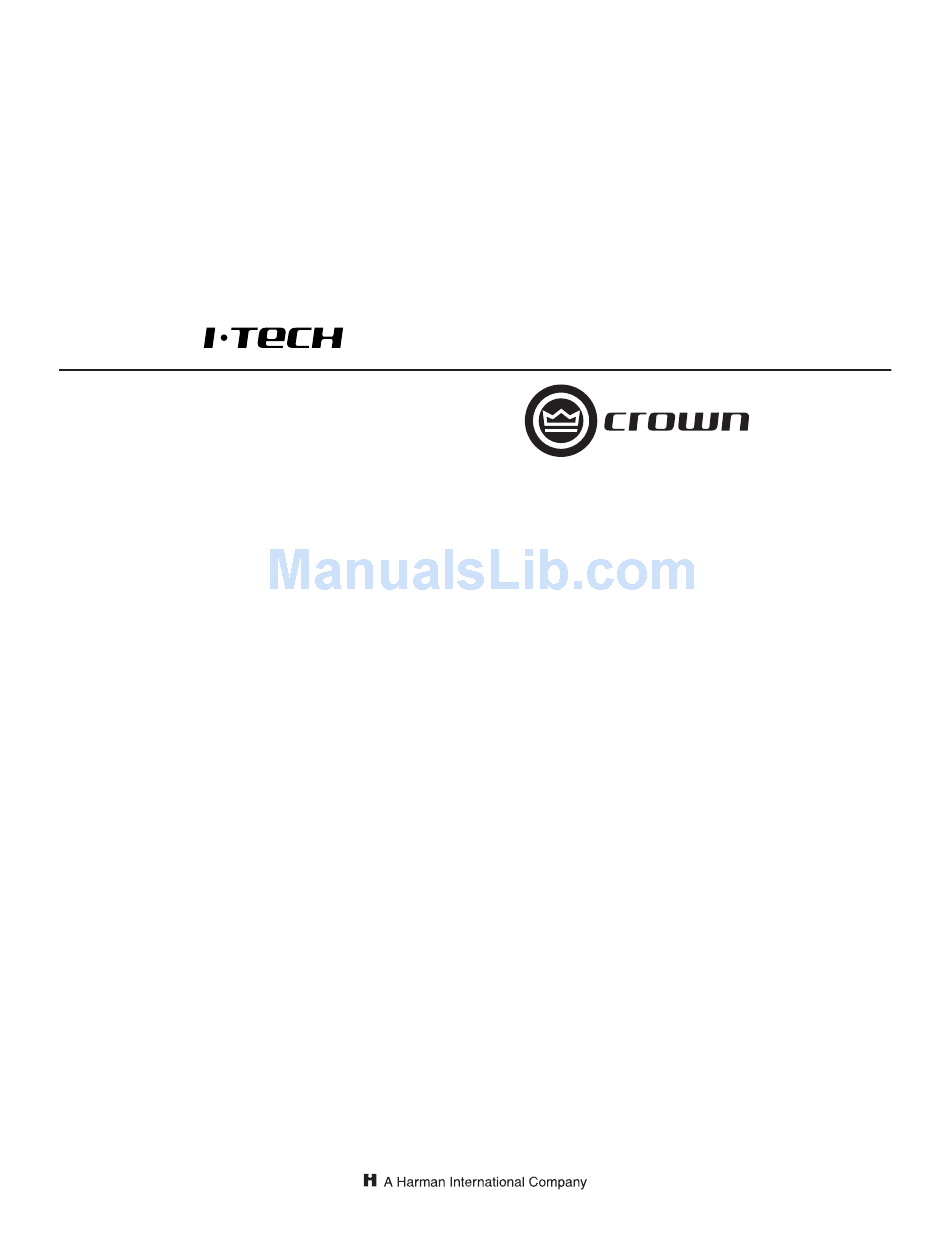

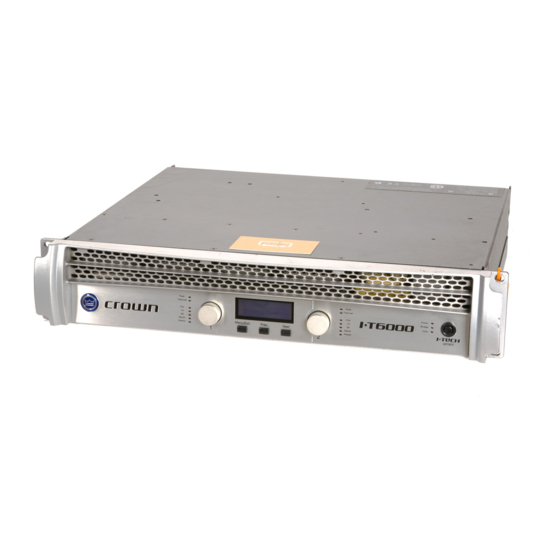

    I-Tech Application Guide Application Guide © 2005 by Crown Audio Inc., 1718 W. Mishawaka Rd., Elkhart, IN 46517-9439 U.S.A. Telephone: 574-294-8000. Fax: 574-294-8329. www.crownaudio.com ® ® Trademark Notice: Grounded Bridge™ is a trademark, and Crown and Macro-Tech are registered trademarks of Crown International.

  • Page 2: Introduction

    This application guide provides useful information designed to help you best use your ® new Crown I-Tech Series amplifi er. It is designed to complement your amplifi er’s Opera- tion Manual, which describes the specifi c features and specifi cations of your amplifi er.

  • Page 3: Table Of Contents

    I-Tech Application Guide Table of Contents Introduction ...2 1 Power and Thermal Information ...5 1.1 Output Power ...5 1.2 AC Power Draw and Thermal Dissipation ...5 1.3 AC Power Distribution ...6 2 Wiring Recommendations ...6 2.1 Input Wiring ...6 2.2 Output Wiring ...6 2.3 Network Wiring ...8 3 I-Tech Settings ...9 3.1 Setting Sensitivity ...9...
  • Page 4 I-Tech Application Guide Menu/Exit Prev Next Application Guide...

  • Page 5: Power And Thermal Information

    Typical of program material with severe clipping. 120-240VAC 50 to 60 Hz. I-T4000 120VAC 208VAC Watts Out Watts Out Per 1A Per 1A Line Current Amp Line Line Current Amp Line Load 120VAC Current 208VAC Current 0.95 8 Ohms/Ch. 59.6 94.6...

  • Page 6: Ac Power Distribution

    I-Tech’s innovative PFC technology allows I-Tech to draw current from the mains in a more controlled and effi cient way providing greater power on a single 20 amp breaker. A single I-tech amplifi er can be run on a dedicated 20-amp circuit. A profes- sional power distribution system is ideal when using a rack or multiple racks of I-Tech amplifi...
  • Page 7 Section 2: Wiring Recommendations Figures 2.3 through 2.6 show pin assignments for both binding post and Speakon con- nection. Figure 2.3 Output Wiring with 5-Way Binding Post Connectors Figure 2.4 Stereo Output Wiring with Both Speakon Connectors Channel 1 Loudspeaker Figure 2.5 Stereo Output Wiring with a Single Speakon...

  • Page 8: Network Wiring

    2.3 Network Wiring To take advantage of the many features available in your I-Tech amplifi er via the IQ Network, you can establish a simple network connection between a PC and your I- Tech amplifi er. Standard 100Mb Ethernet hardware and network protocol apply. Figure 2.7 shows a connection between a PC and a single I-Tech amplifi...

  • Page 9: Tech Settings

    Section 3: I-Tech Settings 3 I-Tech Settings I-TechSeries amplifi ers allow unprecedented control over amplifi er and system settings within the amplifi er. While a full discussion of all available settings is beyond the scope of this guide, a few key settings are described, along with instructions on storing and recalling presets, and loading settings into the amplifi...

  • Page 10: Communicating With I-Tech

    3.3 Communicating with I-Tech One of the most convenient features within I-Tech amplifi ers is the ability to load ampli- fi er settings, including DSP settings, into your amplifi er, and to save settings as presets via IQwic IQ Network software. This section provides a quick overview of the IQwic software and the procedures for loading and saving settings with IQwic.

  • Page 11: Engage A Dataframe

    Section 3: I-Tech Settings A series of screens will step you through choosing a network card, discovering and addressing components on the network, and troubleshooting networking errors. For further help with setting up your TCP/IQ network, refer to the help fi les in IQwic soft- ware.

  • Page 12: Presets

    3.4 Presets 3.4.1 Save Settings as a Preset If you wish, you can store the settings inside your I-Tech amplifi er for easy recall by saving them as a preset. To store a preset: • Open the Component Control Panel of the amplifi er in IQwic. •...

  • Page 13: Loading Firmware

    Preset Prompt 3.5 Loading Firmware Your I-Tech amplifi er can be easily updated with the lastest fi rmware as new versions are released by Crown. Use the TCP/IQ Utility program to load fi rmware into your amplifi er. 3.5.1 TCP/IQ Utility TCP/IQ Utility allows you to update the fi...

  • Page 14: Front Panel Firmware

    Note: The following procedures assume you have already established TCP/IQ network communications between your PC and your I-Tech amplifi er(s). Refer to the help fi les in IQwic software for help in setting up your IQ Network. Before you begin, save a copy of provided fi rmware fi les to a local disk. There are different fi...

  • Page 15: Tech And Jbl Ver Tec

    This is perfectly permissible if you use the available signal processing to limit each amp’s channel to a safe output level for its bandpass. This may make it easier to reconfi gure your amplifi er inventory as needed.
  • Page 16 Section 4: I-Tech and JBL VerTec Figure 4.1 4-Element VT4887 and 2-Element VT4881 with 2 I-Tech Application Guide...
  • Page 17 Section 4: I-Tech and JBL VerTec Figure 4.2 4-Element VT4888 with 3 I-Tech Application Guide...
  • Page 18 Section 4: I-Tech and JBL VerTec Figure 4.3 4-Element VT4888 with 4 I-Tech Application Guide...
  • Page 19 Section 4: I-Tech and JBL VerTec Figure 4.4 6-Element VT4888 with 4 I-Tech Application Guide...
  • Page 20 Section 4: I-Tech and JBL VerTec Figure 4.5 4-Element VT489 with 3 I-Tech Application Guide...
  • Page 21 Section 4: I-Tech and JBL VerTec Figure 4.6 4-Element VT4889 with 4 I-Tech Application Guide...
  • Page 22 Section 4: I-Tech and JBL VerTec Figure 4.7 6-Element VT4889 with 4 I-Tech Application Guide...
  • Page 23 Section 4: I-Tech and JBL VerTec Figure 4.8 8-Element VT4889 with 4 I-Tech Application Guide...
  • Page 24 Connect amplifier Ch. 2 pins 1± to another loudspeaker’s Speakon pins 1± and pins 2± in parallel. Connect two VT8880 boxes in parallel (two boxes per amplifier channel). VLF 4 Amp pins 1± VLF 4 Amp pins 1± Connect amplifier Ch. 1 pins 1± to loudspeaker Speakon pins 1±.

  • Page 25: I-Tech Sensitivity Charts

    Appendix Appendix I-Tech Sensitivity Charts Amplifi er Application Guide...
  • Page 26 Appendix Note: position of the max input switch affects possible sensitivity and gain settings. Amplifi er Application Guide...
  • Page 27 Appendix Note: position of the max input switch affects possible sensitivity and gain settings. Amplifi er Application Guide...

  • Page 28: Frequently Asked Questions (Faqs)

    A. No, Class -I amplifi ers are a fundamentally different design from all other amplifi er classes on the market. Crown has patented the technology behind Class-I amplifi ers and is the only manufacturer in the world building this design.
  • Page 29 A. No. The DSP is an integral part of the I-Tech, not just bolt-on signal processing. By integrating the DSP into I-Tech, Crown engineers have been able to dramatically improve signal-to-noise, and use this integration to allow intelligent control of amplifi er operation.
  • Page 30 Q. If I use I-Tech and Macro-Tech A. There is a ~1 ms difference between I-Tech and Macro-Tech amplifi ers, as well as any other Crown amplifi er using the Grounded Bridge Q. What is latency, and does I-Tech have a fi xed latency? A.
  • Page 31 Q. What happens if the amp loses digital signal? A. The analog connections can be confi gured as backup and the amplifi er will switch to those connections auto- matically.

  • Page 32: Website Links

    Following is a list of links to suggested pages and documents for further information about I-Tech Series amplifi ers and their use. I-Tech Website: http://www.crownaudio.com/itech I-Tech Data Sheet: http://www.crownaudio.com/itech/pdf/137251.pdf Crown Amplifi er Application Guide: http://www.crownaudio.com/pdf/133472.pdf Crown Amplifi er Technical Information (technical/white papers): http://www.crownaudio.com/amp_htm/ampinfo.htm Ethernet Overview (Peak Audio / CobraNet Website): http://www.peakaudio.com/CobraNet/Ethernet_overview.htm TCP/IQ Network Setup (IQ Network Website): http://www.iqaudiosystems.com/support/tcpiq1.htm CobraNet Primer (IQ Network Website): http://www.iqaudiosystems.com/support/CobraNetPrimer.htm...

  • Page 33: Appendix

    Appendix Notes Amplifi er Application Guide...
