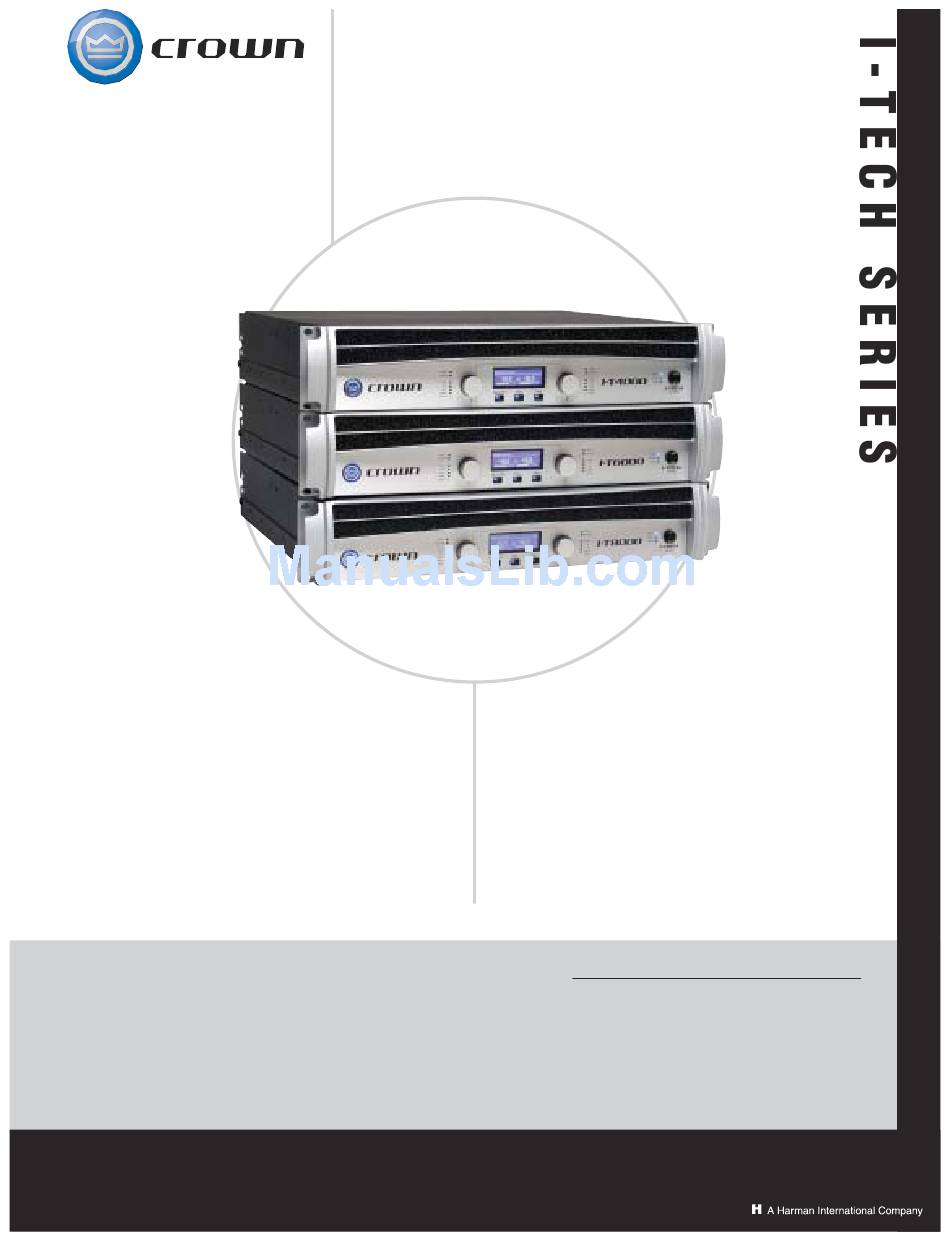

Crown I-T4000 Specification Sheet

Crown audio i-tech series stereo amplifier specification sheet
Hide thumbs Also See for I-T4000:

Advertisement

Quick Links

E X C E L L E N C E
Features
• Global Power Supply works anywhere in the world.
• High power density, up to 8000 watts in a 2U chassis.
• Highest output voltage in the industry (200V peak)
provides clean transient peaks.
• Onboard DSP with 24-bit, 96 kHz Cirrus Logic A/D
and D/A converters.
• Comprehensive array of indicators provide accurate
diagnostics: Power, Data, Bridge, along with Ready,
Signal, Clip, Thermal and Fault for each channel.
• Front-panel control screen with advanced diagnostics and
status information. All controls are set from the front panel.
• AES/EBU digital audio input. Ethernet connector accepts
standard network cables for TCP/IQ networking. CobraNet
input available in optional CN models (coming soon).
Analog and digital thru connectors.
®
T
he Crown
I-Tech Series offers amazing power, light weight and ease
of use for touring sound and installed sound applications. Onboard
DSP provides a wide array of signal processing, greatly reducing the
need for rack components and rack wiring. Onboard DSP features 24-
bit, 96 kHz A/D and D/A converters.
All models are compatible with the IQ
networking. Digital audio and IQ control signals connect to the amp
via a single cable (in CobraNet™-ready models). Pushbutton DSP
presets simplify the setup for various loudspeaker arrays.
The Global Power Supply works anywhere in the world, and offers PFC
(Power Factor Correction). It is a switching power supply for reduced
weight. I-Tech amplifiers have the highest output voltage in the industry
(200V peak), which provides clean transient peaks.
2-ohm
4-ohm
Stereo
Stereo
(per channel)
(per channel)
I-T4000
1800W 2000W 1250W
I-T6000
2500W 3000W 1500W
I-T8000
3500W 4000W 2100W
Guaranteed minimum power output per channel, 20 Hz to 20 kHz, <0.35%
true THD, both channels driven. Rated power not part-tolerance dependent.
®
Network and TCP/IQ™
Power Output*
8-ohm
4-ohm
8-ohm
Stereo
Bridge-
Bridge-
Mono
Mono
(per channel)
3600W
4000W
5000W
6000W
7000W
8000W

Advertisement

loading
Need help?

Need help?

Do you have a question about the I-T4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Crown I-T4000

  • Page 1 8-ohm Stereo Stereo Stereo (per channel) (per channel) (per channel) I-T4000 1800W 2000W 1250W I-T6000 2500W 3000W 1500W I-T8000 3500W 4000W 2100W Guaranteed minimum power output per channel, 20 Hz to 20 kHz, <0.35% true THD, both channels driven. Rated power not part-tolerance dependent.
  • Page 2: Specifications

    Specifications subject to change without prior notice. Latest information available at www.crownaudio.com. Crown, Crown Audio and IQ are registered trademarks; TCP/IQ and IQwic are trademarks of Crown International. Other trademarks are the property of their respective owners. Printed in U.S.A.
