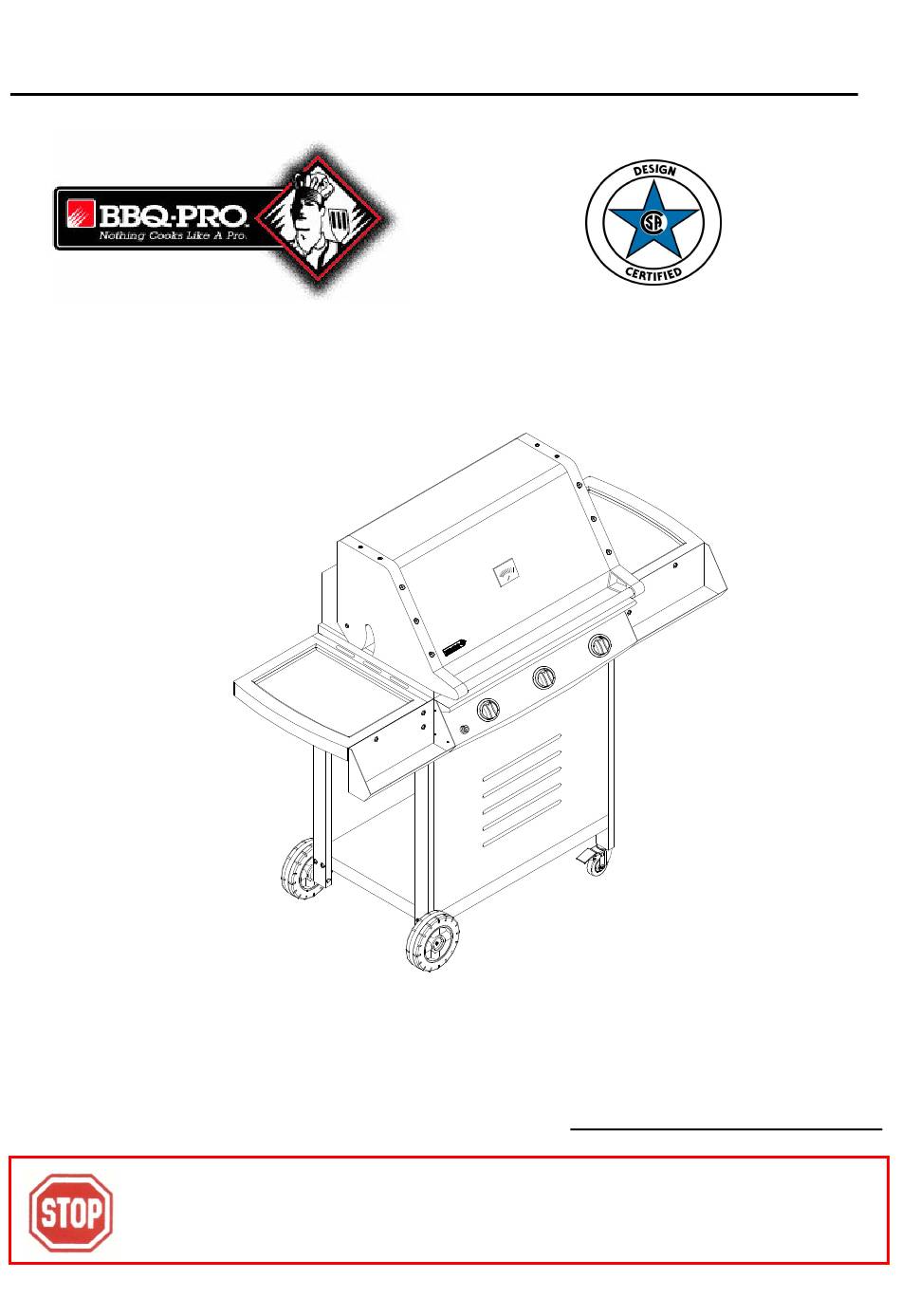

- Page 1 ASSEMBLY & OPERATING INSTRUCTIONS MODEL# 720-0267 FOR OUTDOOR USE ONLY PLEASE CONTACT 1-866-984-7455 FOR ASSISTANCE DO NOT RETURN TO PLACE OF PURCHASE...
-
Page 2: Table Of Contents
TABLE of CONTENTS SECTION ONE SECTION FIVE Importance…………………………….…1 Care and maintenance ………………….18 Message to our consumers…………….2 Lighting Illustration……………………….19 Precaution………………………………..3 To match light the grill……………………20 Placement of the grill……………………5 Troubleshooting ………………………… 21 SECTION TWO SECTION SIX Assembly instructions ………………...6 Exploded view…………………………….22 Battery Assemble……………………..13 Parts list …………………………………... -
Page 3: Importance
IMPORTANCE *** WARNING *** FOR YOUR SAFETY If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid. 4. If odor continues, immediately call your gas supplier or your fire department. FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. -
Page 4: Message To Our Consumers
MESSAGE TO OUR CONSUMERS Thank you for selecting our stainless steel gas grill. Because this appliance contains features which may not found on other grill, we recommend that you read this entire booklet before your first use. Keep it in handy place as it has answers to questions that may occur during future use. -
Page 5: Precaution
PRECAUTIONS CALIFORNIA PROPOSITION 65-WARNING WARNING The burning of gas fuel generates some byproducts, Do not try to light this appliance without first which are on the list of substances that are known by reading the “LIGHTING INSTRUCTIONS” the State of California to cause cancer or section in this manual. - Page 6 PRECAUTIONS O NOT STORE ITEMS OF INTEREST TO Moist or damp potholders on hot surfaces may CHILDREN AROUND OR BELOW THE GRILL cause burns from steam. Do not use a towel or OR IN THE CART. NEVER ALLOW CHILDREN bulky cloth in place or potholders. Do not let TO CRAWL INSIDE OF THE CART.
-
Page 7: Placement Of The Grill
PRECAUTIONS Do not use the grill for cooking excessively fatty This stainless steel grill is designed for optimum meats or products which promote flare-ups. Do performance without the use of briquettes. Do not operate grill under unprotected place briquettes on the radiant as this will block off combustible construction. -
Page 8: Assembly Instructions
ASSEMBLE INSTRUCTIONS PLEASE READ THE INSTURCTION CAREFULLY AND FOLLOW STEP BY STEP Propane Tank is not included Philips head Screwdriver (not provided) The following hardware is provided Speci f i cat i on Q uant i t y Descr i pt i on( SCALE 1: 1) I t em cr ossed r ound head scr ew 8pcs... - Page 9 Caution: Please lock casters during installation process STEP 1: Remove side panel legs (L+R), 2 rubber casters with brake and 2 plastic wheels from carton. Remove hardware attached to panel legs to secure 2 plastic wheels with 1/4”hex nuts & 1/4”washers. Then screw in regular casters with brake on opposite panel legs as shown in figure below.
- Page 10 STEP 3: Assemble front panel to side panel legs with 4 pieces crossed round head screws (1/4” x 10mm) and 1/4” washers as shown figure below. STEP 4: Attached and secure the cart frame crossed bar to the top back of both side panels by using 4 pieces (1/4”...
- Page 11 STEP 5: Remove grill head unit from carton. Place onto cart from above as shown on diagram (below). And secure to cart frame. Caution!! Head unit is heavy, to avoid injury, we strongly recommend 2 or more persons for this step. STEP 6: Secure the head unit to cart with 4 pieces crossed round head screws (1/4”...
- Page 12 STEP 7: Attach and secure the nip clip and the regulator hose to the right panel leg with 1 piece crossed round head screw (1/4”x10mm) and 1/4” washer as below shown. STEP 8:Attach left side shelf with 4 pieces crossed round head screws (1/4” x 10mm) and 1/4”...
- Page 13 Step 9: Attach and secure the condiment tray to control panel with 1 piece crossed round head screw (5/32” x 8mm) & 5/32” washer. Repeat the above step to install the condiment tray on right side shelf. STEP 10: Place grease dip into slide rails under firebox from back of grill. Place Grease tray into rails on grease slide.
- Page 14 STEP 11: Place L.P tank in tank seat hole and secure with retention wing-bolt.
-
Page 15: Battery Assemble
BATTERY ASSEMBLE 1. Unscrew the ignition battery cap. (Found at far-left of control panel) 2. Insert battery into ignition box with the positive terminal facing outward. 3. Replace the ignition battery cap after the battery has been installed. PROPANE TANK ASSEMBLE Attach regulator to prop-tank turning the regulator noble, clockwise, and by hand until tight as shown in figure below. -
Page 16: Gas Hook-Up
GAS HOOK-UP NEVER CONNECT AN UNREGULATED GAS L.P. GAS HOOK-UP SUPPLY LINE TO THE APPLIANCE. USE THE Ensure that the black plastic grommets on the LP REGULATOR/HOSE ASSEMBLY SUPPLIED. cylinder valve are in place and that the hose does This is a liquid propane configured grill. Do not not come into contact with the grease tray or the attempt to use a natural gas supply unless the grill grill head. -
Page 17: Leak Testing
To disconnect L.P. gas cylinder: ALWAYS CHECK LEAKS AFTER 1. Turn the burner valves off. EVERY L.P. TANK CHANGE 2. Turn the tank valve off fully (turn clockwise to stop). Check all gas supply fittings for leaks before 3. Detach the regulator assembly from the each use. -
Page 18: Operation Instructions
OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL NOTE: The hot grill sears the food, sealing in the Each main burner is rated at 11,000 Btu/hr. The juices. The longer the preheat, the faster the main grill burners encompass the entire cooking meat browns and the darker the grill marks. -
Page 19: Grill Lighting Instruction
GRILL LIGHTING INSTRUCTIONS TO MATCH LIGHT THE GRILL WARNING: IMPORTANT! If the burner will not light after several attempts then BEFORE LIGHTING… the burner can be match lit. Inspect the gas supply hose prior to turning the gas Lighting rod-Here is your instruction: “ON”. -
Page 20: Care And Maintenance
CARE AND MAINTENANCE STAINLESS STEEL ENSURE THAT THE GAS SUPPLY AND THE KNOBS The grill is made from non-rusting and non-magnetic ARE IN THE “OFF” POSITION. MAKE SURE THE stainless steel. There are many different stainless RANGETOP BURNER IS COOL BEFORE REMOVAL. steel cleaners available. -
Page 21: Lighting Illustration
LIGHTING ILLUSTRATIONS Main & Side Burner Lighting Illustration Step 1. Make sure the Lid is open Step 2. Push and turn one of main knobs to HI position Step 3. You may need 3 or 4 trials to light the burner. After the burner is lit, adjust the knob as desired... -
Page 22: To Match Light The Grill
TO MATCH LIGHT THE GRILL If the burner will not light after several attempts then the burner can be match lit. If you’ve just attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. Keep your face and hands as far away from the grill as possible. -
Page 23: Troubleshooting
TROUBLE SHOOTING SPIDER AND INSECT WARNING!!! WHEN TO LOOK FOR SPIDERS Spiders and insects can nest in the burners of You should inspect the burners at least once a year this or any other grill, and cause the gas to flow or immediately after any of the following conditions from the front of the burner. -
Page 24: Exploded View
EXPLODED VIEW... -
Page 25: Parts List
PARTS LIST REF# DESCRIPTION Q’TY REF# DESCRIPTION Q’TY Warming Rack Name Plate Cooking Grid Regulator LP Flame Tamer Manifold Main Burner Front Baffle Bowl Assembly Gas Valve, Main Burner Grease Tray Battery ignition Box Grease Slide Ignition line Cart Frame Cross Bar Control Panel Left Cart Panel Legs Control Knob Seat ( Bezel) -
Page 26: Ordering Parts
If dealer service is conversion. not available, contact: Nexgrill Industries, Inc. Different orifices must be installed when converting customer service 1-866-984-7488 or fax from one type of gas to another. You will also need 909-598-7699. -
Page 27: Grillcooking Chart
GRILLCOOKING CHART FOOD WEIGHT OR FLAME APPROXIMATE SPECIAL INSTRUCTIONS THICKNESS SIZE TIME AND TIPS VEGETABLES Slice. Dot with butter or margarine. Wrap in heavy-duty foil. Grill, turning occasionally. Fresh Beets Medium 12 to 20 minutes Grill, turning once. Brush Carrots occasionally with melted butter or Turnips margarine. - Page 28 FOOD WEIGHT FLAME APPROXIMATE SPECIAL OR THICKNESS SIZE TIME INSTRUCTIONS AND TIPS Chops & Steaks Rare 1 inch High 10 to 15 minutes Remove excess fat from edges. Slash remaining fat at 2 inch intervals. Grill, turning once. 1-1/2 inch High 14 to 18 minutes Medium...
-
Page 29: Grill Recipe Suggestions
GRILL RECIPE SUGGESTIONS BBQ SALMON Half hour before cooking, turn the TANGY SEAFOOD KABOBS 2 large salmon steaks burner to the grill on full. Drain seafood 1 lb. Large shrimp, shelled & 2 tbs. Oil reserving marinade. On each of twelve deveined Salt &... - Page 30 Preheat grill. Combine cheese, In blender, process 1/3 c. water, Pound flank steak to ¼ inch condensed soup, milk, BBQ onion, soy sauce, 2 tsp. oil and thickness or flatten chicken sauce, oregano, salt the next 8 ingredients until breasts. Mix oil, lime juice and pepper in a large mixing bowl.
- Page 31 minutes. Cook for approximately 3 CHICKEN TANDOORI STYLE rack and to its center, penetrate hours. The basting sauce combined large chicken thighs the second rib with the pointed with turkey drippings drumsticks end of the spit and push it 1 c. plain nonfat yogurt between the meat.
-
Page 32: Warranty
Our obligation under this warranty is limited to repair or replacement, at our option, of the product during the warranty period. The extent of any liability of Nexgrill Industries, Inc. under this warranty is limited to repair or replacement. This warranty does not cover normal wear of parts, damage resulting from any of the following: negligent use or misuse of the product, use on improper fuel/gas supply, use contrary to operating instructions, or alteration by any person other than our factory service center.
