8.3 Network

8.3.1 IP Settings

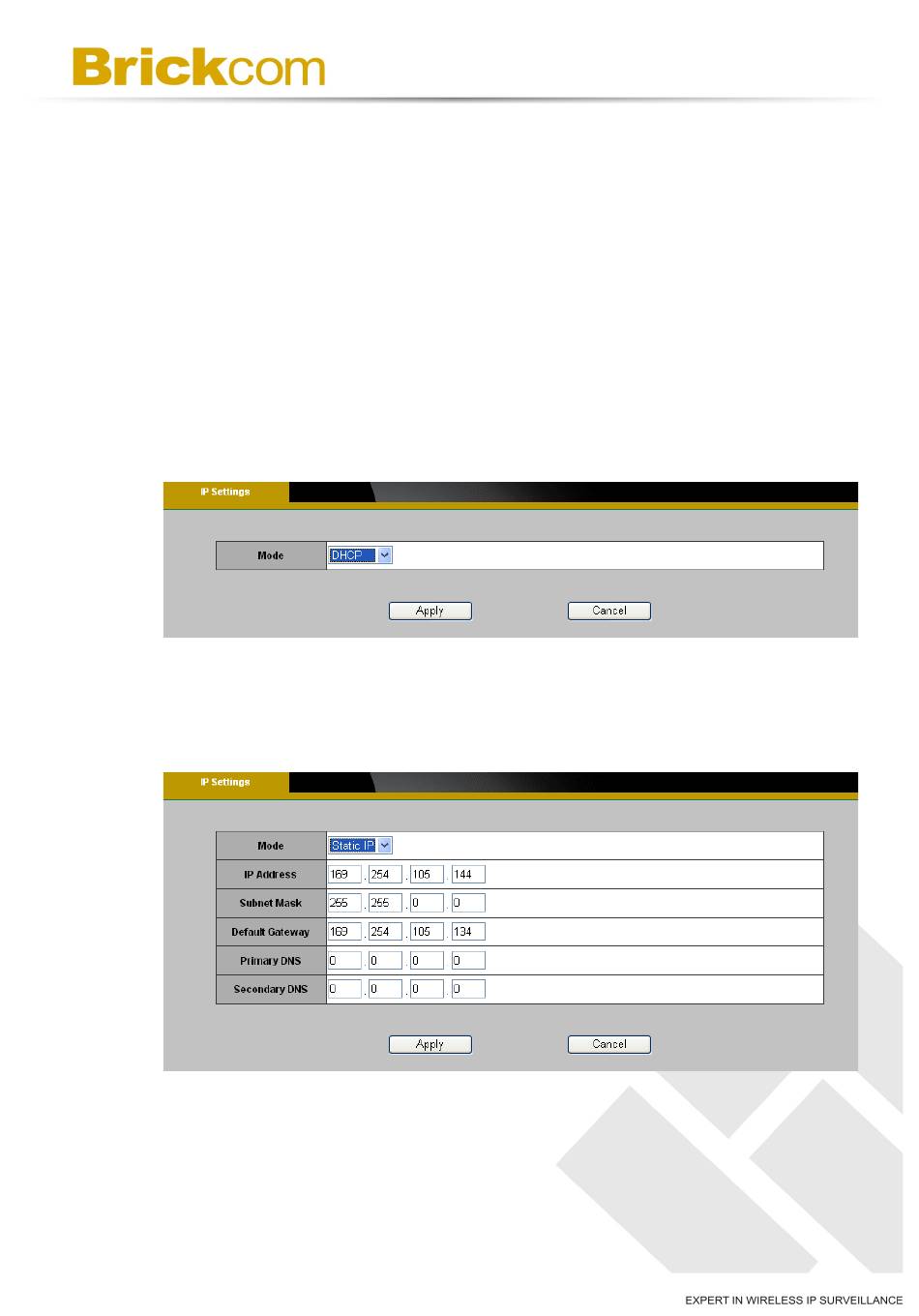

This section explains how to configure a wired network connection for the
camera. There are several ways to setup the camera over the Internet: (1)
obtain an available dynamic IP address assigned by a DHCP server, (2) use a
static IP, or use PPPoE (Point-to-point over Ethernet). Select the desire setup
mode from the IP settings drop-down menu.
a. DHCP –If this option is selected, the camera will automatically obtain
an available dynamic IP address from the DHCP server each time it
connects to the LAN.
b. Static IP - Select this option to manually assign a static IP address to
the camera. Enter the static IP address, Subnet mask, Default Gateway,
Primary and Secondary DNS provided by the ISP.
45
