B. Install Camera with Mount Kit

1) Make a cable entry hole on the wall/ ceiling to insert the cable(s).

2) Mount the Speed Dome camera according to the "Speed Dome

Mounting Accessories Installation Guide".

3) Attach the waterproof rubber to the selected mount kit.

4) Route the Ethernet and I/O cables through the top holder and join

the selected mount kit with supplied screws and washers. Then

adjust the Waterproof Rubber over the joint.

5) Connect the Ethernet and I/O cables and hook the safety wired to

the camera.

6) Attach the camera to the top cover with the supplied screw and

washers.

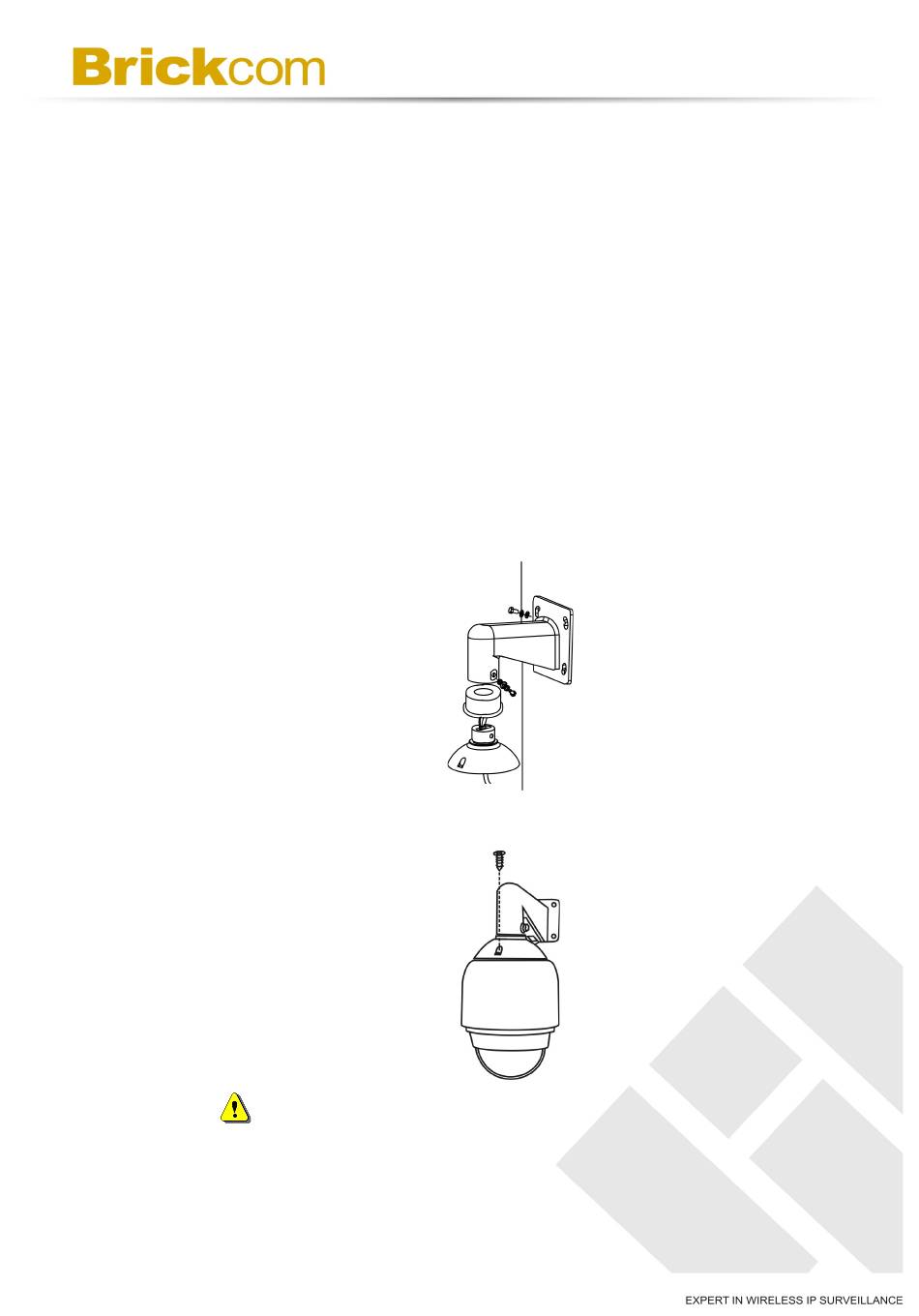

Wall Mounting: Pendant Mount (mounting example)

NOTE - Refer to the mounting instruction in the "Speed Dome

Mounting Accessories Installation Guide" for more details.
