R-922STM
1000 W
(IEC 60705)
MICROWAVE OVEN WITH GRILL AND CONVECTION
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified
so that it operates with the door open.
Advertisement
Table of Contents
Related Manuals for Sharp R-922STM
Summary of Contents for Sharp R-922STM

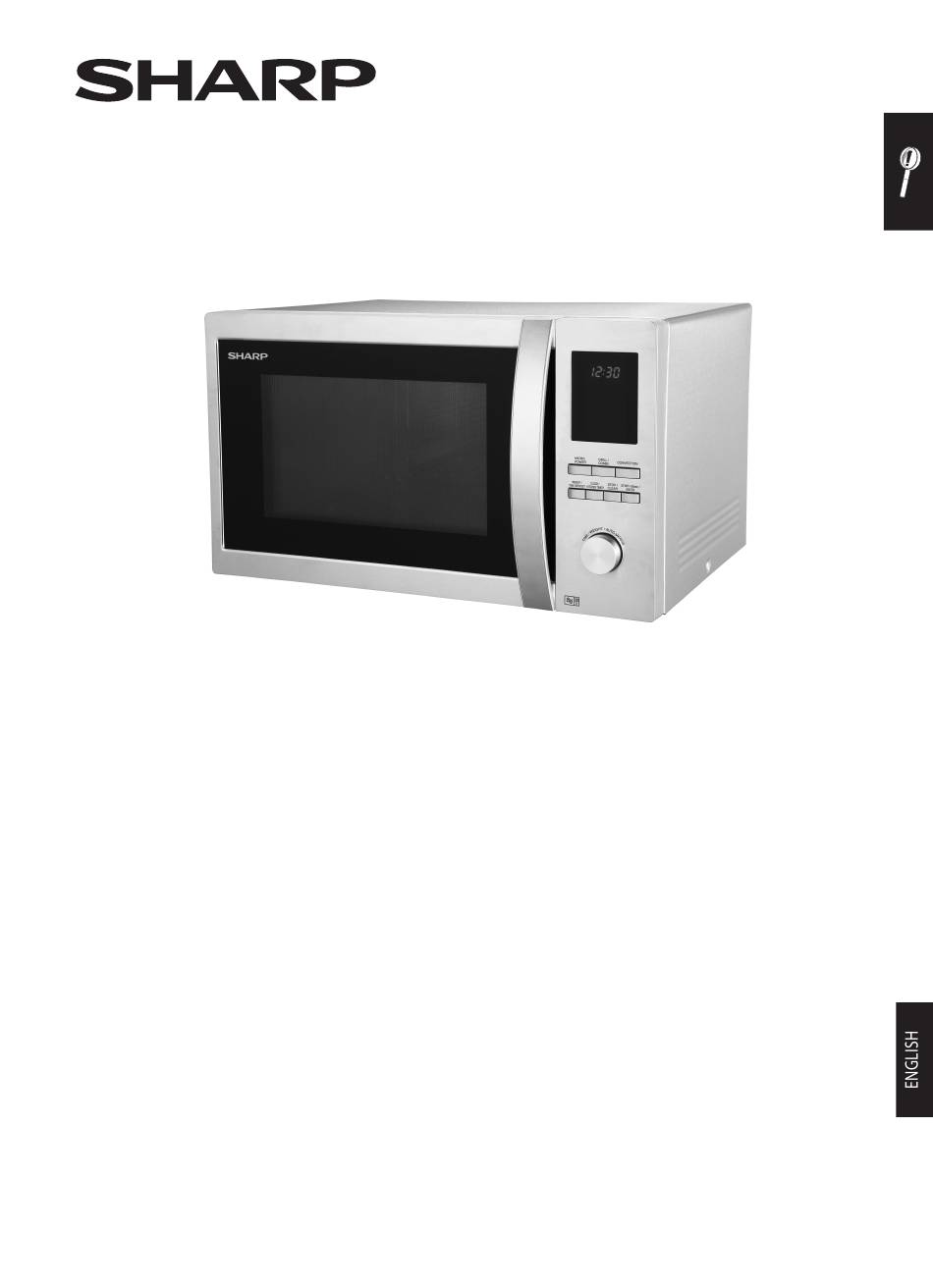

- Page 1 Important R-922STM 1000 W (IEC 60705) MICROWAVE OVEN WITH GRILL AND CONVECTION OPERATION MANUAL This operation manual contains important information which you should read carefully before using your microwave oven. IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified...
-
Page 2: Operation Manual
If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities. -
Page 3: Heating Category & How Your Oven Works
HEATING CATEGORY The heating category (a letter A to E) developed by MAFF (Ministry of Agriculture, Microwave output power in Watts (based on Fisheries and Food) with microwave oven and food manufacturers indicates the international (IEC 60705) ability of the oven to heat small quantities of food (up to 500g [ I lb 2oz]). It does standard). -
Page 4: Table Of Contents
CARE AND CLEANING ................................................ 18 TROUBLESHOOTING ..............................................18-19 TO REPLACE THE MAINS PLUG ............................................19 CALLING FOR SERVICE ............................................... 20 GUARANTEE ................................................... 20 SPECIFICATIONS Model name: R-922STM AC Line Voltage : 230-240V~, 50Hz single phase Distribution line fuse/circuit breaker : 20A AC Power required: Microwave... -
Page 5: Oven And Accessories
Never touch the grill when it is hot. NOTE: When you order accessories, please mention two items: part 20. Rack name and model name to your dealer or SHARP authorised service agent. NOTES: • The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not damaged. -
Page 6: Control Panel
CONTROL PANEL DIGITAL DISPLAY and INDICATORS MICROWAVE indicator CONVECTION indicator GRILL indicator DEFROST indicator CHILD LOCK indicator AUTO MENU indicator TEMPERATURE indicator WEIGHT indicator TEMPERATURE PROGRESS indicator The segments gradually light up to show the temperature reached in CONVECTION mode. Each segment represents 10°C of the set temperature level (For example, the first one indicates 150°C and the last one 240°C). -
Page 7: Important Safety Instructions
Place or mount the oven so that a special cord. The exchange must be the bottom of the oven is 85 cm or more made by an authorised SHARP service above the floor. Keep children away agent. from the door to prevent them burning 12. - Page 8 7. Do not store or use the oven outdoors. 22. Do not use harsh abrasive cleaners 8. Clean the waveguide cover, the oven or sharp metal scrapers to clean the cavity, the turntable and turntable glass on the oven door since they can support after use.
- Page 9 4. Always stand back from the oven door yourself or allow anyone who is not an when opening it to avoid burns from electrician authorised by SHARP to do so. escaping steam and heat. If the oven lamp fails, please consult your 5.
- Page 10 IMPORTANT SAFETY INSTRUCTIONS NOTE: Other warnings If you are unsure how to connect your oven, 1. Never modify the oven in any way. 2. Do not move the oven while it is in please consult an authorised, qualified operation. electrician. Neither the manufacturer nor the dealer can accept any liability for damage 3.
-
Page 11: Installation
• If the power supply cord is damaged, it • A minimum space of 20cm is required must be replaced by a Sharp approved between the oven and any adjacent walls. service facility or a similarly qualified •... -
Page 12: Before Operation
BEFORE OPERATION Plug in the oven. The oven display will display: “0:00”, an audible signal will sound once. This model has a clock function and the oven uses less than 1.0 W in stand by mode. To set the clock, see below. SETTING THE CLOCK Your oven has a 24 hour clock feature. -
Page 13: Manual Operation
MANUAL OPERATION Opening the door: To open the oven door, pull the door opening handle. Starting the oven: Depending on the food type and the required end results, either place food into a suitable container, then place the container onto the turntable, alternatively place foods directly onto the turntable. -
Page 14: Convection Cooking
GRILL COOKING/COMBI COOKING Note: Halfway through the grilling time an audible signal will sound twice this will remind you to turn the food over to ensure even browning. Please be aware that the oven will not stop automatically during grilling. Turnover the food halfway through, close the door and then press the START/+30sec./ENTER button to continue grilling. -
Page 15: Other Convenient Functions
CONVECTION COOKING Example 2: To cook without preheating To cook at 230°C for 20 minutes. 1. Open the door, place the food inside 2. Enter the desired 3. Press the 4. Use the ENTRY 5. Press the START/ the oven and close the door. Press the temperature by pressing START/+30sec./ dial to input the... -
Page 16: Weight Defrost And Time Defrost Function
OTHER CONVENIENT FUNCTIONS 3. CHILD LOCK: Use to prevent unsupervised operation of the oven by children. a. To set the CHILD LOCK: In the stand-by mode, press STOP/CLEAR button for 3 seconds. There will be a long beep denoting entering the children-lock state and the indicator will illuminate together with the current clock time. -
Page 17: Auto Menu Chart
AUTO MENU CHART Auto Menu Display Cooking method WEIGHT/ PORTION / UTENSILS Procedure Frozen pizza (oven 200g, 300g, 400g Remove packaging and place directly on the low rack. No ready pizza (initial temp. -18°C) standing time is required. prebaked) Low Rack Jacket Potato 100% Micro... -
Page 18: Suitable Ovenware
SUITABLE OVENWARE To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore it is important to choose suitable cookware. Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook. A variety of cookware can be used as listed below. -
Page 19: Care And Cleaning
Your oven is not fitted with a lamp access cover. If the lamp following page. fails, do not attempt to replace the lamp yourself, call a SHARP NOTES: approved service facility. -
Page 20: To Replace The Mains Plug
230-240V~, 50Hz alternating current supply. If you do not make the proper electrical connections you might damage the oven or injure yourself. Neither SHARP nor the supplier will be liable if this happens. WARNING: THIS APPLIANCE MUST BE EARTHED If you have any doubts about your electrical supply ask a qualifi ed electrician. -
Page 21: Calling For Service
Sharp. To benefi t from this guarantee, any fault that occurs must be notifi ed to Sharp, or its appointed Service Facility, within one year from the date the product was purchased. Proof of purchase, such as a receipt or invoice, must be provided. - Page 22 Sharp Electronics (UK) Ltd. London, UK UK: 0845 888 8112 offi ce hours) Ireland: 01 676 0648 (offi ce hours) Website: http://www.sharp.co.uk/support Printed in China PN.:261800316816...
