Sharp R-963S Operation Manual

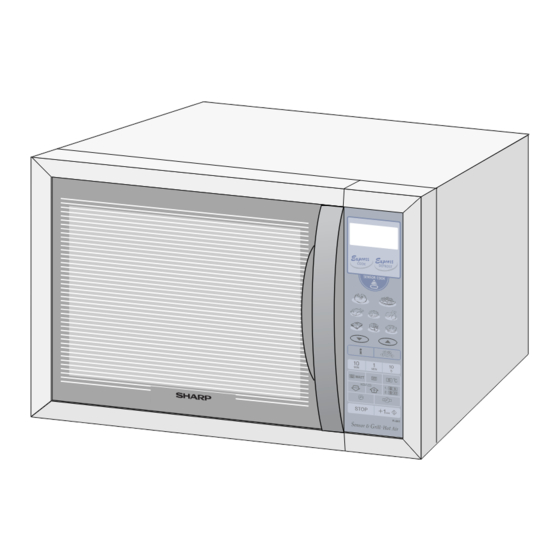

Microwave oven with sensor, grill and convection
Hide thumbs
Table of Contents

Advertisement

Quick Links

R-963S English
01/07/2002
15:21
Page A
Important
COO K
DEF ROS T
SEN SOR COO
K
WA TT
KG
R-9 63
R-963S
MICROWAVE OVEN WITH SENSOR, GRILL
AND CONVECTION
OPERATION MANUAL
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the
oven is modified so that it operates with the door open.
900 W (IEC 60705)
