Procom MD100TBA Manual page 21

INSPECTING BURNER
Check pilot flame pattern and burner flame pattern often.

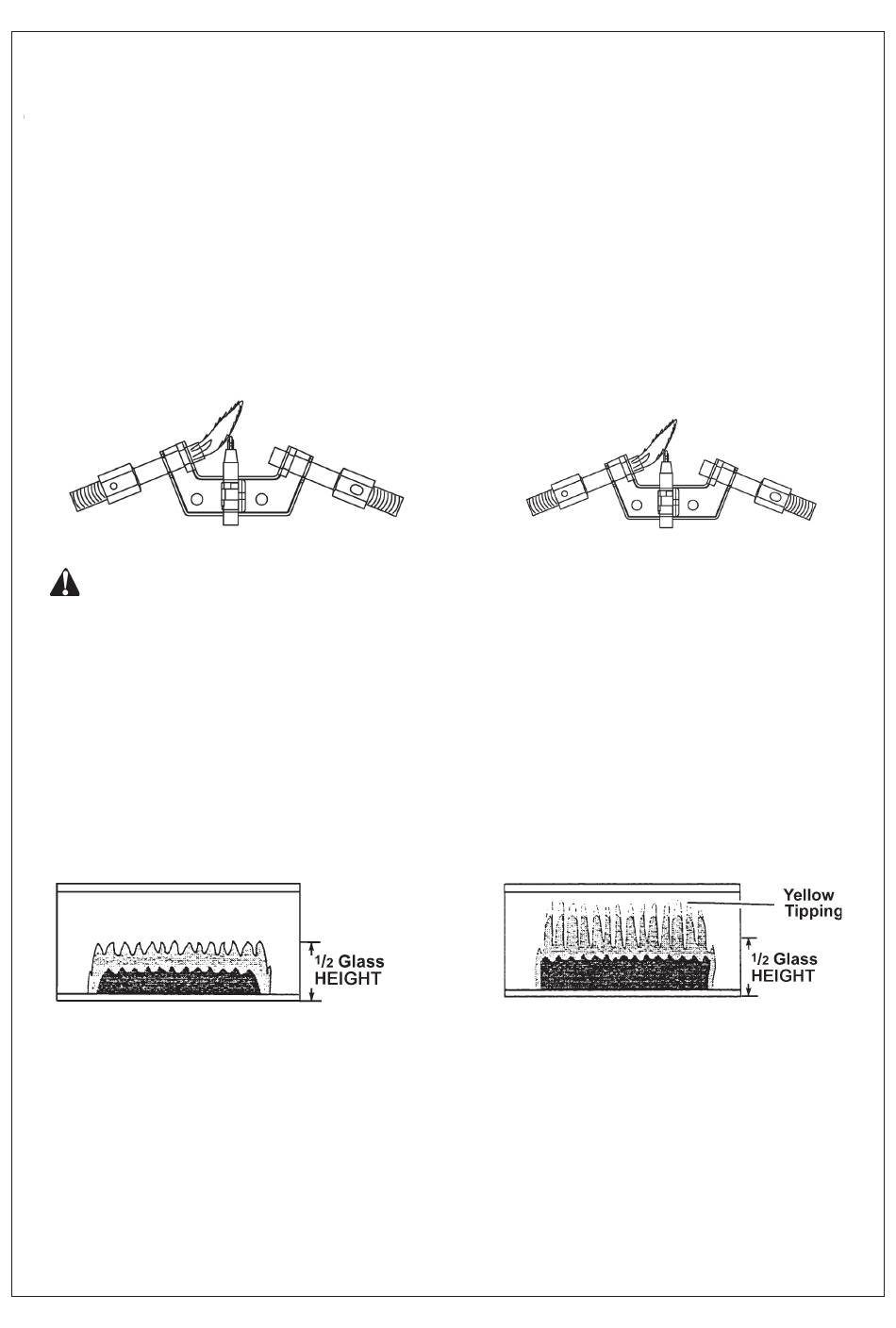

PILOT FLAME PATTERN
Figure 21 shows a correct pilot flame pattern. Figure 22 shows a incorrect pilot flame pattern. The incorrect pilot
flame is not touching the thermocouple. This will cause the thermocouple to cool, which shuts the heater off. If
pilot flame pattern is incorrect:
• turn heater off (see "To Turn Off Gas to Appliance" on page 19)
• see Troubleshooting pages 23 through 25.
Figure 21 - Correct Pilot Flame Pattern
WARNING: If yellow tipping occurs, your heater could produce increased levels of carbon monoxide. If
burner flame pattern shows yellow tipping, follow instructions at bottom of this page.
Notice: Do not mistake orange flames with yellow tipping. Dirt or other fine particles enter the heater and burn
causing brief patches of orange flame.
BURNER FLAME PATTERN
Figure 23 shows a correct burner flame pattern. Figure 24 shows an incorrect burner flame pattern. If burner
flame pattern is incorrect then:
• turn heater off (see "To Turn Off Gas to Appliance" on page 19).
• see Troubleshooting, pages 23 through 25.
Figure 23 - Correct Burner Flame Pattern
Figure 22 - Incorrect Pilot Flame Pattern
Figure 24 - Incorrect Burner Flame Pattern
