Summary of Contents for Jenn-Air 750-0593

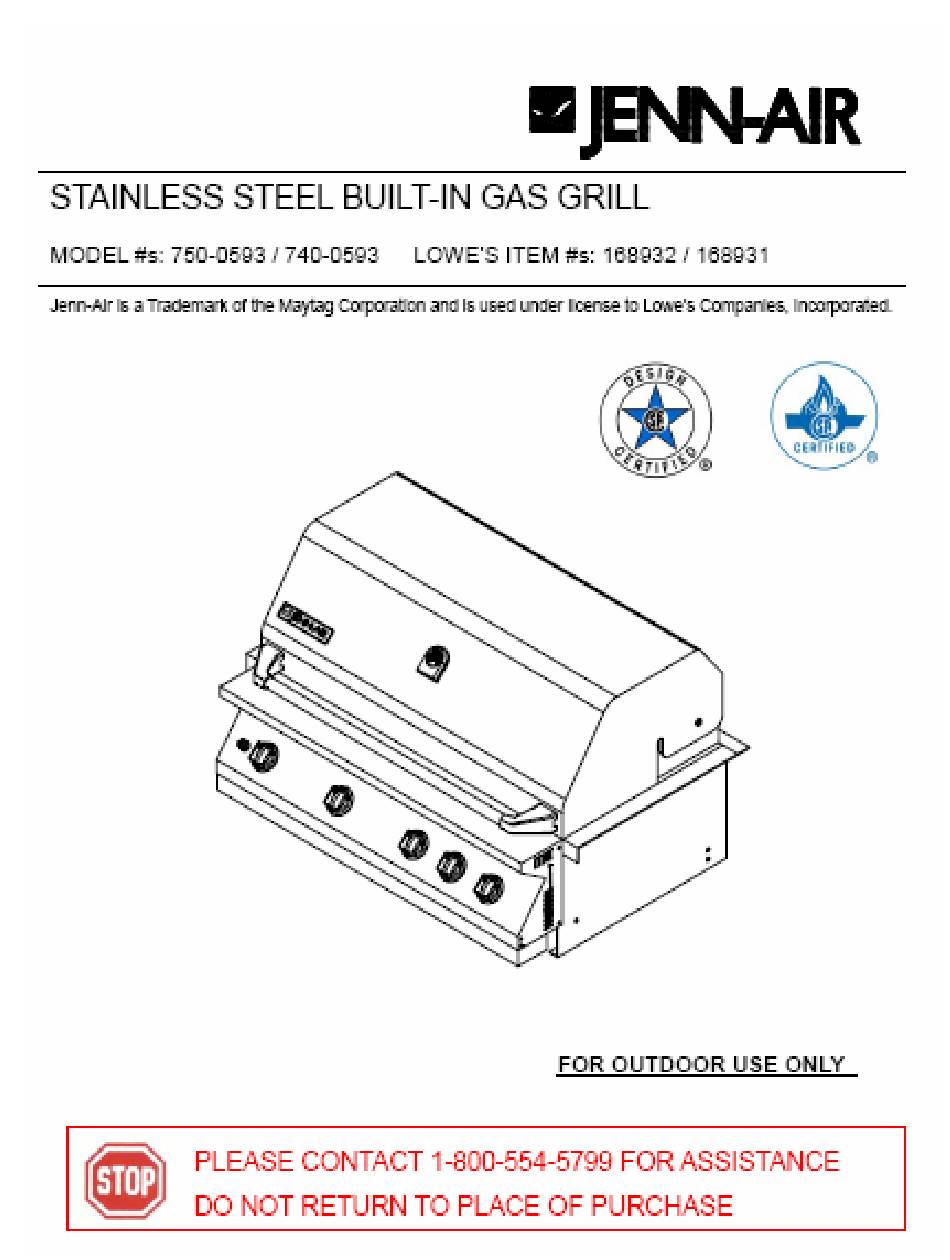

- Page 1 K20Y07PN-2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION ONE SECTION FIVE Safety Instructions Exploded View Model 750-0593 Placement of the Grill Parts List Model 750-0593 Exploded View Model 740-0593 SECTION TWO Parts List Model 740-0593 Model Specifications Island Construction SECTION SIX Front View of Opening... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS RECOGNIZED SAFETY SYMBOLS, WORDS AND LABELS WARNING WARNING Do not try lighting this appliance without first reading the “LIGHTING INSTRUCTIONS” section of this manual. WARNING – Hazards or unsafe practices which COULD result in severe personal injury or death. WARNING Spiders and insects can nest inside the burners of CAUTION... - Page 4 24 inches from all sides to combustible materials. Outdoor cooking appliance shall not be used under Model 750-0593 Natural Gas Grill overhead combustible construction. WARNING 1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected...
- Page 5 SAFETY INSTRUCTIONS This grill is not intended to be installed in or on WARNING recreational vehicles or boats. Do not try lighting this appliance without first reading the “LIGHTING INSTRUCTIONS” section of this Children should not be left alone or unattended in an manual.
-
Page 6: Placement Of The Grill
Do not use briquettes of any kind in the grill. Clean the grill with caution. To avoid steam burns, The 750-0593 and 740-0593 grills are designed for do not use a wet sponge or cloth to clean the grill optimum performance without the use of briquettes. -
Page 7: Model Specifications
GRILL SPECIFICATIONS Description 750-0593 and 740-0593 Cutout Width 33 in. (83.82 cm) Cutout Depth 21 in. (53.34 cm) Cutout Height 11 in. (27.94 cm) Natural Gas: Standard residential 1/2 in. (1.3 cm) ID gas service line. Natural gas hose/regulator assembly included with quick-connect fitting for attachment to house natural gas line. -
Page 8: Island Construction
LP and NG built-in grills: Width 33 inches Depth 21 inches Height 11 inches Tank bolt dimension for Jenn-Air 4 burner LP Tank bolt type: 1/2 inches-12UNC Tank bolt length: 9/20 inches Non-Combustible material needs to be Never use wood or any combustible used for built-in enclosure. - Page 9 Measurements shown are for attaching 1 7/16 in.(3.65cm) the LP regulator to the island. 13/16 in.(2.06cm) 2 15/16 in.(7.46cm) 750-0593 1 9/16 in.(3.97cm) Measurements shown are for attaching 2 15/16 in.(7.46cm) the NG regulator to the island. 1 9/16 in.(3.97cm)
-
Page 10: Front View Of Opening
2 in.(5.08cm) 2 in.(5.08cm) 1 7/8 in.(4.76cm) The following are minimum dimensions necessary to install the Jenn-Air built-in 4 burner grills. Width of grill head: 32 in. Depth for grill control panel: 10 7/8 in. Combustion Gap below control panel: 1 7/8 in. -
Page 11: Side View Of Opening
The following are minimum clearances necessary around the Jenn-Air built-in 4 burner grills. Rear Clearance: 24 in. to combustible materials Combustion gap below control panel: 1 3/4 in. -
Page 12: Battery Installation
BATTERY INSTALLATION 1. Unscrew the ignition button housing by turning counterclockwise. 2. Insert the battery into the housing with the positive (+) terminal facing outward. 3. Replace the ignition button housing after the battery has been installed. -
Page 13: Lp Gas Hook Up
LP GAS HOOK-UP Only the pressure regulator and hose assembly LP GAS HOOK-UP supplied with the grill should be used. Any Make sure the black plastic grommets on the LP replacement pressure regulator and hose assembly cylinder valve are in place, and the hose does not must be specified by the grill manufacturer. -
Page 14: Propane Tank Assembly
PROPANE TANK ASSEMBLY Fig. 1 Make sure the LP regulator is located under the island hole as shown in Fig. Use the 4 screws and clamp provided Fig. 2 to attach the brass connector to the island as shown in Fig. 2. The brass connector is located between the flex tube and gas hose. -
Page 15: Installation Of Ng Regulator
INSTALLATION OF NATURAL GAS REGULATOR 1. The Natural Gas regulator has been factory installed. Attach the PVC gas hose to the regulator (see drawing below). 2. Adjust the brass elbow so that it is pointing down. 3. Connect the other end of the PVC gas hose to the house gas line using the quick-connect fitting. -
Page 16: Natural Gas Hook-Up Xxxxxxxxxxxxxxxxxxxxxxxx
The installation of this appliance must conform with the local codes or, in the absence of local codes, to the national fuel gas code, ANSI Z223.1. Total gas consumption (per hour) of the 750-0593 grill with all burners on the “IGNITE / HI” setting: Main burners... -
Page 17: Leak Testing Xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
LEAK TESTING XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX GENERAL Although all gas connections on the grill are leak 6. If it is evident there is excessive abrasion or tested at the factory prior to shipment, a complete wear, or the hose is cut, it must be replaced gas tightness check must be performed at the prior to the outdoor cooking gas appliance installation site. -
Page 18: Installer Final Checklist
Keep the instruction manual with the grill for future reference. Model 750-0593 WARNING 1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressure in excess of 1/2 psi (3.5 kpa). -
Page 19: Operating Instructions
OPERATING INSTRUCTIONS GENERAL USE OF THE GRILL AND ROTISSERIE Each main burner is rated at 12,000 BTU/Hr. The CAUTION main grill burners encompass the entire cooking Do not leave the grill unattended while cooking. area and are side ported to minimize blockage from falling grease and debris. - Page 20 LOADING THE ROTISSERIE SKEWER It is normal for the skewer to flex when larger cuts 1. Screw the bushing into the skewer rod at the of meat are being cooked. It may also be necessary opposite end from the point. to remove the cooking grids for larger cuts of meat.
-
Page 21: Lighting Instructions
LIGHTING INSTRUCTIONS BEFORE LIGHTING… Inspect the gas supply piping prior to turning the gas “ON”. If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use. WARNING Do not use the grill if gas odor is present. Contact Yellow flames indicate insufficient air. -
Page 22: Lighting Illustrations
LIGHTING ILLUSTRATIONS MAIN BURNER LIGHTING ROTISSERIE BURNING LIGHTING 1. Open the top cover or lid. 4. Push and turn the Rear Burner knob to the “IGNITE/ON” setting and hold in for 5 seconds while holding, push electronic ignition button, until burner is lit. Once lit, release electronic ignition button, and still hold in the Rear Burner knob for another 15 seconds (if the burner does not ignite follow... -
Page 23: To Match Light The Grill
MATCH LIGHTING THE GRILL If the burner will not light after several attempts using the control knobs, the burner may be lit with a match. 1. If you have already attempted to light the burner with the igniter, allow 5 minutes for any accumulated gas to dissipate. -
Page 24: Care And Maintenance
To reinstall the main burners: 3. Insert the burner over the valve assembly CAUTION (model 750-0593/740-0593 Item # 19 on Before cleaning, make sure the gas supply and pages 24 and 26). control knobs are in the “OFF” position and the 4. -
Page 25: Troubleshooting
TROUBLE SHOOTING WHEN TO LOOK FOR SPIDERS INSECT WARNING You should inspect the burners twice a year or Spiders and insects can nest in the burners of immediately after any of the following conditions this and other grills, which could disrupt gas occur: flow. -
Page 26: Exploded View Model 750-0593
EXPLODED VIEW MODEL 750-0593... -
Page 27: Parts List Model 750-0593
PARTS LIST MODEL 750-0593 DESCRIPTION DESCRIPTION Main lid screw cover Lighting Rod Main lid screw Main Manifold Main Lid Rotisserie Thermocouple Gas Valve Temperature Gauge Main Burner Flex Gas Line Logo NG Brass Connector A Main Lid Handle Heat Insulating cover... -
Page 28: Exploded View Model 740-0593
EXPLODED VIEW MODEL 740-0593... -
Page 29: Parts List Model 740-0593
PARTS LIST MODEL 740-0593 DESCRIPTION DESCRIPTION Main lid screw cover Lighting Rod Main lid screw Main Manifold Main Lid Rotisserie Thermocouple Gas Valve Temperature Gauge Main Burner Flex Gas Line Logo Regulator, LP 90 Degree Brass Adaptor Main Lid Handle Heat Insulating cover Main Lid Handle, Left Main Burner Flex Gas Clamp Main Lid Handle, Right... -
Page 30: Grilling Hints
GRILLING HINTS This Jenn-Air grill has an infrared side burner – It is recommended that meat be defrosted overnight commonly referred to as a “searing” burner. This in the refrigerator as opposed to a microwave. This type of burner produces extreme heat that can be generally yields a juicier cut of meat. - Page 31 French fries Medium 15 to 30 minutes Place in aluminum foil pan. Grill, stirring occasionally. FOOD WEIGHT FLAME APPROXIMATE SPECIAL INSTRUCTIONS OR THICKNESS SIZE TIME AND TIPS MEATS BEEF Hamburgers 1/2 to 3/4 inch Medium 10 to 18 minutes Grill, turning once when juices rise to the surface.
- Page 32 POULTRY 1 to 1-1/2 hours Place skin side up. Grill. Turn and Broiler/fryer 2 to 3 pounds brush frequently with melted butter, margarine, oil, or marinade. FOOD WEIGHT FLAME APPROXIMATE SPECIAL INSTRUCTIONS OR THICKNESS SIZE TIME AND TIPS Breasts Medium 30 to 45 minutes Marinate with Italian dressing well-done FISH AND...
-
Page 33: Grill Recipe Suggestions
GRILL RECIPES BBQ SALMON Half-hour before cooking, turn the 1tsp. Worcestershire sauce 2 large salmon steaks burner to the grill on high. Drain 1tsp. Dry mustard 2 tbs. oil seafood-reserving marinade. On each 1/4 tsp. Thyme, crushed Salt & pepper of twelve 10 in. - Page 34 heat tortillas on grill. Slice meat across CHICKEN TANDOORI STYLE 2 oz. lemon juice grain in thin slices. Place on hot platter. 8 large chicken thighs or drumsticks 10 lbs. pork roast Squeeze lemon juice over. Wrap meat and 1 c. plain nonfat yogurt any of the following toppings in tortillas: 1/2 c.
