Summary of Contents for Grundig GTN 38240 GC

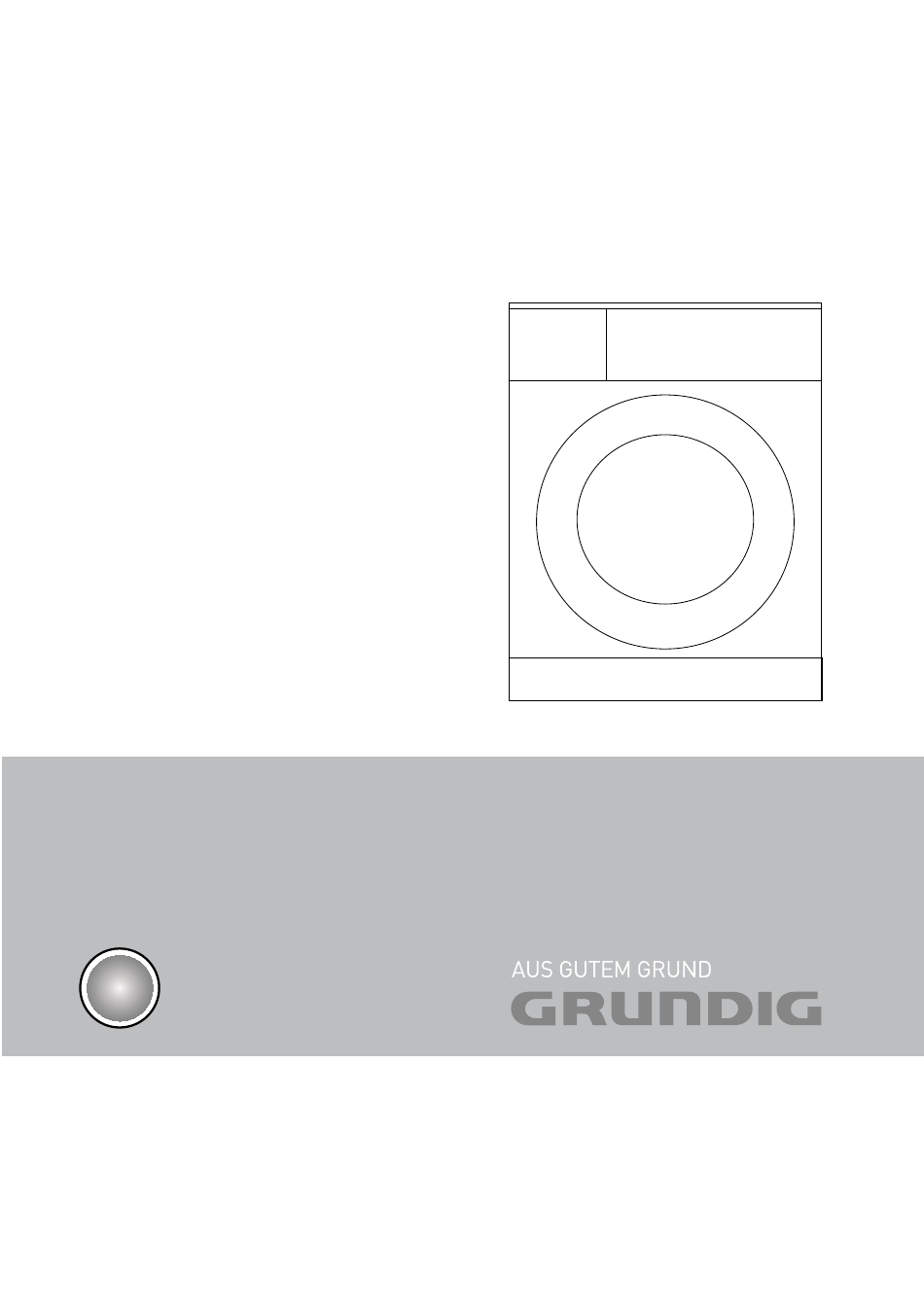

- Page 1 GTN 38240 GC 2960310829_KM/ 111113.1457...
- Page 2 Please read this user manual first! Dear Customer, Thank you for preferring an Grundig product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference.
-
Page 3: Table Of Contents
TaBle OF CONTeNTs 5.5 Main programmes ....17 1 Important instructions for safety and environment 5.6 Additional programmes ... . . 17 5.7 Auxiliary functions. -
Page 4: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that regulations. will help protect from risk of personal injury ƒ Unplug the product when it is not in use. or property damage. Failure to follow these Never wash the product by spreading or ƒ... -
Page 5: Intended Use
Important instructions for safety and environment ƒ Do not install the product behind a door reinforcements should not be dried in the with a lock, sliding door or a hinged door dryer. Dryer can get damaged if metal which can strike the product. reinforcements come loose and break off Do not install or leave the dryer in places ƒ... -
Page 6: Compliance With The Weee Directive And Disposing Of The Waste Product
Important instructions for safety and environment 1.6 Package information ƒ Electrical products are dangerous for the children. Keep children away from the Packaging materials of the product are ƒ product when it is operating. Do not let manufactured from recyclable materials them tamper with the product. -
Page 7: Your Dryer
Your Dryer 2.1 Overview 1. Top panel 2. Control panel 3. Loading door 4. Kick plate opening button 5. Ventilation grids 6. Adjustable feet 7. Kick plate 8. Type label 9. Lint filter 10. Water tank drawer 11. Power cord Dryer / User Manual 7 / 36 EN... -
Page 8: Scope Of Delivery
Your Dryer 2.2 scope of delivery 1. Water drain hose * 2. Filter drawer sponge* 3. User Manual *It can be supplied with your machine depending on its model. Dryer / User Manual 8 / 36 EN... -
Page 9: Technical Specifications
Your Dryer 2.3 Technical specifications Height (adjustable) 84,6 cm Width 59,5 cm Depth 59,8 cm Capacity (max.) 8 kg Net weight (plastic front door option) 49 kg Net weight (glass front door option) 51 kg Voltage Rated power input See type label Model code Type label is located behind the loading door. -
Page 10: Installation
Installation Refer to the nearest Authorised Service Agent connections have been made. When for installation of the product. To make the installing the product, make sure that the product ready for use, make sure that the rear wall of it does not touch anywhere electricity and water drainage systems are (tap, socket, etc.). -
Page 11: Under Counter Installation
Installation 3.3 under counter installation This product can be installed under a ƒ counter if the height of the counter is sufficient. ƒ Leave at least 3 cm of space around the sides and the rear wall of the product when installing it under a counter or in a cupboard. -
Page 12: Adjusting The Feet
Installation 3.6 adjusting the feet 3.8 Warnings related to sound In order to ensure that the product operates It is normal to hear a metallic noise more silently and vibration-free, it must stand sometimes from the compressor during level and balanced on its feet. Balance the operation. -
Page 13: Preparation
Preparation 4.1 laundry suitable for drying in the machine Always obey the instructions given on the garment tags. Dry only the laundry having a ƒ label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme. -
Page 14: Things To Be Done For Energy Saving
Preparation 4.5 First use Laundry must be spun at the highest Before starting to use the product, make sure spin speed that the washing machine allows on basis of the fabric type. that all preparations are in place pursuant to 4.4 Things to be done for the instructions in sections “Important Safety energy saving... -
Page 15: Loading The Laundry
Preparation Following weights are given as examples. Approximate Home articles weights (g) Cotton quit covers (double) 1500 Cotton quit covers (single) 1000 Bed sheets (double) Bed sheets (single) Large tablecloths Small tablecloths Tea napkins Bath towels Hand towels Approximate weights Garments Blouses Cotton shirts... -
Page 16: Operating The Product
Operating the product 5.1 Control panel 1. On/Off/Cancel button 2. Programme number indicator 3. Display 4. Start / Pause button 5. End time setting selection button 6. Audio warning level / Child lock button 7. Timer programmes selection button 8. Programme selection knob 5.2 display symbols Remaining time indicator* Filter Drawer Cleaning warning symbol... -
Page 17: Preparing The Machine
Operating the product 5.3 Preparing the machine For further programme details, 1. Plug in the machine. see, "Programme selection and consumption table". 2. Place the laundry in the machine. 5.5 main programmes 3. Press the On/off/cancel button for 1 Depending on the fabric type, the following second (long). - Page 18 Operating the product ▪ shirts ▪ refresh This programme dries the shirts more Only ventilation is performed for 10 minutes sensitively and creases them less and thus, without blowing hot air. You can air the helps to iron them more easily. clothes that have been kept in closed environments for a long time and deodorize There may be a little moisture...
- Page 19 Operating the product Programme selection and consumption table Spin speed Approximate Drying time Programmes Capacity (kg) in washing amount of (minutes) machine (rpm) remaining humidity Cottons / Coloureds Extra dry 1000 60 % Cupboard dry 1000 60 % Iron dry 1000 60 % Shirts 30’...
-
Page 20: Auxiliary Functions
Operating the product 5.7 auxiliary functions Water tank When the programme is completed, a audio Warning warning symbol will appear to remind that the The machine will give an audio warning water tank needs to be drained. when the programme comes to an end. Use If the water tank becomes full while the the audio Warning level button to adjust programme is running, the warning symbol... -
Page 21: Starting The Programme
Operating the product To start a new programme after the current Additional laundry may be loaded programme is over or to interrupt the current / taken out during the End Time period. At the end of the End Time programme, the Child Lock should be countdown process, End Time symbol deactivated. -
Page 22: Cancelling The Programme
Operating the product 5.12 Cancelling the programme adding / removing laundry in Pause mode If you want to stop drying and cancel the In order to add or take out laundry after the programme for any reason after the machine drying programme has started: has started to run, press and hold the 1. -
Page 23: Easy Use
Easy use 6.1 Preparing the machine 6.5 end of programme 1. Plug in the machine. Lint Filter Cleaning and Water Tank warning 2. Place the laundry in the machine. symbols light up in the programme follow-up 3. Press the On/off/cancel button for 1 indicator when the programme comes to an second (long). -
Page 24: Maintenance And Cleaning
Maintenance and cleaning Service life of the product extends and A layer can build up on the filter pores frequently faced problems decrease if cleaned that can cause clogging of the filter after using the machine for a while. at regular intervals. Wash the lint filter with warm water CauTION: Unplug the product from to remove the layer that builds up on... -
Page 25: Cleaning The Sensors
Maintenance and cleaning 7.2 Cleaning the sensors If you forget to drain the water tank, the machine will stop during the subsequent There are dampness sensors in the machine drying cycles when the water tank is full and that detect whether the laundry is dry or not. the Water Tank warning symbol will flash. - Page 26 Maintenance and cleaning 4. Open the filter drawer by pressing the red There is a two-level filter in the filter drawer. The first level is the filter drawer sponge and button. the second level is the filter cloth. To clean the filter drawer: 1.
-
Page 27: Cleaning The Evaporator
Maintenance and cleaning 11.Close the kick plate cover. It is not necessary to clean the sponge if lint and fiber accumulation on it is not significant. 8. Place the sponge back into its place. CauTION: Drying without the filter drawer sponge in place will damage the machine! A dirty lint filter and filter drawer will 9. -
Page 28: Troubleshooting
Troubleshooting drying process takes too much time. Pores of the lint filter are clogged. >>> Wash the lint filter with warm water. ƒ Filter drawer is clogged. >>> Clean the sponge and the filter cloth in the filter drawer. ƒ Ventilation grids on the front side of the machine are blocked. - Page 29 Troubleshooting Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the ƒ loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket. loading door opens spontaneously. The loading door might not be closed securely.
-
Page 30: Electrical Connection
Electrical Connection Make sure that you have an earthed power Do not operate without the top cover outlet socket rated at 10 amps (minimum). fitted. Risk of injury. attention! Important When installed, the socket must be reachable Fitting a different plug after installation, or a separate switch (which can disconnect the two poles) must be used in As the colours of the wires in the mains lead... - Page 31 Guarantee for refrigeration, Cooking appliances, Washing machines, Tumble dryers & dishwashers. Your new Grundig product is guaranteed against the cost of breakdown repairs for five years from the date of the original purchase. What is covered? • Repairs necessary as a result of faulty materials, defective components or manufacturing defect.
- Page 32 If you have purchased an extended guarantee please refer to the instructions contained within the extended guarantee agreement document. Otherwise please call the appropriate number above where service can be obtained at a charge. Should you experience any difficulty in obtaining service please contact the Grundig Customer Help-Line. Tel: 0845 6004911 e-mail: service@Grundig.co.uk...
- Page 36 FOR A GOOD REASON...
