PART 2 - DETAILED SYSTEM DESCRIPTION

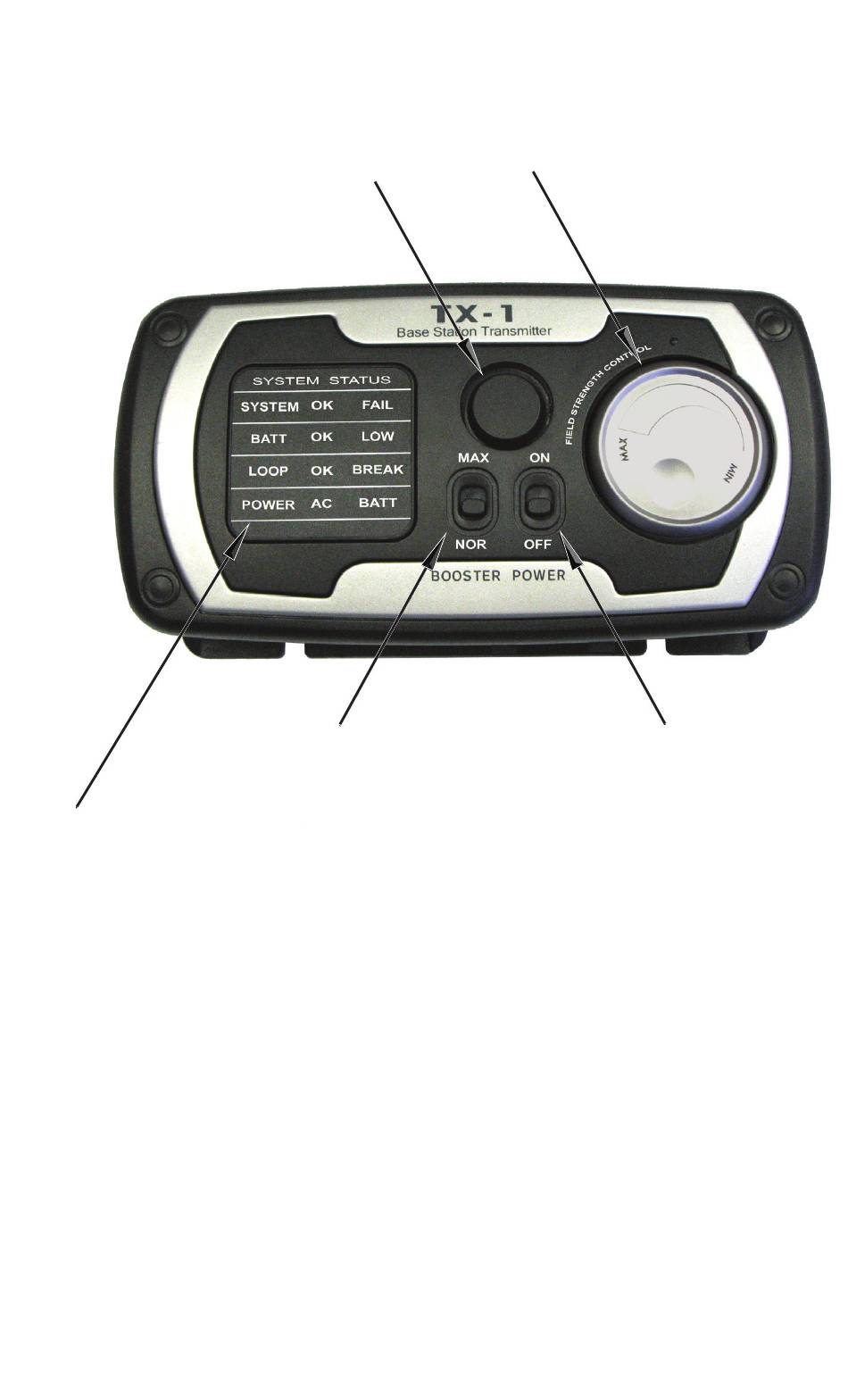

TX-1 BASE STATION TRANSMITTER
FIELD WIDTH CONTROL
CABLE BREAK ALARM
10
POWER BOOST SWITCH
ON / OFF SWITCH
SYSTEM STATUS DISPLAY
Figure 3
General Description
The Model TX-1 Base Station Transmitter is an FCC approved radio
device. (FCC Approval No. QP4HC-5000). The signal emitted by the Base
Station Transmitter contains a special, digital code that must be received
and recognized by the receiver collar before the collar will administer
any stimulus to your pet. The TX-1 is the only electronic fence, base
station transmitter designed for indoor or OUTDOOR use. The many super
advanced features of your TX-1 Transmitter are as follows.
System Status Display
The fully illuminated display panel gives you the complete status of your
Base Station. On the display, the left column tells you the function being
monitored. The middle and right columns tell you the status of that
function.
