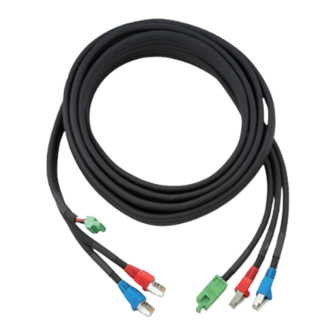

- Page 1 Crestron TPS/TPMC-CBL-T3/6/9 Triamese Cable for TPS/TPMC Panels Installation Guide...
- Page 2 This document was prepared and written by the Technical Documentation department at: Crestron Electronics, Inc. 15 Volvo Drive Rockleigh, NJ 07647 1-888-CRESTRON All brand names, product names and trademarks are the property of their respective owners. ©2005 Crestron Electronics, Inc.
-
Page 3: Features And Functions
Supplied with the touchpanel is a TPMC-CH-IMC Interface Module that serves as an interface between the touchpanel, the audio and video sources, and/or the Crestron remote control system (herein referred to as the Cresnet system). Also supplied with the touchpanel is a 15-foot (4.57 meter) Triamese cable for the NET, VIDEO, and AUDIO... -
Page 4: Physical Description
* TPS-Series tilt touchpanels ending with a “B” or “W” designation are expected 1Q 2006. The Triamese cable is available from Crestron in a matching color by adding the appropriate color code to the part number (“B” for black and “W” for white). - Page 5 6 ft (1.83 m) 9 ft (2.74 m) 8-PIN CAT5 AUDIO 8-PIN CAT5 VIDEO 4-PIN CRESNET TOP VIEW SIDE VIEW * For the pin signals, refer to "Cable/Port Signals" on the next page. Triamese Cable for TPS/TPMC Panels: TPS/TPMC-CBL-T3/6/9 • 3 VIDEO...
- Page 6 - Mic Right Out + Audio Right In - Audio Right In NET Pin Assignments 24 VDC Data-Y Data-Z Ground 4 • Triamese Cable for TPS/TPMC Panels: TPS/TPMC-CBL-T3/6/9 Crestron TPS/TPMC-CBL-T3/6/9 S-VIDEO + Luminance - Luminance + Chrominance - Chrominance Front...
-
Page 7: Cable Connections
Connect Triamese Cable Connectors to TPMC-Series Touchpanel NOTE: Since the TPMC touchpanels use an external power supply, the 24 VDC connection is not required when connecting the Triamese cable to the NET port of the touchpanel or the TPMC-CH-IMC. Installation Guide - DOC. 6399... - Page 8 (BLUE), and the connector labeled CRESNET to the NET (TO PANEL) port. Connect Triamese Cable Connectors to TPMC-CH-IMC TRIAMESE CABLE FROM TOUCHPANEL CRESNET 6 • Triamese Cable for TPS/TPMC Panels: TPS/TPMC-CBL-T3/6/9 Crestron TPS/TPMC-CBL-T3/6/9 AUDIO VIDEO Installation Guide - DOC. 6399...
-
Page 9: Further Inquiries
Crestron website (www.crestron.com) for a listing of Crestron worldwide offices. You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 10: Crestron Limited Warranty
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures. - Page 11 Crestron TPS/TPMC-CBL-T3/6/9 Triamese Cable for TPS/TPMC Panels This page intentionally left blank. Triamese Cable for TPS/TPMC Panels: TPS/TPMC-CBL-T3/6/9 • 9 Installation Guide - DOC. 6399...
- Page 12 Crestron Electronics, Inc. Installation Guide - DOC. 6399 15 Volvo Drive Rockleigh, NJ 07647 (2013543) Tel: 888.CRESTRON 12.05 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
