Crestron TSR-302 Supplemental Manual

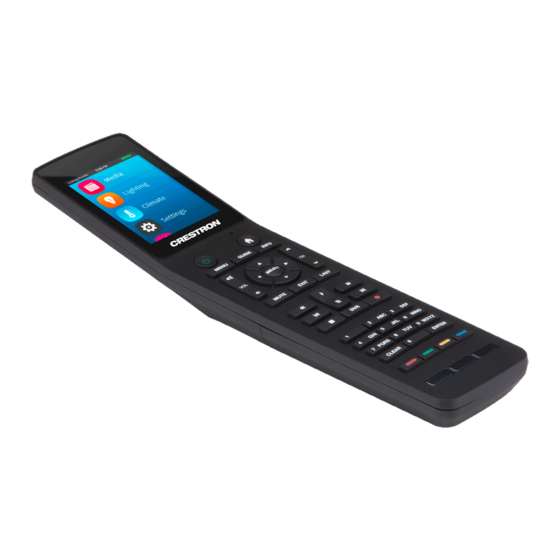

Handheld touch screen remote
Hide thumbs Also See for TSR-302:
Table of Contents

Advertisement

Quick Links

See also: Configuration Manual , Manual
TSR-302
Handheld Touch Screen Remote
Supplemental Guide
Crestron Electronics, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSR-302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron TSR-302

Summary of Contents for Crestron TSR-302

  • Page 1 TSR-302 Handheld Touch Screen Remote Supplemental Guide Crestron Electronics, Inc.
  • Page 2 States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others.

  • Page 3: Table Of Contents

    Contents Access the Setup Screens Access the Setup Screens via the Device Buttons ..........1 Access the Setup Screens via Crestron Toolbox ............. 1 Configure the TSR-302 RF Setup ......................... 3 Single Gateway Setup ................3 Gateway Roaming Setup ................5 Audio Setup ......................

  • Page 5: Access The Setup Screens

    ® NOTE: If no project has been loaded or if an invalid project has been loaded, the TSR-302 defaults to a screen that allows access to the main screen. The setup screens enable basic configuration prior to regular operation of the TSR-302.
  • Page 6 Diagnostics buttons. In addition, there is a button that toggles on-screen messages on and off, a button that provides information about the TSR-302, and a Save & Exit button. The functions of each are detailed in the next section of this guide.

  • Page 7: Configure The Tsr-302

    The RF Setup screen shows the RF signal strength and has controls for enabling or disabling roaming. Before a TSR-302 can be used with a Crestron control system, it must first be acquired by a Crestron Extended Range (RF) Wireless Gateway (sold separately).
  • Page 8 The RF ID of the unit must match the RF ID specified in the SIMPL Windows program. For details, refer to Best Practices for Installation and Setup of Crestron RF Products (Doc. 6689) at www.crestron.com/manuals. 4 • TSR-302: Handheld Touch Screen Remote...

  • Page 9: Gateway Roaming Setup

    RF Setup Screen (Gateway Roaming Enabled) Tap Gateway Roaming Setup to display the RF Roaming Setup screen. RF Roaming Setup Screen Tap RF Settings to access the RF Settings screen. TSR-302: Handheld Touch Screen Remote • 5 Supplemental Guide – DOC. 7663B...
  • Page 10 RF Settings Screen After making any desired settings, tap to return to the RF Roaming Setup screen. Enable multiple gateways to acquire a TSR-302 by performing the following procedure: NOTE: Only one gateway at a time can be in Acquire mode.
  • Page 11 3. Select one of the gateways, and then tap ACQUIRE START. 4. When the process is complete, the screen displays an “Acquire OK” message. 5. Repeat steps 3 and 4 for any additional gateways to which the TSR-302 is to be acquired.

  • Page 12: Audio Setup

    H.264 streaming media level in relation to the Master Volume controls. to return to the main screen. Display Setup On the main menu, tap Display Setup to enter the Display Setup screen. Display Setup Screen 8 • TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B...

  • Page 13: Timeouts

    The Standby Timeout screen provides controls to adjust the Standby timeout (from 0 to 120 seconds) and the Power Down timeout (from 0 to 240 seconds) for when the TSR-302 is undocked. There is also a Standby timeout control (from 0 to 120 seconds) for when the TSR-302 is docked.

  • Page 14: Wifi Setup

    WiFi Setup On the main menu, tap WiFi Setup and then tap Add Access Point to display the Select Access Point screen. Select Access Point Screen 10 • TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B...
  • Page 15 4. Select the appropriate type of encryption, and then tap to return to the Confirm Info screen. 5. Tap the Password field and enter the password using the on-screen keyboard. TSR-302: Handheld Touch Screen Remote • 11 Supplemental Guide – DOC. 7663B...
  • Page 16 6. Tap Save to save the password and return to the Confirm Info screen. Confirm Info Screen (After Data Entry) 7. Tap Make this my Access Point to confirm the entries and display the WAP Connect screen. 12 • TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B...
  • Page 17 WAP Connect Screen (While Connecting) WAP Connect Screen (Connected) 8. Tap Done to accept the connection to the wireless access point and to display the WiFi Setup screen. TSR-302: Handheld Touch Screen Remote • 13 Supplemental Guide – DOC. 7663B...
  • Page 18 9. Tap IP Settings to display the WiFi IP Settings screen. WiFi IP Settings Screen (DHCP On) 10. The TSR-302 ships with DHCP enabled by default. To use DHCP, tap repeatedly to return to the main screen. To enter static IP settings, tap Off under DHCP Enabled.
  • Page 19 11. Tap Set Static IP Address Settings to display the Static IPs screen. Static IPs Screen 12. Tap the Static IP address field to open an on-screen numeric keypad. TSR-302: Handheld Touch Screen Remote • 15 Supplemental Guide – DOC. 7663B...

  • Page 20: Diagnostics

    16. Tap Reboot Required to Apply IP Changes to apply the entries and reboot the TSR-302. Diagnostics On the main screen, tap Diagnostics to display the Diagnostics screen. Diagnostics Screen 16 • TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B...

  • Page 21: Keypad Test

    Keypad Test Screen The Keypad Test screen contains 42 indicators that correspond to the 42 buttons on the TSR-302. The appropriate indicator lights to confirm operation of each pressed button. TSR-302: Handheld Touch Screen Remote • 17 Supplemental Guide – DOC. 7663B...

  • Page 22: Touch Test

    On the Diagnostics screen, tap RF Test to display the RF LQI Test screen. RF LQI Test Screen The RFI LQI Test screen provides diagnostic information about the signals from the gateway. 18 • TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B...

  • Page 23: Mic Test

    On the Diagnostics screen, tap Mic Test to initiate a short recording via the built-in microphone. MIc Test Screen When the recording is complete, the TSR-302 plays it back. Battery Diag On the Diagnostics screen, tap Battery Diag to display the Battery screen.

  • Page 24: Dock Test

    On the Diagnostics screen, tap Dock Test to display the Dock screen. Dock Screen The Dock screen has an indicator to confirm that the TSR-302 is docked. The On and Off buttons enable or disable the dock alert message and the chime that sounds when the TSR-302 is docked.

  • Page 25: Rava Test

    The Rava Setup screen provides controls for testing the use of Crestron’s Rava ® Intercom with the TSR-302. Use this screen to configure the TSR-302 to make peer calls to another Rava-enabled device. Alternately, in SIP Server mode, the TSR-302 can be configured to connect to a SIP server.

  • Page 26: About

    Save & Exit On the main screen, tap Save & Exit to save all settings, exit the setup screens, and return to the main project. 22 • TSR-302: Handheld Touch Screen Remote Supplemental Guide – DOC. 7663B...
  • Page 27 This page is intentionally left blank. TSR-302: Handheld Touch Screen Remote • 23 Supplemental Guide – DOC. 7663B...
  • Page 28 Crestron Electronics, Inc. Supplemental Guide – DOC. 7663B 15 Volvo Drive Rockleigh, NJ 07647 (2040914) Tel: 888.CRESTRON 06.15 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
