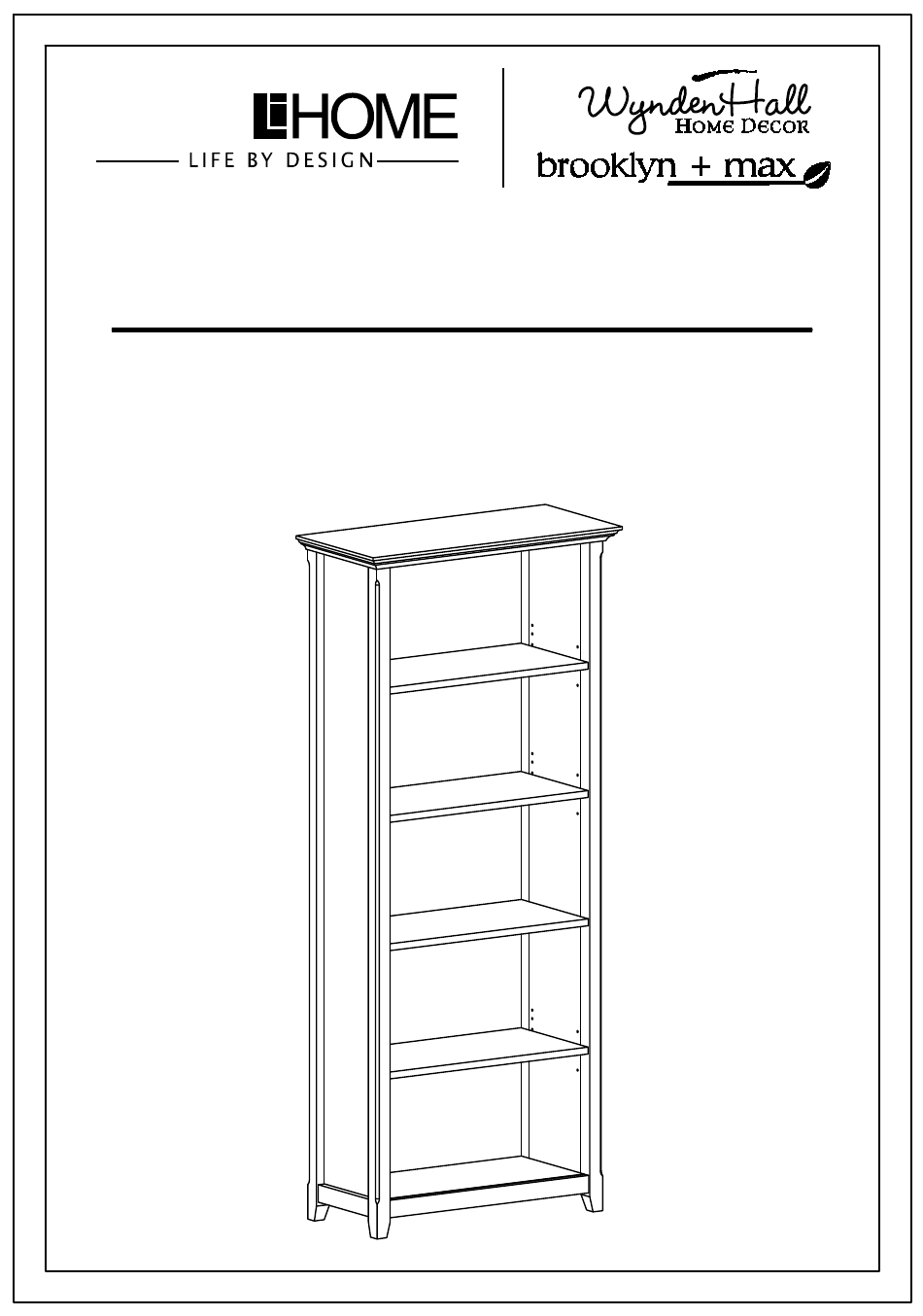

- Page 1 S IMP HOME ® AMHERST / HALIFAX / WASHINGTON 5 SHELF BOOKCASE MODEL # AXCAMH09-RUS 1/14...
- Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 5 PRE-ASSEMBLY INFORMATION MODEL # AXCAMH09-RUS PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF CABINET SHELF MIDDLE SHELF QTY 1 QTY 1 QTY 3 BACK PANEL QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
-
Page 6: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCAMH09-RUS HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN M6 X 30mm ALLEN KEY CAM LOCK QTY 12 QTY 1 QTY 6 SETS PHILLIPS SCREW ROUND HEAD SHELF SUPPORT M4 X 15mm QTY 18 QTY 20 Required - Flathead screwdriver Phillips screwdriver... - Page 7 COMPONENTS-KEY DIAGRAM MODEL # AXCAMH09-RUS 7/14...
- Page 8 ASSEMBLY MODEL # AXCAMH09-RUS STEP-1 1. Attach 3 Cam Lock Pins 2 into pre-drilled holes on each Side AL , AR . 2. Align Cam Lock Pins with guide holes from Middle Shelf D and attach Middle Shelf D . 3.
- Page 9 ASSEMBLY MODEL # AXCAMH09-RUS STEP-2 1. Attach Top B to Sides AL , AR using 6 Allen Key Screws 1 through guide holes from Sides AL , AR (3 screws on each Side). 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 9/14...
- Page 10 ASSEMBLY MODEL # AXCAMH09-RUS STEP-3 NOTE: The screwdriver is not included in the hardware pack. Warning Label 1. Use 20 Phillips Screws Round Head 5 to attach Back Panel F through guide holes to the back of Bookcase. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten. 10/14...
- Page 11 ASSEMBLY MODEL # AXCAMH09-RUS STEP-4 shelf support anti - tipping shelf level 1 shelf level 2 shelf level 3 1. Use 4 Shelf Supports 4 for each Cabinet Shelf E in desired location. 2. 2 Shelf Supports 4 may be used on back top of each Cabinet Shelf E as a tipping restraint.
- Page 12 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. STEP-5 NOTE: The screwdriver is not included in the hardware pack.
- Page 13 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 14: Warranty
S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
