    Content Welcome ..................3 About ...................3 Package List ................3 Compatibility ................3 Notice ..................4 General Information of OBDII (On-Board Diagnostics II) ..4 Diagnostic Trouble Codes (DTCs) ..........4 Product Descriptions ..............5 Preparation & Connection ............6 Operation Introduction ............11 Technical Specification ............27 Warnings ..................
  • Page 3: Welcome

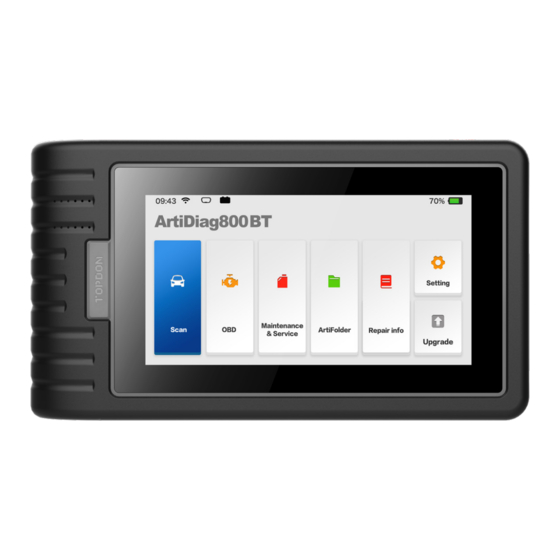

    User Manual before operating this product. About TOPDON ArtiDiag800 BT is designed with technicians in mind. This 5.99” Android tablet-style scanner boasts high-quality features with easy workflow to tackle the common and complex vehicle diagnostic issues for most modern vehicles worldwide.
  • Page 4: Notice

    Notice Product Descriptions ArtiDiag800 BT may automatically reset while being disturbed by strong static electricity. THIS IS A NORMAL REACTION. This Product Manual is subject to change without written notice. Read the instruction carefully and use the unit properly before operating. Fail to do so may cause damage and/or personal injury, which will void the product warranty.
  • Page 5: Preparation & Connection

    Preparation & Connection 4. Turn the ignition on. The engine can be off or running. 5. Hold the Power Button for 3 seconds to turn the TOPDON ArtiDiag800 BT on. The 1. Turn the ignition off. tablet will start initializing and enter the following interface.
  • Page 6 9. User Agreement Please read all the terms and conditions of the user agreement carefully. Choose “Agree to the above terms”. 7. Connect Wi-Fi The system will automatically search all available Wi-Fi networks. You can choose the Wi-Fi needed. Tap “Next” to register an account. 10.
  • Page 7: Operation Introduction

    Input the serial number and activation code to activate and bind the diagnostic VCI dongle. Both the serial number and the activation code are available in the "Password TOPDON ArtiDiag800 BT has 7 major modules, including OBD, Scan, Maintenance & Envelop".
  • Page 8 1.2 Manual Diagnosis 1.3 Health Report You need to enter the vehicle’s VIN data manually if ArtiDiag800 BT fails to get This function can quickly reveal the vehicle's health status. access to the vehicle VIN data automatically. Tap “Health Report”. The system will start scanning DTCs and show the test results.
  • Page 9 1.4 System Scan 1.5.2 Read Fault Code This function will automatically scan all systems of the vehicle. This function can read the Diagnostic Trouble Codes (DTCs) in the ECU memory, helping quickly identify the cause of the vehicle breakdown. 1.5 System Selection Tap “Read Fault Code”.
  • Page 10 The system will display a maximum of four dynamic data steams in three modes: 1) Value (default): Shows parameters with numbers and lists. 2) Figure: Displays parameters with wave patterns. 3) Combine: The graphs can be merged for easier comparisons. 1.6 Diagnostic History The tablet will record the details of every diagnostic session.
  • Page 11 • The battery monitoring sensor uses the battery matching function to TOPDON ArtiDiag800 BT features 16 most commonly used maintenance and reset re-match the control module with the monitoring sensor, so as to detect functions.
  • Page 12 2.8 DPF Regeneration 2.15 EGR Adaption This function can help remove particulate matter from the trap by using This function can learn the EGR (Exhaust Gas Recirculation) valve after it is combustion oxidation methods to keep the performance of the trap stable. cleaned or replaced.
  • Page 13 3.7 On-Board Monitor Test This function retrieves test results for emission-related powertrain components and systems that are not continuously monitored. The test’s availability is determined by the vehicle manufacturer. 3.8 EVAP System Test This function initiates a leak test for the vehicle’s EVAP system. Refer to the vehicle’s service repair manual to determine the procedures necessary to stop the test.
  • Page 14 5. Repair Info 7. Settings This module includes four sections: You can modify or add related information in this module, or make settings after the initial setting is completed. 1) OBD Fault Code Library: The detailed explanation of the fault codes. 2) Coverage List: The supported vehicles’...
  • Page 15: Technical Specification

    This option includes Frequently Aksed Questions, and official answers. 7.7 Screen Recorder 7.20 App Update This module saves the screen recordings. This option allows you to upgrade the ArtiDiag800 BT software. 7.8 Network 7.21 About This module allows you to set the connectable Wi-Fi network.
  • Page 16: Warnings

    Warnings Always perform automotive testing in a safe environment. Q:Why does TOPDON ArtiDiag800 BT have no responses when it is connected to a car? DO NOT smoke near the vehicle during testing. A:Check if the connection with the vehicle diagnostic socket is solid, or check if the ignition switch is on, or if the tool supports the car.
