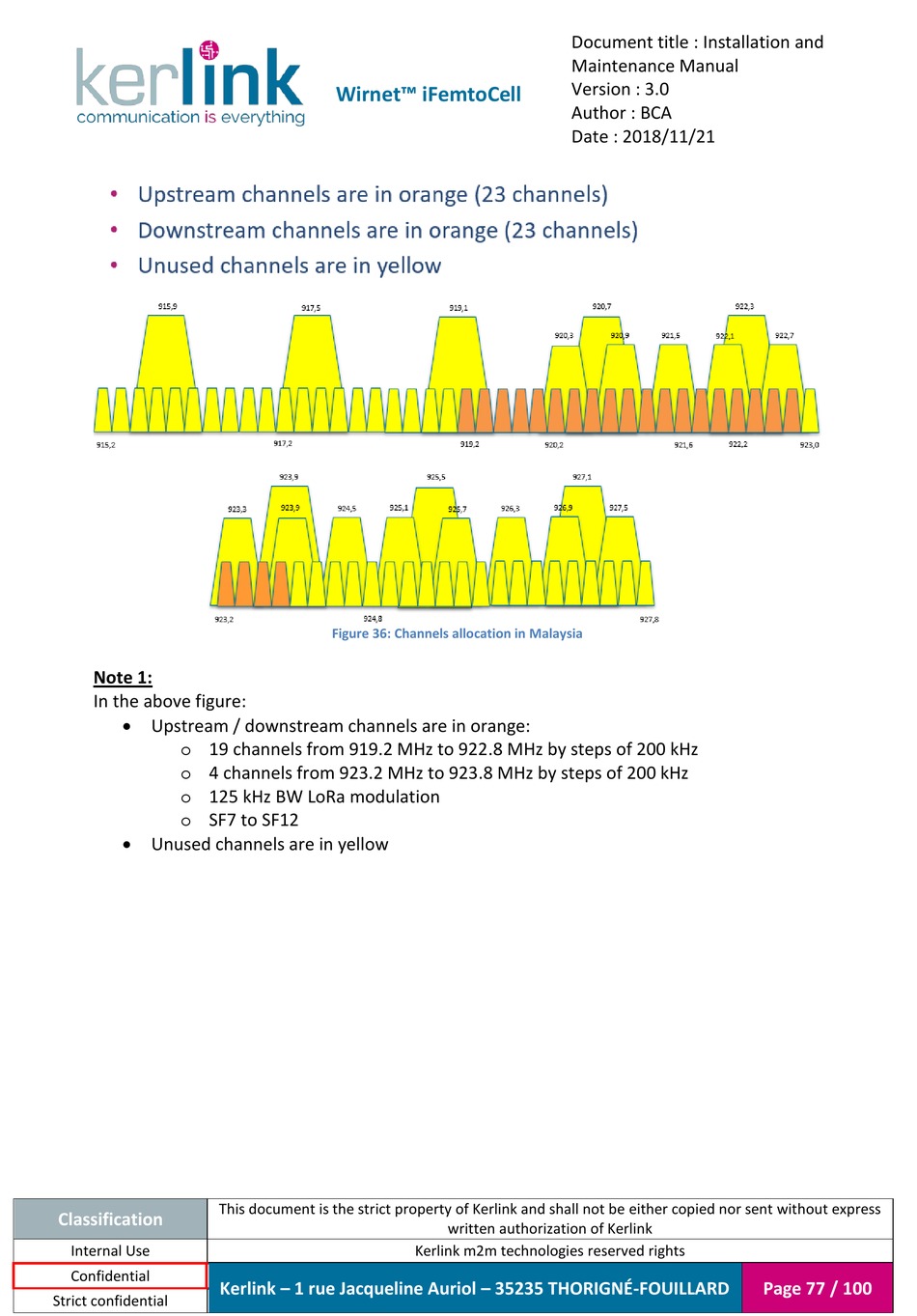

Figure 36: Channels Allocation In Malaysia - Kerlink Wirnet iFemtoCell Installation And Maintenance Manual

Note 1:
In the above figure:
 Upstream / downstream channels are in orange:
o 19 channels from 919.2 MHz to 922.8 MHz by steps of 200 kHz
o 4 channels from 923.2 MHz to 923.8 MHz by steps of 200 kHz
o 125 kHz BW LoRa modulation
o SF7 to SF12
 Unused channels are in yellow
