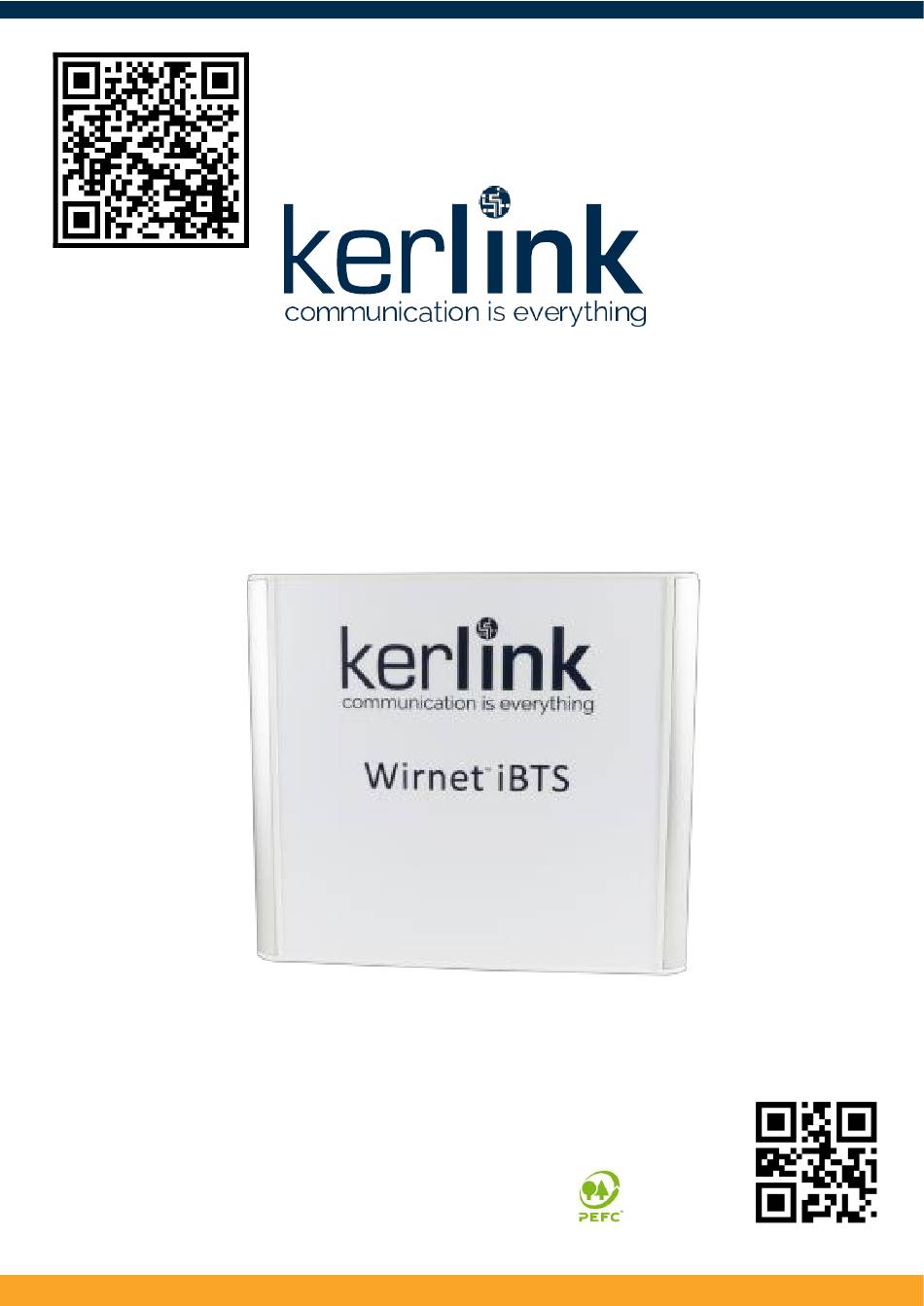

- Page 1 Wirnet iBTS LoRaWAN® gateway for the Internet of Things Quick Start Guide Thank you for choosing Kerlink. We are proud to be part of your project. For ecological reasons, this guide has been printed on recycled paper KLK03591_02 Kerlink internal use only...
-
Page 2: Need Help
Kerlink is providing preferably “Online documentation”. You can then find up to date documentation directly within our website: https://www.kerlink.com/customer-support/ • For its direct customers, Kerlink is also providing a Wiki access where it can be found a comprehensive set of documents and technical information. It can be accessed here: http://wikikerlink.fr/ - If you don’t have yet your Wiki login/password,... -
Page 3: Package Contents
2 Manufacturer Kerlink, 1 Rue Jacqueline Auriol, 35235 Thorigné-Fouillard, France Tel.: +33 (0)2 99 12 29 00 – Fax: +33 (0) 2 99 12 29 11 www.kerlink.com 3 Package Contents Wirnet™ iBTS architecture is completely modular and upgradable to offer multiple configurations to cover different countries and areas around the world. -
Page 4: Power Supply
• Humidity: 95% non-condensing • LoRa LOC module (Rx mode): 6.5W • Ingress protection: IP66 Total Wirnet iBTS (1 LoRa LOC): 237Wh • Impact resistance: IK08 Total Wirnet iBTS (2 LoRa LOC): 392Wh • Flammability rating: UL94-V0 Total Wirnet iBTS (3 LoRa LOC): 547Wh •... -
Page 5: Auxiliary Power Supply
The power supply of the Wirnet™ iBTS must be a limited power source. All the PoE injectors listed below must then considered as limited power sources Some POE solutions may not be compatible with the Wirnet™ iBTS. This is particularly true for specific DC application where the Wirnet™ iBTS is in power supply colocation with other equipments. -
Page 6: Ethernet Connection
The USIM card to be used with the Wirnet™ iBTS shall be a 2FF format. Kerlink recommends the usage of a M2M UICC compliant with 3GPP TS 102.671. It offers then a better temperature operating range, improved data retention and increased number of UPDATE commands. -
Page 7: Mounting Of The Enclosure
The cable gland allows external cable diameter (cable and RJ45 connector) from 5mm to 8 mm. An example of RJ45 connector inserted to the PoE/LAN port of the CPU module is shown below. On the other side of the Ethernet cable, the RJ45 connector must be inserted into the RJ45 “Data + Power” port of the POE injector. - Page 8 5.6 Earthing Several earthing cables, wires, tapes or ring tongue terminals are required to connect the installation and the materials to earth for lighting immunity and electrical security: • Earthing of the Wirnet™ iBTS mounting kit • Earthing of the antennas •...
- Page 9 The M4 screws, the metallic strapping are not provided by KERLINK Once the universal antenna bracket is installed, then the LoRa antenna can be mounted on the bracket. The LoRa antenna is provided with a N female connector, a washer and a M19 nut.
- Page 10 • Screw the M22 nut The M4 screws, the metallic strapping are not provided by KERLINK 5.8 Mounting of a cavity filter Whenever a cavity filter is recommended, screw it directly onto the antenna as follows:...
- Page 11 N female connector on the bottom side of the Wirnet™ iBTS To improve the durability of the RF connections against environmental aggression (moisture, pollution …), KERLINK recommends to protect the connectors with an insulating tape like the reference 130C from 3M.
-
Page 12: First Connection
6.1 Wirnet™ iBTS 868 Simplified EU Declaration of Conformity Hereby, Kerlink, declares that the radio equipment type Wirnet™ iBTS 868 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address : https://www.kerlink.com/customer-support/support-wirnet-ibts/... - Page 13 The power supply of the Wirnet™ iBTS 915 must be a limited source of power. Note that: Kerlink is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
- Page 14 The power supply of the Wirnet™ iBTS 923 must be a limited source of power. Kerlink is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
- Page 15 Australia / New Zealand Japan 当該機器には電波法に基づく、技術基準適合証明等を受けた特定無線設 備を装着している。 This equipment contains specified radio equipment that has been certified to the Technical Regulation Conformity Certification under the Radio Law N° SIRI : E063119 Malaysia Approval: RFFT/01A/1117/S(17-3534) Registration Number IMDA TS SRD : N4572-17 Singapore Registration Number IMDA TS CMT : S4633-17 “เครื...
-
Page 16: Disposal / Recycling
For any Warranty or Maintenance related request (Trouble shooting, help …), - If purchased from a Distributor, please contact the distributor directly for Level1 support - If purchased from Kerlink directly, please open an “Assistance Request” via our ticketing tool called OTRS (Open-source Ticket Request System) - If you don’t have yet your OTRS login/password, please request them to support@Kerlink.com (note...
