Summary of Contents for Kerlink Wirnet iZeptoCell

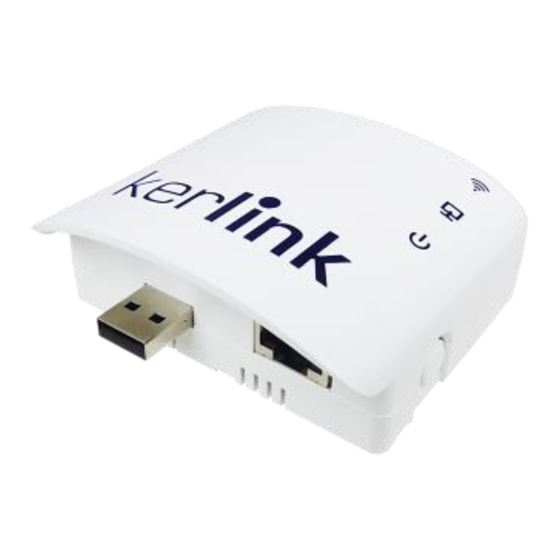

- Page 1 Latest online doc version Wirnet™ iZeptoCell Ethernet LoRaWAN® gateway for the Internet of Things Quick Start Guide Thank you for choosing Kerlink. We are proud to be part of your project. KLK03464_03 Kerlink internal use only V3.0 – 06/04/2022 | Page 1/12...
-
Page 2: Need Help
If you don’t have yet your Wiki login/password, please request them to support@kerlink.com (note that the − “EUI” of one of your products will be required). How to find the EUI”? Please look at the Wirnet iZeptoCell sticker placed on the top side of the case and − scan the QR code. -
Page 3: Package Contents
It is an integral part of the described equipment, and it must be available at all times. • Only use the Wirnet iZeptoCell for its intended use "Normal conditions of use". • Maintenance and repair must be carried out by qualified personnel authorized by the manufacturer. - Page 4 Kerlink could also provide the following accessories: Optional x1 POE splitter 1x USB-A to Optional USB-C cable Markings Symbol Description Symbol Description Wirnet Type of IP30 Ingress protection level iZeptoCell equipment CE marking indicating that the PDTIOT- Reference of product complies with current...
- Page 5 Casing wall fixing Wall mounting is completed by using the oblong hole on the rear side. A 4mm diameter screw (M4) with countersunk flat heat and an appropriate wall plug are recommended. Wall mounting oblong hole Ø2.5 holes (x2) for accessories mounting kits Two non-threated holes (2.5mm diameter, 6mm depth) could be also used for accessories mounting.
- Page 6 Power supply through multi-blade wall adapter Connections possibilities Comments Power supply via the multi-blade adapter Ethernet link through Ethernet cable Power supply through USB cable Power supply via USB cable Ethernet link through Ethernet cable Power supply through POE splitter Power supply and Ethernet link through POE...
- Page 7 Commissioning LEDs To ensure the Wirnet iZeptoCell is started up, check the behavior of the LED indicators: Indicative timings: SW reset takes around 1min 30s Boot takes around 1min 20s, Backhaul connection takes around 10s, Specification • Boot -> Red Fix ON •...
-
Page 8: Additional Information
Kerlink Helium Hotspot integrity and security. Connection via Wanesy Management Plan interface (centralized administration) Kerlink recommends the usage of WMP to access to the Administration and Management features of the gateway. Indeed, this interface allows easy gateway management: •... - Page 9 11.1 Wirnet™ iZeptoCell PDTIOT-IZEE800 Simplified EU Declaration of Conformity Hereby, Kerlink, declares that the radio equipment type Wirnet™ iZeptoCell PDTIOT-IZEE800 is compliant to Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: https://www.kerlink.com/customer-support/support-wirnet-izeptocell-ethernet/...
- Page 10 The power supply of the Wirnet™ iZeptoCell PDTIOT-IZEE900 must be a limited source of power. Note that: Any change or modification of this equipment not expressly authorized by Kerlink may cause, interference and void the FCC authorization to operate this equipment.
-
Page 11: Disposal / Recycling
Contact your reseller for warranty conditions of the Wirnet iZeptoCell. The Wirnet iZeptoCell is not warranted by Kerlink in case the enclosure is opened, modified, painted, branded out, outligned by CUSTOMER for any reason. Feel free to contact us for a guideline for the branding. - Page 12 V3.0 – 06/04/2022 | Page 12/12...
