Summary of Contents for Kerlink Wirnet iBTS Compact

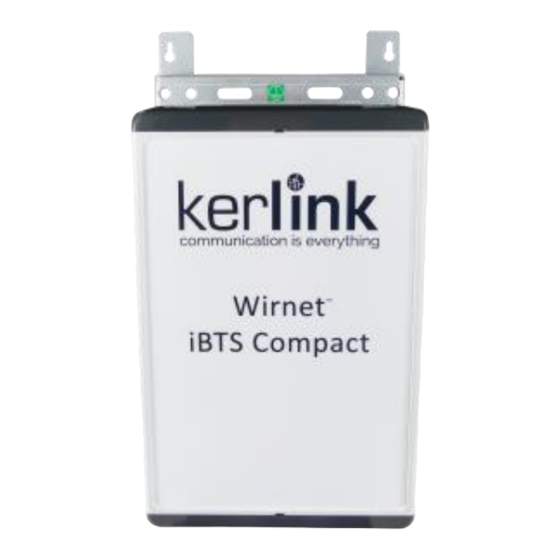

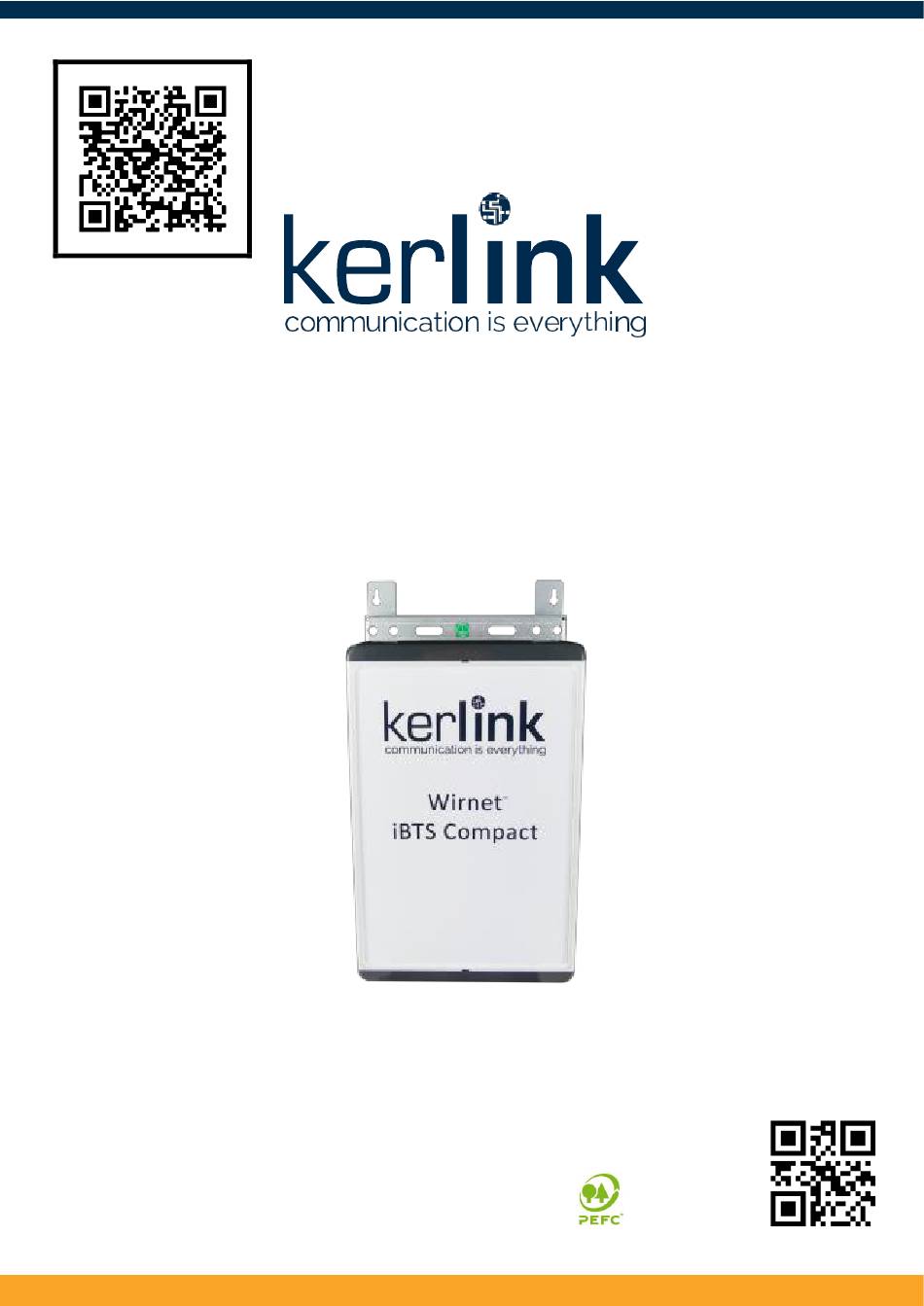

- Page 1 Wirnet iBTS Compact LoRaWAN® gateway for the Internet of Things Quick Start Guide Thank you for choosing Kerlink. We are proud to be part of your project. For ecological reasons, this guide has been printed on recycled paper KLK03592_02 Kerlink internal use only...
-
Page 2: Need Help
Kerlink is providing preferably “Online documentation”. You can then find up to date documentation directly within our website: https://www.kerlink.com/customer-support/ • For its direct customers, Kerlink is also providing a Wiki access where it can be found a comprehensive set of documents and technical information. It can be accessed here: http://wikikerlink.fr/ - If you don’t have yet your Wiki login/password,... -
Page 3: Package Contents
2 Manufacturer Kerlink, 1 Rue Jacqueline Auriol, 35235 Thorigné-Fouillard, France Tel.: +33 (0)2 99 12 29 00 – Fax: +33 (0) 2 99 12 29 11 www.kerlink.com 3 Package Contents Wirnet™ iBTS Compact architecture is completely modular and upgradable to offer multiple configurations to cover different countries and areas around the world. -
Page 4: Power Supply
Humidity: 95% non-condensing 1.7W • • Ingress protection: IP66 LoRa LOC module (Rx mode): 6.5W • Impact resistance: IK08 Total Wirnet iBTS Compact: 237Wh • Flammability rating: UL94-V0 • Altitude: < 2000m • Pollution Degree: PD2 5.2 Power supply 5.2.1 POE supply The Wirnet™... -
Page 5: Auxiliary Power Supply
Some POE solutions may not be compatible with the Wirnet™ iBTS Compact. This is particularly true for specific DC application where the Wirnet™ iBTS Compact is in power supply colocation with other equipments. In such cases, some equipment may have connection between earthing system and the power supply connection (either “+”... -
Page 6: Ethernet Connection
The USIM card is mandatory to establish the LTE/3G/GPRS communications. The USIM card to be used with the Wirnet™ iBTS Compact shall be a 2FF format. Kerlink recommends the usage of a M2M UICC compliant with 3GPP TS 102.671. It offers then a better temperature operating range, improved data retention and increased number of UPDATE commands. -
Page 7: Mounting Of The Enclosure
The cable gland allows external cable diameter (cable and RJ45 connector) from 5mm to 8 mm. An example of RJ45 connector inserted to the PoE/LAN port of the CPU module is shown below. On the other side of the Ethernet cable, the RJ45 connector must be inserted into the RJ45 “Data + Power” port of the POE injector. -
Page 8: Mounting Of The Antenna
5.6 Earthing Several earthing cables, wires, tapes or ring tongue terminals are required to connect the installation and the materials to earth for lighting immunity and electrical security: • Earthing of the Wirnet™ iBTS Compact mounting kit • Earthing of the antennas •... - Page 9 The M4 screws, the metallic strapping are not provided by KERLINK Once the universal antenna bracket is installed, then the LoRa antenna can be mounted on the bracket. The LoRa antenna is provided with a N female connector, a washer and a M19 nut.
- Page 10 5.8 Mounting of a cavity filter Whenever a cavity filter is recommended, screw it directly onto the antenna as follows: Remove caps on both N Screw the cavity filter onto the Screw the coaxial cable onto the N connectors antenna through the N connector connector of the cavity filter Use a M19 wrench to screw the cavity filter and the coaxial cable.
-
Page 11: First Connection
N female connector on the bottom side of the Wirnet™ iBTS Compact To improve the durability of the RF connections against environmental aggression (moisture, pollution …), KERLINK recommends to protect the connectors with an insulating tape like the reference 130C from 3M. -
Page 12: Declarations Of Conformity
6.1 Wirnet™ iBTS Compact 868 Simplified EU Declaration of Conformity Hereby, Kerlink, declares that the radio equipment type Wirnet™ iBTS Compact 868 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address : https://www.kerlink.com/customer-support/support-wirnet-ibts-compact/... - Page 13 The power supply of the Wirnet™ iBTS Compact 915 must be a limited source of power. Note that: Kerlink is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
- Page 14 The power supply of the Wirnet™ iBTS Compact 923 must be a limited source of power. Kerlink is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
- Page 15 Malaysia N° SIRI : E062717 Approval: RFFT/02A/1117/S(17-3594) Singapore Registration Number IMDA TS SRD : N4573-17 Registration Number IMDA TS CMT : S4631-17 “เครื ่ องโทรคมนาคมและอุ ป กรณ์ น ี ้ มี ค วามสอดคล ้องตามมาตรฐานหรื อ ข ้อกาหนดทางเทคนิ ค ของ กสทช.” (This telecommunication equipment conforms to the standard or technical requirements of NBTC) “เครื...
-
Page 16: Disposal / Recycling
For any Warranty or Maintenance related request (Trouble shooting, help …), - If purchased from a Distributor, please contact the distributor directly for Level1 support - If purchased from Kerlink directly, please open an “Assistance Request” via our ticketing tool called OTRS (Open-source Ticket Request System) - If you don’t have yet your OTRS login/password, please request them to support@Kerlink.com (note...
