GE Vital Signs enFlow Service Manual page 14

4. Display Panel

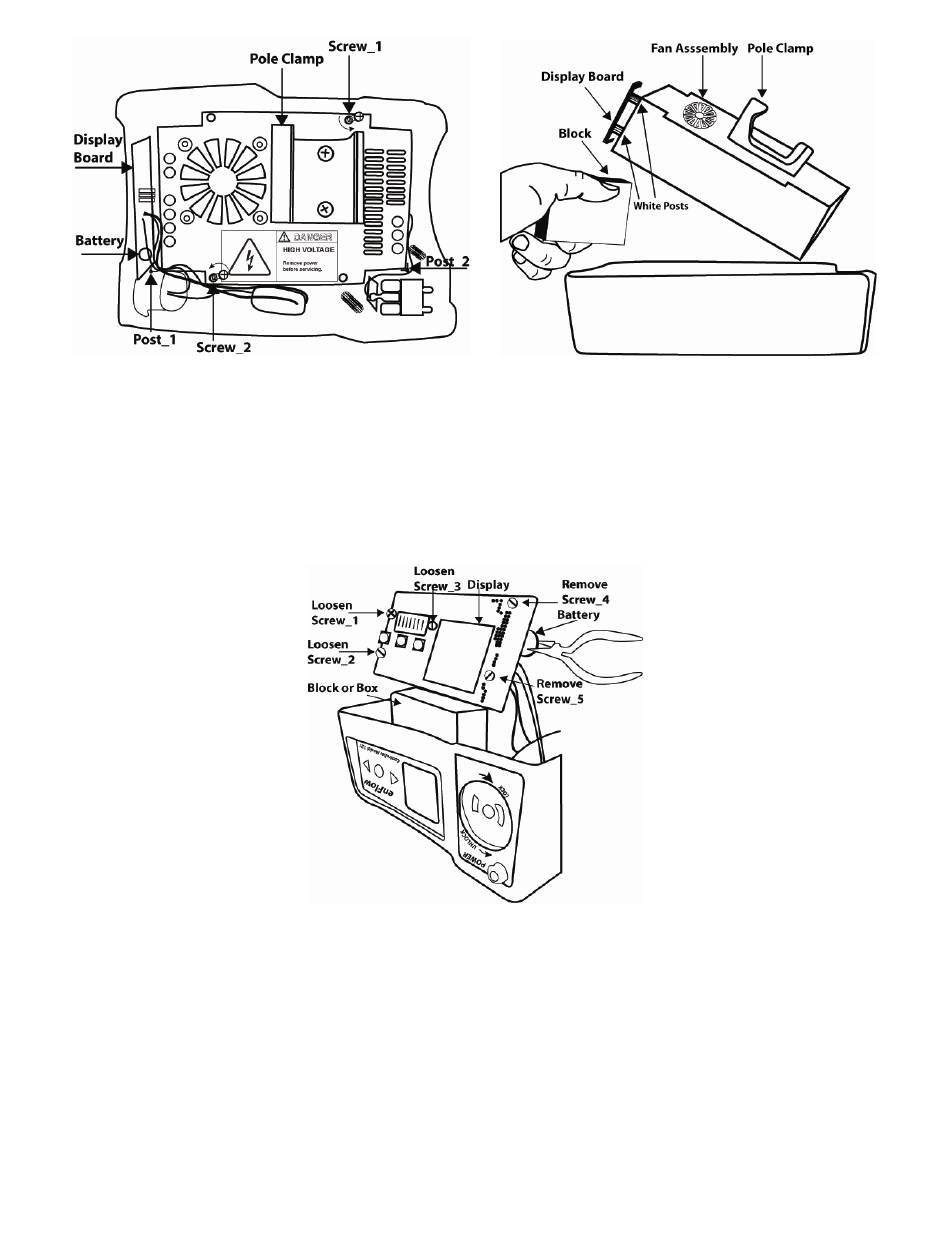

a. On the display panel remove the two screws (4 and 5) at the end of the panel next to the display
screen (see Diagram 7).
b. There are three other screws (1-3) that need to be loosened half-way on this panel.
c. Pull the display panel away from the fan assembly.
d. Take a pair of pliers and gently pull out battery.
e. Insert new battery. Push firmly into place.
f. Reinsert and tighten all screws on the display board
Diagram 7
5. Reassembly
a) Reseat fan assembly and display board (see Diagram 5).
b) When reseating display board, make sure that all wires are between the two white posts (see
Diagram 6).
c) When reseating the fan assembly on the display board end, make sure that the wires are inside
the corner post_1 (see Diagram 5) and wrap around the edge of the fan assembly.
d) On the opposite end from the display board, make sure the wires go around the outside of the
corner post_2 (see Diagram 5).
e) Reinsert and tighten the 2 screws for the power assembly (see Diagram 5).
f) Attach bottom cover; reinsert and tighten the six related cover screws (see Diagram 3).
g) Reinsert pole clamp screw.
h) Dispose of the old battery in accordance with any government regulations in affect in your area.
enFlow Service Manual Rev. F 04/12
4400_0060 Page 14 of 36
