GE Vital Signs enFlow Service Manual page 13

Instructions for replacing the Controller/AC Power Pack clock battery.

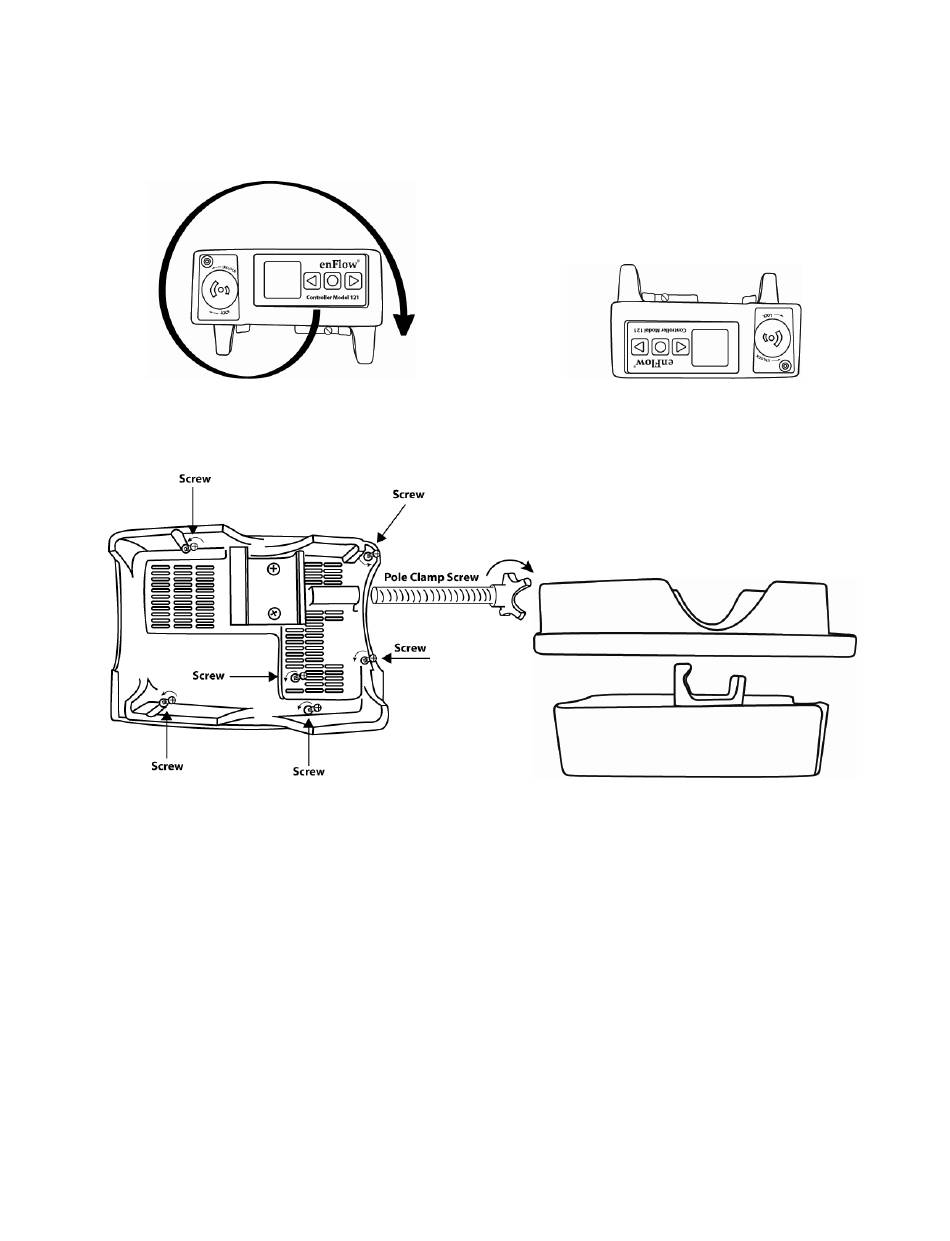

1. Turn Controller/AC Power Pack over.
Diagram 1
2. To remove the bottom, unscrew Pole Clamp screw; unscrew 4 screws shown below. Next, lift the cover.
Diagram 3
3. Power Assembly
a. On the power supply assembly, unscrew 2 screws shown below (see Diagram 5).
b. Gently lift up assembly by holding pole clamp, and prop up with a small block or box (see
Diagram 6).
Diagram 5
enFlow Service Manual Rev. F 04/12
4400_0060
Diagram 2
Diagram 4
Diagram 6
Page 13 of 36
