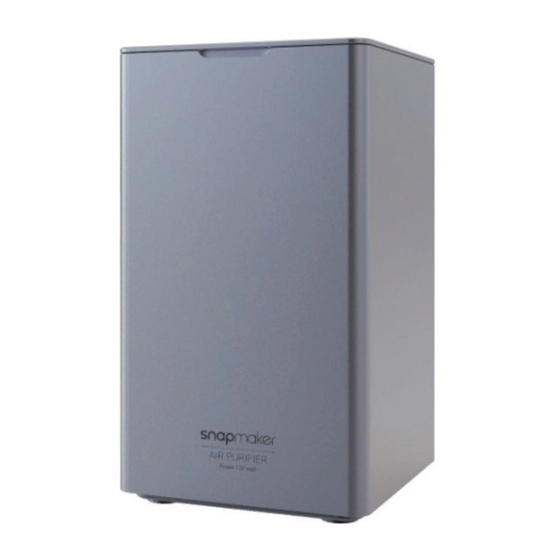

Air Purifier
QUICK START GUIDE
A150
A250
A350
MAKE SOMETHING WONDERFUL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A150 and is the answer not in the manual?

Questions and answers

Related Manuals for Snapmaker A150

Summary of Contents for Snapmaker A150

  • Page 1 Air Purifier QUICK START GUIDE A150 A250 A350 MAKE SOMETHING WONDERFUL...

  • Page 2: Table Of Contents

    Table of Contents 1 Before You Start 1.1 Disclaimer 1.2 Intended Use 1.3 Safety and Compliance 1.4 Specifications 1.5 Parts List 1.6 Used Symbols 2 Assembly 3 Using the Air Purifier 3.1 Scenarios 3.2 Connect to Power 3.3 Check the Assembly 3.4 Update Firmware 3.5 Operation 3.6 Read the Status...
  • Page 3 © 2021 Snapmaker. All rights reserved. This language version of the guide is verified by the manufacturer (Original Instruction). No part of this publication, including pictures, may be reproduced or made public, whether by printing, photocopying, and microfilm or by any other means whatsoever, without the prior written permission of Snapmaker.

  • Page 4: Before You Start

    Before You Start Snapmaker Air Purifier |...

  • Page 5: Disclaimer

    Ensure anyone who uses this product has read and understood this guide before operation. Failure to do so is likely to result in personal injury, inferior results, or damage to Snapmaker products, for which we assume no liability. This guide is for reference use only, and Snapmaker doesn't in any way make any warranty, express or implied, or assume any legal responsibility for the accuracy, completeness, or currency of the information provided.

  • Page 6: Specifications

    24 V DC Note: Different from the Enclosure, the Air Purifier is for all three models of Snapmaker 2.0. As such, even if this guide uses Snapmaker 2.0 A350 and the A350 Enclosure for illustration, the content applies to the other two models.

  • Page 7: Parts List

    Before You Start 1.5 Parts List Air Purifier × 1 Cover × 1 Filter Cartridge × 1 Hose × 1 Hose Clamp × 2 Quick Start Guide × 1 Connecting Cable × 1 Power Adapter × 1...

  • Page 8: Used Symbols

    Failure to follow this instruction might result in severe personal injury. Failure to follow this instruction might result in malfunction, damage Caution to the machine or workpiece, or slight personal injury. Tells you practical advice. Direction Ensure the highlighted part is facing the right way. Snapmaker Air Purifier |...

  • Page 9: Assembly

    Assembly Assembly...
  • Page 10 Make sure you have read the Quick Start Guides for the machine and the Enclosure. For the latest versions, visit our website: https://snapmaker.com/product/snapmaker-2/downloads. | Enclosure | A350 QUICK START GUIDE QUICK START GUIDE A250 / A350 Make Something Wonderful MAKE SOMETHING WONDERFUL Do not turn on the machine.
  • Page 11 Assembly Connect one end of the cable to the Air Purifier, and thread the other end into the snap bushing of the Enclosure. Air Purifier × 1 Connecting Cable × 1...
  • Page 12 Should you use the Emergency Stop Button with the Air Purifier, you will need a CAN Hub; otherwise you won’t be able to use them at the same time. For how to connect the cables when you have a CAN Hub, see its Quick Start Guide. Snapmaker Air Purifier |...
  • Page 13 Hose × 1 Note: Snapmaker has no control over how our users use our machines, and what materials users choose to print with or machine on. In order to ensure the ultimate safety of all users in all situations, we recommend that you...

  • Page 14: Using The Air Purifier

    Using the Air Purifier Snapmaker Air Purifier |...

  • Page 15: Scenarios

    Using the Air Purifier 3.1 Scenarios 3.1.1 Laser Engraving The Air Purifier is on by default because laser engraving will produce toxic chemicals such as formaldehyde. 3.1.2 3D Printing The Air Purifier is off by default because turning it on is likely to affect printing temperature and therefore affect the quality of the print.

  • Page 16: Connect To Power

    3.2 Connect to Power Connect the power adapter for the Air Purifier as illustrated. Then turn on the machine and the Air Purifier. Power Adapter × 1 Snapmaker Air Purifier |...

  • Page 17: Check The Assembly

    Using the Air Purifier 3.3 Check the Assembly Ensure the machine, Enclosure, and Air Purifier are assembled and connected properly as illustrated.

  • Page 18: Update Firmware

    Touchscreen > Tap Settings > Firmware Update > Check for Updates > Update Now > Complete. USB Flash Drive : From https://snapmaker.com/product/snapmaker-2/downloads download firmware > Insert the USB flash drive into the Controller > Turn on the machine > Swipe left on the Touchscreen >...

  • Page 19: Operation

    Using the Air Purifier 3.5 Operation 3.5.1 Before Use On the Touchscreen, swipe left to view the App List, tap Air Purifier > Power and you will be able to turn the Air Purifier on or off.
  • Page 20 Swipe left, tap Air Purifier at the bottom right, and you will be able to turn the Air Purifier on or off, and adjust the fan speed. The higher the fan speed, the higher the exhaust rate. Snapmaker Air Purifier |...
  • Page 21 Using the Air Purifier 3.5.3 After Use By default, the Air Purifier will keep running after you finish machining or printing, as long as it is connected to power. To change this setting, tap Settings > Air Purifier Settings > Auto Turn off. When the switch is toggled on, the Air Purifier will keep running for five minutes upon finishing each session, and then automatically turn off.

  • Page 22: Read The Status

    • The Filter Cartridge is taken out. White light flowing • The Air Purifier is connected to power but not connected to the Controller. White light breathing • The Air Purifier is connected to power and working normally. Snapmaker Air Purifier |...

  • Page 23: Filter Cartridge Replacement

    Using the Air Purifier Filter Cartridge Replacement...
  • Page 24 How It Works: the Snapmaker Filter Cartridge The Pre-filter and the Activated Carbon Filter captures larger particles passing through the Air Purifier. The HEPA Filter traps fine particles, and then releases filtered air to the outside. DIRTY AIR PRE-FILTER ACTIVATED CARBON...
  • Page 25 Filter Cartridge Replacement How It Works: Filter Life Detection Accumulated particles will eventually clog the filter, and will cause the current flowing through the blower to change. The firmware then judges where the electric current value falls into among three of the pre-defined value ranges, thus knowing the filter life. The machine will prompt you to replace the cartridge when its life is running low.
  • Page 26 How to Replace Open the lid, and take out the cover. Cover × 1 Remove the Filter Cartridge. Filter Cartridge × 1 Snapmaker Air Purifier |...
  • Page 27 Filter Cartridge Replacement Put in the replacement cartridge and ensure the handle strings face upward. Put the cover back and close the lid.

  • Page 28: Resources

    For Quick Start Guides and User Manuals: https://support.snapmaker.com/hc/en-us/categories/360005617793-Download. For general information or technical support: support@snapmaker.com. For sales inquiries: sales@snapmaker.com. For product purchases: https://shop.snapmaker.com. Share anything you want in our forum: https://forum.snapmaker.com. Share anything you want via the following channels: Snapmaker Air Purifier |...
  • Page 29 “You don't need a weatherman to know which way the wind blows.” ― Bob Dylan Original Instruction Y.3.B.A.0043-01 V1.0.0...
