Vortex Radian TRH-LVL1 Product Manual page 2

Quick-Release
Locking Knob
Leveling Head
Locking Knob
2

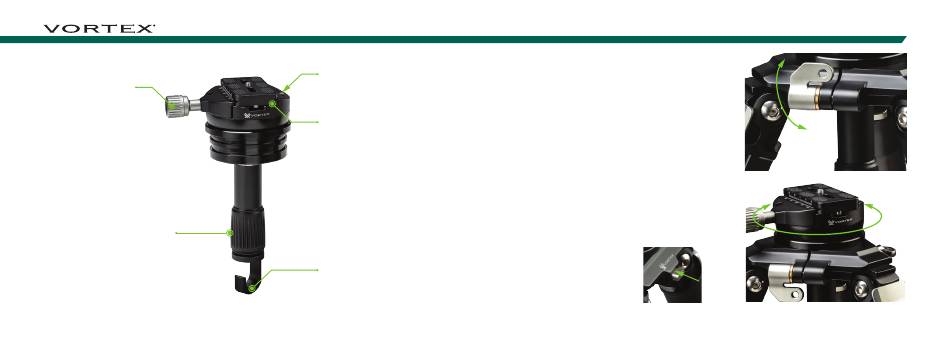

Attaching/Removing the Leveling Head
Bubble Level
To mount the leveling head to the tripod:
1. Lift the Quick-Release Locking Latch on the tripod.
2. Press and hold the Quick-Release Button and fully
Quick-Release Plate
3. Rotate the Quick-Release Locking Latch down to
4. To remove the leveling head, follow these steps in
NOTE: If needed, the locking latch can be repositioned
by shifting the latch to the left and rotating the latch
up/down to reposition.
Counterweight Hook
To help stabilize the tripod in windy
conditions, hang a weight from the
Counterweight Hook.
seat leveling head into the tripod. Once seated, the
leveling head can be oriented in any direction.
the locked position.
reverse order.
Press the Quick-Release
Button on the tripod to seat
the leveling head.
Radian
™ TRIPOD LEVELING HEAD
Quick-Release
Locking Latch
3
