- Page 1 ® REd Dot Scope Viper ® red dot...

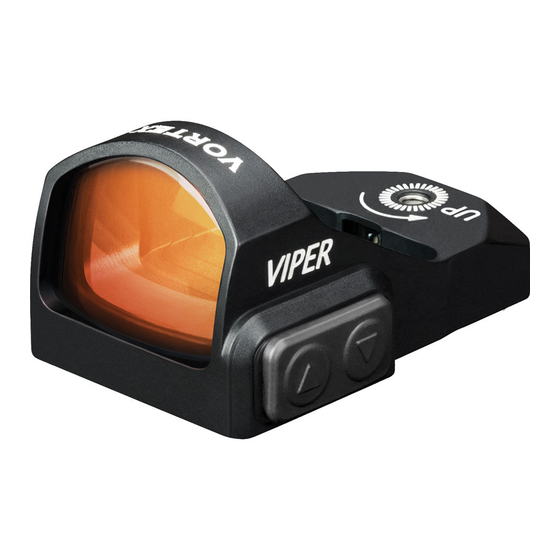

- Page 2 VIPER RED DOT Anti-reflective lens coating on lens The Viper® Red Dot combines speed and simplicity surface for brighter views in a tiny, powerful package. The 6 MOA dot diameter gets you on target fast. ArmorTek protects exterior lens from ®...
- Page 3 VIPER RED DOT Protective Cover Battery Remove cover when using or adjusting Viper red dot. To install, place the battery in the circular slot with Please note that installing the cover does NOT shut numbers facing outward. Attach the body to the the Viper off.
- Page 4 VIPER RED DOT Powering Up Windage and Elevation Adjustment The Viper features adjustable elevation and windage To turn the Viper on, press either the up or down dials with 1 MOA marks. arrow. To turn off, press and hold the down arrow for five seconds.
-
Page 5: Mounting Options
IPER In addition to the supplied low rail mount, an The Viper red dot is shipped from the factory with optional riser mount places the Viper red dot at a low rail mount that clamps to both a Weaver or correct height for AR-15 rifl es. - Page 6 VIPER RED DOT ighting After mounting, an initial sight-in of the Viper red 2. Fire a three-shot group at final preferred sight-in dot at 25 yards will be helpful. Final sight-in should distance (25-50 yards). be done at the desired distance (typically 25-50 •...
-
Page 7: Troubleshooting
Troubleshooting Cleaning If the red dot does not illuminate, please check the The Viper red dot will require very little routine following before returning the red dot for service: maintenance other than periodically cleaning the exterior lenses. If desired, the exterior lens may be •... - Page 8 Important Promise to you—a Very Important Person. Rest assured that in the event your optic becomes damaged or defective, Vortex Optics will repair or replace it at no charge to you. If we cannot repair your riflescope, we will replace it with a riflescope in perfect working order and in equal or better physical condition.
- Page 9 ® REd Dot Scope Manual #VRD-RD-15A © Vortex Optics USA...
