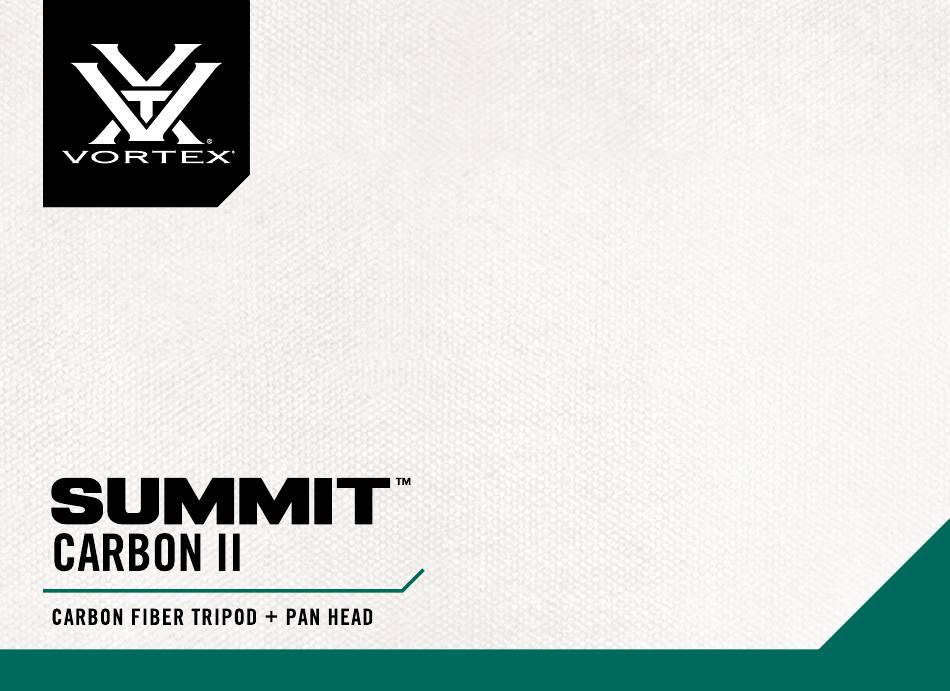

- Page 1 PRODUCT MANUAL...
- Page 2 SUMMIT ™ CARBON II SPECIFICATIONS Quick-Release Locking Knob Center Column Height Tilt/Panning Locking Handle LEG MATERIAL Carbon Fiber Adjustment Knob MAXIMUM OPERATING HEIGHT 53.3" (135.4cm) 3-Angle Leg MINIMUM OPERATING HEIGHT 6.3" (16cm) Pivot Lock MAXIMUM CENTER COLUMN EXTENSION 9.3" (23.5cm) FOLDED DIMENSIONS (HxW) 18.1"...
- Page 3 SUMMIT ™ CARBON II Adjusting Leg Section Length BASIC ADJUSTMENTS Rotate Leg Lock Each of the four tripod leg sections can be extended to adjust 1/4 turn to lock Tilt/Panning Action the tripod’s height. leg in place. To adjust the length of a leg section: •...
- Page 4 Quick-Release Locking Knob clockwise to securely Lifetime Warranty. lock the plate in the head. Note: To mount binoculars to the tripod, a binocular adapter is required. Purchase Vortex ® binocular adapters service@VortexOptics.com • 1-800-4VORTEX from your local dealers.
- Page 5 M-00301-1 © 2021 Vortex Optics ® Registered Trademark and TM Trademark of Vortex Optics. Patent Pending...
