Summary of Contents for Vortex Radian TRH-LVL1

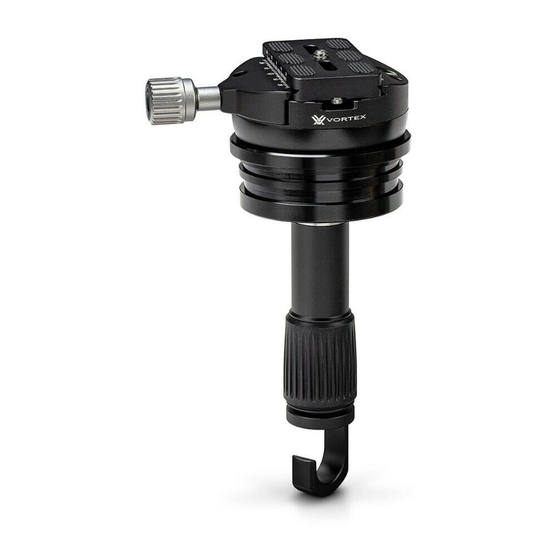

- Page 1 Radian ™ TRIPOD LEVELING HEAD PRODUCT MANUAL...
- Page 2 Radian ™ TRIPOD LEVELING HEAD Attaching/Removing the Leveling Head Quick-Release Bubble Level To mount the leveling head to the tripod: Locking Knob 1. Lift the Quick-Release Locking Latch on the tripod. 2. Press and hold the Quick-Release Button and fully seat leveling head into the tripod.
-
Page 3: Basic Adjustments
Adjust to your desired position and lock the leveling head. NOTE: To mount binoculars to the tripod, a binocular Quick- Quick-Release Plate adapter is required. Purchase Vortex ® binocular adapters • To lock the leveling head, rotate the Leveling Head Release and Mount Bolt from your local dealers. - Page 4 Radian ™ TRIPOD LEVELING HEAD VIP WARRANTY OUR UNCONDITIONAL PROMISE TO YOU. We promise to repair or replace the product. Absolutely free. Unlimited Unconditional Lifetime Warranty service@VortexOptics.com • 800-426-0048 Note: The VIP Warranty does not cover loss, theft, deliberate damage, or cosmetic damage not affecting product performance.
- Page 5 M-00297-0 © 2020 Vortex Optics ® Registered Trademark and TM Trademark of Vortex Optics.
