Summary of Contents for Supermicro Intel X12

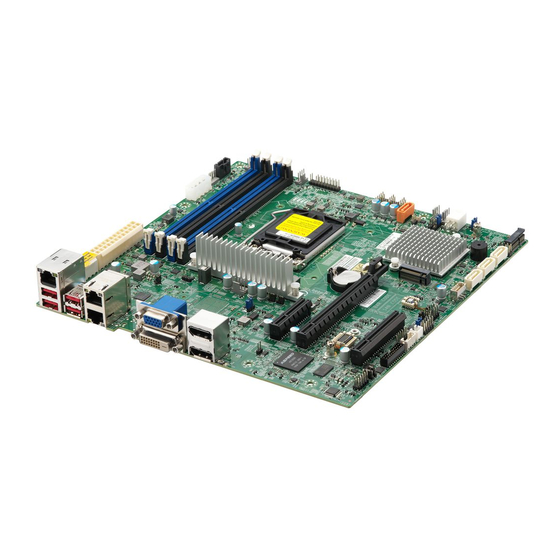

- Page 1 Intel® Nic Configuration the X12 Motherboards USER'S GUIDE Revision 1.0...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
-
Page 3: Conventions Used In The Manual
This user's guide is written for system integrators, IT technicians and knowledgeable end users. It provides information and instructions on how to configure Intel Network Interface Card (NIC) settings on Supermicro's X12 DP/MP motherboards. About Intel Network Interface Card (NIC) Configuration This user's guide describes the settings of onboard Intel®... - Page 4 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
- Page 5 Preface Table of Contents Preface Chapter 1 Configuring Network Interface Card (NIC) Settings 1.1 Network Interface Card (NIC) Settings ................6...
- Page 6 Super Intel® NIC Configuration User's Guide for the X12 DP/MP Motherboards Chapter 1 Configuring Network Interface Card (NIC) Settings This chapter describes the settings of onboard Intel LAN devices via the BIOS Setup utility supported by the Unified Extensible Firmware Interface (UEFI) driver. 1.1 Network Interface Card (NIC) Settings Press <Del>...
- Page 7 Chapter 1: Configuring Network Interface Card (NIC) Settings Onboard LAN1 Option ROM (Available when any NIC is detected by the system) Use the arrow keys to select Onboard LAN1 Option ROM and press <Enter>. The options are Disabled and EFI. Set this feature to EFI. Note: If Onboard LAN1 Option ROM is set to EFI, all features for onboard LAN op- tion ROM will be set to EFI by the EFI driver.
- Page 8 Super Intel® NIC Configuration User's Guide for the X12 DP/MP Motherboards For the changes to take effect, press <F4> to save the settings and exit the BIOS Setup utility. Press <Del> during system boot to enter the BIOS Setup utility. Navigate to the Advanced tab.
- Page 9 Chapter 1: Configuring Network Interface Card (NIC) Settings Use the arrow keys to select the desired onboard LAN device as shown below. Press <Enter> and the following screen will appear. It displays the detailed information for the selected onboard LAN device.
- Page 10 Super Intel® NIC Configuration User's Guide for the X12 DP/MP Motherboards Blink LEDs This feature allows the user to set the LED blink duration (in seconds). The valid range is 0~15 (seconds). NIC Configuration Use the arrow keys to select NIC Configuration.
- Page 11 Chapter 1: Configuring Network Interface Card (NIC) Settings Press <Enter> and the following screen will appear. Wake On LAN Use the arrow keys to select "Wake On LAN" and press <Enter>. The following screen will appear. The options are Disabled and Enabled. Set this feature to support system wake-up via the selected LAN device.
