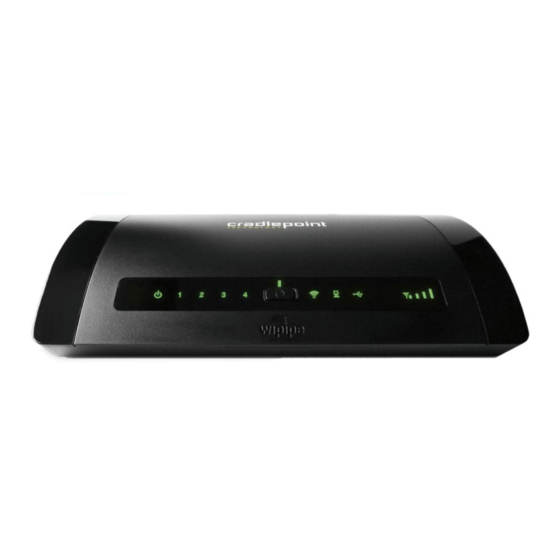

Cradlepoint MBR95 Product Manual

Wireless 4g/3g router
Hide thumbs Also See for MBR95:
Table of Contents

Advertisement

Quick Links

See also: Setup Manual , Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBR95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cradlepoint MBR95

Summary of Contents for Cradlepoint MBR95

  • Page 2: Manual Revisions

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 CradlePoint reserves the right to revise this publication and to make changes in the content thereof without obligation to notify any person or organization of any revisions or changes. Revision Date July 19, 2011 CradlePoint and the CradlePoint logo are registered trademarks of CradlePoint, Inc.

  • Page 3: Table Of Contents

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 1 INTRODUCTION ... 3 1.1 P ... 3 ACKAGE ONTENTS 1.2 S ... 3 YSTEM EQUIREMENTS 1.3 MBR95 O ... 3 VERVIEW 2 HARDWARE OVERVIEW ... 5 2.1 P ORTS UTTONS WITCHES 2.2 LED...
  • Page 4 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 9 GLOSSARY... 103 10 APPENDIX ... 117 10.1 R ... 117 EGULATORY NFORMATION 10.2 W ... 117 ARRANTY NFORMATION 10.3 S ... 118 PECIFICATIONS © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 5: Introduction

    Create secure instant networks anywhere you receive mobile broadband signal. The most powerful feature of the MBR95 is its ability to use USB Mobile Broadband Data Modems to create instant secure networks, plus traditional wired networking options like Cable, DSL, or Satellite.

  • Page 6: Enhanced Wifi

    CRADLEPOINT MBR1400 | USER MANUAL Firmware ver. 3.2.2 CradlePoint routers are built to work with most popular 4G/3G USB Modems from: AT&T, Bell Canada, Clearwire, Cricket, Rogers, Sprint, T-Mobile, Telus, US Cellular, Verizon Wireless, & Virgin Mobile, as well as most Cable, DSL, and Satellite providers.

  • Page 7: Hardware Overview

    CRADLEPOINT MBR1400 | USER MANUAL Firmware ver. 3.2.2 2 HARDWARE OVERVIEW © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 5...

  • Page 8: Ports, Buttons, And Switches

    CRADLEPOINT MBR1400 | USER MANUAL Firmware ver. 3.2.2 2.1 Ports, Buttons, and Switches © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 6...

  • Page 9: Leds

    CRADLEPOINT MBR1400 | USER MANUAL Firmware ver. 3.2.2 2.2 LEDs Power: The MBR95 must be powered using an approved 12V DC power source. © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 7...
  • Page 10  No Light = Not receiving power. Check that the unit is connected to an outlet.  Amber = Attention. Check router status page. Active Ethernet Port Connections – 1-4 LAN: Indicates a connected device on the 1-4 LAN ports on the MBR95.  Blue = Connected to an active 10/100 Ethernet interface.
  • Page 11 CRADLEPOINT MBR1400 | USER MANUAL Firmware ver. 3.2.2 Mobile Broadband Modem (USB) – WAN: Indicates the status of a USB modem connected to the MBR95.  Blue = Modem has established an active 4G connection.  Blinking Blue: Modem is connecting to 4G.

  • Page 12: Quick Start

    CRADLEPOINT MBR1400 | USER MANUAL Firmware ver. 3.2.2 3 QUICK START 3.1 Basic Setup 1) Connect the Router to a Modem or Data Source: Your router requires an internet source. Insert a supported USB modem; connect a Cable, DSL, or Satellite modem to the Blue Ethernet WAN port; or connect to an available WiFi source.

  • Page 13: Connect To A Computer Or Other Device

    NOTE: If more than one MBR95 wireless router is visible, you can find the correct unit by checking for its SSID (service set identifier; the unique name of the local network). The SSID can be found on the bottom of the router in the form MBR95-xxx, where ― xxx‖ is the last 3 digits of the router‘s MAC address.
  • Page 14 Default password can be found on the bottom of the MBR95. Then click the LOGIN button.  When you log in for the first time, you will be automatically directed to the First Time Setup Wizard. Follow the instructions given with the Wizard or see First Time Setup Wizard.
  • Page 15 If you used the First Time Setup Wizard, you might have changed the ― WiFi Network Name‖ or the ―Se curity Mode‖ password. If so, you will need to reconnect to the MBR95 network.  Find the network. Look for your new personalized network name (or the default SSID of the form ―M BR95-...

  • Page 16: Common Problems

    If your USB Modem has not been updated recently, it is recommended that you do so if it is having trouble connecting to the MBR95. Insert your USB data modem into your PC and access the internet using the software provided by your cellular carrier.
  • Page 17 If you are still unable to access the internet after following the above directions, contact CradlePoint Technical Support for further assistance. © 2011 CRADLEPOINT, INC. PLEASE VISIT http://www.cradlepoint.com/support/mbr95 HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES and scroll over firmware at the bottom of...
  • Page 18 CRADLEPOINT MBR1400 | USER MANUAL Firmware ver. 3.2.2 3.3.2 You are Connected to the Router but Cannot Connect to the Internet The status LEDs of your router will give you an indication whether or not a proper connection is being made. See the LED STATUS definitions below: If the USB data modem LEDs are not illuminated, your modem is not connected and online.
  • Page 19 Connection Manager and find the Ethernet connection under WAN Interfaces. If it says ―IP conflict‖ you will need to change the IP address of the MBR95 router from ―1 92.168.0.1‖. A suggested IP address is ―19 2.168.10.1‖.  Change the IP address by going to Network Settings→ WiFi / Local Network. Find the IP address under ―LA N Settings‖...

  • Page 20: Web Interface -- Essentials

     Status  Network Settings  Internet  System Settings Click on any of the 5 tabs to open a dropdown menu with further options for the administration of the MBR95. © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 21: Administrator Login

    The Administrator Login page will appear. Log in using your administrator password. Initially, this password can be found on the bottom of the MBR95 unit as the Default Password. This password is also the last eight digits of the unit‘s MAC address.
  • Page 22 If you have forgotten your personalized password, you can reset the MBR95 to factory defaults. When you reset the router, the administrator password will revert back to the Default Password. Press and hold the reset button on the router unit until the lights flash (10 seconds).

  • Page 23: Getting Started - First Time Setup

    The First Time Setup Wizard will help you customize the name of your wireless network, change passwords to something you choose, and establish an optimal WiFi security mode. The MBR95 comes out of the box with a unique password at WPA1/WPA2 WiFi security level.
  • Page 24 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 6) CradlePoint recommends that you customize your WiFi Network Name. Type in your personalized Network name here. You can also enable the Guest Network feature (for more configuration options, see Network Settings → WiFi / Local Network and the Wireless (WiFi) Network Settings manual).
  • Page 25 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Choose a personalized WPA PASSWORD or WEP KEY. This password will be used to connect devices to the router‘s WiFi broadcast once the security settings have been saved. WPA Password: The WPA Password must be between 8 and 64 characters long. A combination of upper and lower case letters along with numbers and special characters is recommended to prevent hackers from gaining access to your network.
  • Page 26 Realm for your carrier. This setting ensures that the modem, when attached to the router, will properly connect to your carrier‘s wireless broadband service. The MBR95 will default to the Sprint Realm. Select your carrier from the dropdown menu (options shown below).
  • Page 27 Please record these settings for future access. You may need this information to configure other wireless devices. NOTE: If you are currently using the MBR95 WiFi network, reconnect your devices to the network using the new wireless network name and security password.

  • Page 28: Quick Links

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 4.3 Quick Links The black bar across the top provides quick access to important information and controls. Internet Connection This links to the Connection Manager (Internet → Connection Manager) where you can manage your internet sources.

  • Page 29: Basic Mode Vs. Advanced Mode

    MBR95 | USER MANUAL Firmware ver. 3.2.4 4.4 Basic Mode vs. Advanced Mode For less complex uses, the MBR95 can be controlled within Basic Mode. Clicking on the Basic Mode button switches the complete Web interface to Advanced Mode. Advanced Mode provides several additional features.

  • Page 30: Network Settings Vs. Internet

    LAN (Local Area Network) Examples:  If you want to change the content filtering settings for the network created by the MBR95, go to the Network Settings tab.  If you have multiple internet sources (such as a USB modem and an Ethernet connection) for which you would like to set priority levels, go to the Internet tab.

  • Page 31: Status

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5 STATUS The Status tab displays information—no adjustments can be made from within this tab. It provides access to 7 submenu options:  Client List  GPS  Router Console  Internet Connections ...

  • Page 32: Client List

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.1 Client List The Client List displays the specifications of each device connected your Wireless and Wired clients. Wireless Clients. For each device using a wireless connection your MBR95, information is displayed: Hostname, IP, MAC, Connection, and Time Online.
  • Page 33 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 poor. Signal quality can be reduced by distance, by interference from other radio-frequency sources (such as cordless telephones or neighboring wireless networks), and by obstacles between the router and the wireless device.

  • Page 34: Gps

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.2 GPS If GPS support is enabled and a modem capable of providing GPS coordinates is connected, this page will show a graphical view of your router's location. See the GPS section in System Settings →...

  • Page 35: Router Console

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.3 Router Console The Router Console functions as a dashboard for the router, bringing various types of fundamental information together in one place. Once you have completed initial setup, every time you log in you will automatically be directed to this Router Console page.
  • Page 36 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Router Information  Product: MBR95  Date: Year-month-day-hours-minutes-seconds for the most recent firmware upgrade.  Firmware: Gives the number of the current firmware version. To check for Firmware upgrades, see System Settings → System Software.
  • Page 37 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 WiFi Network  WiFi Radio: Enabled/Disabled  Channel: 1-11  Network Name  Clients: Number of clients.  Security: WPA2/WPA1/WEP  Guest WiFi: Disabled/Enabled. If Enabled, also shows: o Guest Network Name o Guest Security To configure WiFi network settings see Network Settings →...

  • Page 38: Internet Connections

    The Internet Connections submenu option provides a list of attached WAN devices used as the internet source for the MBR95. Select one of these devices to see detailed information about that particular device. For each type of device, different information will be included in the Device Information section. Possible devices include: ...
  • Page 39 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.4.1 Ethernet Diagnostics  Connection State (connected, idle, etc.) General Information  Protocol Ethernet Static  Product Built-in Ethernet  Type Ethernet  Port  Unique Identifier Statistics  Outgoing Bits/Second  Incoming Bits/Second ...
  • Page 40 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.4.2 WiFi as WAN Diagnostics  Connection State (connected, idle, etc.) General Information  Product Wireless As WAN  Unique Identifier  Type wwan IP Information  Netmask  IP Address  Gateway ©...
  • Page 41 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.4.3 GSM Modem (Nokia Datacard) Diagnostics  Signal Error Rate  Modem Firmware Version  Battery Status  Battery Level  Carrier Status  Signal Strength(dBm)  PIN Status  Connection State (connected, idle, etc.)
  • Page 42 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4  Incoming Bits/Second  Incoming Bytes  Outgoing Bytes © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 40...
  • Page 43 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.4.4 EVDO Modem: (MC760 Comcast) Diagnostics  Modem Firmware Version  PRL Version  Service Display EVDO  Carrier Status  Signal Strength(dBm)  Connection Type CDMA  Connection State (connected, idle, etc.)
  • Page 44 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4  Outgoing Bytes © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 42...
  • Page 45 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.4.5 WiMAX Modem (U300 – 4G) Diagnostics For a WiMAX modem, the CINR and Signal Strength values are important as they show how strong the signal is and that has significant effects on how much data the router can download or send.
  • Page 46 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4  Type WiMAX  Port  Manufacturer Franklin Wireless Corporation Statistics  Outgoing Bits/Second  Incoming Bits/Second  Incoming Bytes  Outgoing Bytes © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...
  • Page 47 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.4.6 LTE Modem (PANTECH UML290) Diagnostics  Home Address  MN-HA SPI  Modem Firmware Version  Battery Status  MN-HA SS  Network Address Identifier (NAI)  Signal Strength(dBm)  Rev Tun ...
  • Page 48 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 General Information  Product PANTECH UML290  Protocol IP DHCP  Unique Identifier  ESN/IMEI  Model UML290VW  Type modem  Port  Manufacturer Pantech, Incorporated IP Information  Netmask  IP Address ...

  • Page 49: Statistics

     LAN, or Local Area Network, is the network you have created through the MBR95.  WAN, or Wide Area Network, is the internet source the MBR95 is using to create a new LAN. Possible WAN sources include: Ethernet, WiFi, USB modems, and ExpressCard modems.

  • Page 50: System Logs

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 5.6 System Logs The router automatically logs (records) events of possible interest in its internal memory. If there is not enough internal memory for all events, logs of older events are deleted, but logs of the latest events are retained.
  • Page 51 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 49...

  • Page 52: Network Settings

    6 NETWORK SETTINGS The Network Settings tab provides access to 8 submenu options for administering the following functions/tasks. These functions are all related to controlling the LAN (Local Area Network), the network you set up with the MBR95.  Content Filtering ...

  • Page 53: Content Filtering

    CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.1 Content Filtering You have two main options for filtering content in the network created through your MBR95. 1) Domain / URL Filter Rules: Create list disallowed websites (facebook.com, example). 2) OpenDNS Content Filtering: Allows several options for filtering rules.
  • Page 54 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 In addition to the standard filtering levels, you have the following options for filter control: Custom OpenDNS: To use the Custom OpenDNS setting you need to first create an OpenDNS account. You can create an...

  • Page 55: Dhcp Server (Advanced Mode Only)

    The default values are almost always sufficient (default: 192.168.0.72 to 192.168.0.200). Example: The MBR95 uses an IP address of 192.168.0.1. A computer designated as a Web server has a static IP address of 192.168.0.3. Another computer is designated as an FTP server with a static IP address of 192.168.0.4. The starting IP address for the DHCP server needs to be 192.168.0.5 or higher.
  • Page 56 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 Active Leases: A list of devices that have been provided DHCP leases. The DHCP Server automatically assigns these leases. This list will not include any devices that have static IP addresses on the network.

  • Page 57: Dns (Advanced Mode Only)

    DNS, or Domain Name System, is a naming system that translates between domain names (www.cradlepoint.com, for example) and internet IP addresses (206.207.82.197). A DNS server acts as an internet phone book, translating between names that make sense to people and the more complex numerical identifiers. The DNS page for the MBR95 has these distinct functions: ...
  • Page 58 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.3.2 DynDNS Configuration The Dynamic DNS feature allows you to host a server (Web, FTP, Game Server, etc.) using a domain name that you have purchased (www.yourname.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses.
  • Page 59 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 Password: Enter the password or key provided by the Dynamic DNS service provider. 6.3.3 Advanced DynDNS Settings Update period (hours). (Default: 576) The time between periodic updates to the Dynamic DNS, if your dynamic IP address has not changed.
  • Page 60 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 ―R e servations‖ section under Network Settings → DHCP Server and reserve the IP address for the device. © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 58...

  • Page 61: Firewall (Advanced Mode Only)

    CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.4 Firewall (Advanced Mode only) The router automatically provides a firewall. Unless you configure the router to the contrary, the router does not respond to unsolicited incoming requests on any port, thereby making your LAN invisible to cyber attackers.
  • Page 62 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 Add New Port Forwarding Rule: page 2  Use Port Range: Changes the selection options to allow you to input a range of ports (if desired).  Internet Port(s): The port number(s) as you want it defined on the internet.
  • Page 63 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.4.2 IP Filter Rules An "Incoming" IP filter rule restricts remote access to computers on your local network. "Outgoing" filter rules prevent computers on your local network from initiating communication to the address range specified in the rule.
  • Page 64 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4  Start Port: 80  End Port: 80  Network Address: 172.22.24.160 (Johnny‘s IP address)  Subnet Mask: 255.255.255.255 (This subnet mask restricts the rule to one single address). © 2011 CRADLEPOINT, INC.
  • Page 65 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.4.3 DMZ (DeMilitarized Zone) A DMZ host is effectively not firewalled in the sense that any computer on the internet may attempt to remotely access network services at the DMZ IP address. Typical uses involve running a public Web server, supporting older games, or sharing files.

  • Page 66: Mac Filter

    CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.5 MAC Filter The MAC Filter allows you to create a list of devices that have either exclusive access (white list) or no access (black list) to your wireless LAN. By default, the list of addresses is designated a ―w h ite list.‖...

  • Page 67: Routing (Advanced Mode Only)

    CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.6 Routing (Advanced Mode only) Add a new static route to the IP routing table or edit/remove an existing route. Static routes are unnecessary for most users. They are typically only used in networks with...

  • Page 68: Wifi / Local Network

    CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.7 WiFi / Local Network This section is used to configure the settings for wireless networks created by your router. Note that changes made in this section may also need to be duplicated on wireless devices that you want to connect to your wireless network.
  • Page 69 Wireless (WiFi) Network Settings By default, the MBR95 has two wireless networks set up: Primary and Guest. ― Primary‖ is the main network for this router. ―Gue st‖ is an additional network that you may enable (this is disabled by default) to allow other people to briefly use your internet connection without knowing your Primary security password.
  • Page 70 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 Security Mode: You have several options for selecting a security mode. The mode you choose depends on the security features your wireless adapters support. If you select one of the security modes and are unable to connect to the router afterwards, you can use the reset buttons to reset the router to its factory default state and try a different security mode instead.
  • Page 71 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.7.3 WiFi Settings Random Channel: Select to randomize the WiFi channel. This makes it less likely that the wireless signal from this router will conflict with another router in the same area. Channel: The WiFi channel corresponds to a frequency the router uses to communicate with other devices.
  • Page 72 DTIM: A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages. When the wireless router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. Wireless clients detect the beacons and awaken to receive the broadcast and multicast messages.
  • Page 73 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 WPS: WiFi Protected Setup is a method for easy and secure establishment of a wireless network. It can be used instead of passwords when connecting clients that support WPS. Short Slot: Slot Time is the period wireless clients use in determining if the channel is free for transmission. Enabling this value allows clients that can utilize a shorter time to do so.
  • Page 74 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 Greenfield Mode: Greenfield mode uses an 802.11n-only preamble to transmit packets that older wireless clients cannot interpret. Use of greenfield mode in a mixed 802.11 environment may result in degraded performance but can improve performance if all devices in the area are 802.11n compatible.

  • Page 75: Wipipe Qos (Advanced Mode Only)

    CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 6.8 WiPipe QoS (Advanced Mode only) When WiPipe QoS (Quality of Service/Traffic Shaping) is enabled, the router will control the flow of internet traffic according to the user- defined rules. In other words, Traffic Shaping improves performance by allowing the user to prioritize applications.
  • Page 76 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 automatic classification will be adequate, and specific Traffic Shaping Rules will not be required. Traffic Shaping supports overlap between rules, where more than one rule can match for a specific message flow. If more than one rule matches, the rule with the highest priority will be used.
  • Page 77 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 The second page allows you to designate the computer(s) on the local network for which you want to adjust traffic priority. NOTE: Leaving a field empty will match any IP address and/or any port number.
  • Page 78 CRADLEPOINT MBR95| USER MANUAL Firmware ver. 3.2.4 The third and last page allows you to designate the network or server on the internet for which you want to shape traffic. NOTE: Leaving a field empty will match any IP address and/or any port number.

  • Page 79: Internet

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 7 INTERNET The Internet tab provides access to 7 submenu items for managing a variety of internet connection options.  Connection Manager  Ethernet Settings  Modem Settings  WiFi as WAN Settings...

  • Page 80: Connection Manager

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 7.1 Connection Manager The router can establish an uplink via the Ethernet WAN port, WiFi as WAN, or modems plugged into a modem port. If the primary WAN connection fails the router will automatically attempt to bring up a new link on another device. This feature is called failover.
  • Page 81 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 7.1.2 Failure Check (Advanced Mode Only) If this is enabled, the router will check that the highest priority active WAN interface can get to the internet even if the WAN connection is not actively being used.
  • Page 82 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 7.1.3 Failback Configuration (Advanced Mode Only) This is used to configure failback, which is the ability to go back to a higher priority WAN interface if it regains connection to its network.

  • Page 83: Ethernet Manager

     WAN (Wide Area Network) is used to connect to another network such as a hotel or office wired network. The WAN connection is used as a possible source of internet for the MBR95.  LAN (Local Area Network) is for connecting a computer or similar device directly to the router with an Ethernet cable.
  • Page 84 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 7.2.3 Only applicable in WAN mode. You have the ability to change this MAC address, but typically this is unnecessary. 7.2.4 Connect Method Only applicable in WAN mode. Your router‘s Ethernet ports...

  • Page 85: Modem Settings

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 7.3 Modem Settings This section shows all attached modems and allows you to change settings. If you have a 3G/4G dual-mode modem it will show both modems using the same USB port.
  • Page 86 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 The modem supports Update/Activate methods: A message will display showing options for each supported method:  Modem Activation / Update: Activate, Reactivate, or Upgrade Configuration.  Preferred Roaming List (PRL) Update  Firmware Update Management Object (FUMO) Click the appropriate icon to start the process.
  • Page 87 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 7.3.2 Modem Connection Settings (Advanced Mode Only) This section changes settings that affect how all modems attempt to connect to the service provider's network. Connection Mode: Typically modem connections are not set to remain on. The router allows you to set the type of reconnection mode.
  • Page 88 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Configuration Rule: First page. Create a name for your rule and the condition for which the rule applies. Rule Name: Create a name meaningful to you. Select each of the following to create a condition for your rule.
  • Page 89 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4  Clear – clearwire-wmx.net  Rover – rover-wmx.net  Sprint 3G/4G – sprintpcs.com  Xohm –xohm.com  BridgeMAXX – bridgeMAXX.com  Time Warner Cable – mobile.rr.com  Comcast – mob.comcast.net TTLS Authentication Mode: TTLS inner authentication protocol.
  • Page 90 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Configuration Rule: Modem Settings AT Dial Script: Enter the AT commands to be used in establishing a network connection. Each command must be entered on a separate line. All command responses must include ― OK‖ except the final command response, which must include ―CON N ECT‖.
  • Page 91 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4  Force EVDO: Connect to CDMA EVDO network only.  Force 1xRTT: Connect to CDMA 1xRTT network only. © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 89...

  • Page 92: Wifi As Wan Settings (Advanced Mode Only)

    WiFi—from a hotel for example—can be used as the internet source for your own private network. When enabled in the WiFi as WAN Settings page, the MBR95 will find possible WiFi sources that you can select and add.
  • Page 93 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 want to connect is invisible. Network Name (SSID): The name that is broadcast from each access point. Network ID (BSSID): The numeric ID of the network. This parameter is required when trying to connect to a hidden network using WiFi as WAN.
  • Page 94 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 7.4.3 Scanning Settings (Advanced Mode Only) Scan Interval: How often WiFi as WAN scans the environment for updates. Scan While Connected: Continue to scan for WiFi as WAN profile updates when connected. Each time a scan occurs the wireless communication of the router will be temporarily interrupted.

  • Page 95: System Settings

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 8 SYSTEM SETTINGS The System Settings tab has 6 submenu items that provide access to tools for broad administrative control of the MBR95:  Administration  Alerts  Managed Services  System Control ...

  • Page 96: Administration

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 8.1 Administration Select the Administration submenu item in order to control any of the following functions:  Web Login  Network Time Protocol  Timezone  Bounce Pages  UPnP  Remote Management 8.1.1...
  • Page 97 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 This is the time zone and daylight savings setting used by the router for its own clock. This can also be controlled in the First Time Setup Wizard. Daylight Savings Time: Select this checkbox if your location observes daylight savings time.
  • Page 98 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 WAN Hostname: This hostname is the DNS name associated with the router's internet connection interface. If DHCP is used on the interface this hostname will be used when requesting a DHCP lease.
  • Page 99 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 o Report only over specific time interval: Restricts the NMEA sentence reporting to a remote server to a specific time interval. 8.1.8 Syslog Settings Enabling this option will send log messages to a specified Syslog server.

  • Page 100: Alerts (Advanced Mode Only)

    You also choose the time you want the Alert sent. 8.2.1 SMTP Mail Server Since the MBR95 does not have its own email server, to receive alerts you must enable an SMTP server. This is possible through most email services (Gmail, Yahoo, etc.)
  • Page 101 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Server Address: smtp.gmail.com Server Port: 587 (for TLS, or Transport Layer Security port; the MBR95 does not support SSL). Authentication Required: For Gmail, mark this checkbox. User Name: Your full email address...

  • Page 102: Managed Services (Advanced Mode Only) Ask Your Cradlepoint Sales Representative For Details

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 8.3 Managed Services (Advanced Mode only) ASK YOUR CRADLEPOINT SALES REPRESENTATIVE FOR DETAILS Managed Services allow you to centralize your router configuration using the WiPipe Central server. WiPipe Central services must be purchased separately.

  • Page 103: System Control

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 8.4 System Control Restore Factory Defaults: changes all settings back to their default values. Reboot The Device: This causes the router to restart. Advanced: Scheduled Reboot and Ping Test Scheduled Reboot: This causes the router to restart at a user-determined time.

  • Page 104: System Software

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 8.5 System Software Firmware Upgrade: This allows the administrator to load new firmware onto the router to add new features or fix defects. If you are happy with the operation of the router, you may not want to upgrade just because a new version is available.

  • Page 105: Glossary

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 9 GLOSSARY 802.11 A family of specifications for wireless local area networks (WLANs) developed by a working group of the Institute of Electrical and Electronics Engineers (IEEE). Access Control List ACL. This is a database of network devices that are allowed to access resources on the network.
  • Page 106 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Authentication To provide credentials, like a Password, in order to verify that the person or device is really who they are claiming to be. Automatic Private IP Addressing APIPA. An IP address that a Windows computer will...
  • Page 107 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 CardBus A newer version of the PC Card or PCMCIA interface. It supports a 32- bit data path, DMA, and consumes less voltage. CAT 5 Category 5. Used for 10/100 Mbps or 1Gbps Ethernet connections.
  • Page 108 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Demilitarized zone DMZ: A single computer or group of computers that can be accessed by both users on the internet as well as users on the Local Network, but that is not protected by the same security as the Local Network.

  • Page 109: Full-Duplex

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Encryption Converting data into cyphertext so that it cannot be easily read. Ethernet The most widely used technology for Local Area Networks. Fiber optic A way of sending data through light impulses over glass or plastic wire or fiber.
  • Page 110 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Half-duplex Data cannot be transmitted and received at the same time. Hashing Transforming a string of characters into a shorter string with a predefined length. Hexadecimal Characters 0-9 and A-F. The action of data packets being transmitted from one router to another.
  • Page 111 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Internet Protocol Security IPsec provides security at the packet processing layer of network communication. Internet Service Provider An ISP provides access to the internet to individuals or companies. Intranet A private network.
  • Page 112 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 LPR/LPD ―Line Printer Requestor‖/‖Line Printer Daemon‖. A TCP/IP protocol for transmitting streams of printer data. MAC Address A unique hardware ID assigned to every Ethernet adapter by the manufacturer. Mbps Megabits per second.
  • Page 113 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Network Interface Card NIC. A card installed in a computer or built onto the motherboard that allows the computer to connect to a network. Network Layer The third layer of the OSI model which handles the routing of traffic on a network.
  • Page 114 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 channel) but can have multiple ports (logical channels) each identified by a number. Point-to-Point Protocol is used for two computers to communicate with each over a serial interface, like a phone line.
  • Page 115 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Session key An encryption and decryption key that is generated for every communication session between two computers. Session layer The fifth layer of the OSI model which coordinates the connection and communication between applications on both ends.
  • Page 116 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 TFTP Trivial File Transfer Protocol is a utility used for transferring files that is simpler to use than FTP but with less features. Throughput The amount of data that can be transferred in a given time period.
  • Page 117 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Wake on LAN Allows you to power up a computer through its Network Interface Card. Wide Area Network. Windows Connect Now. A configuring bootstrapping hardware (access points) and wireless clients, including PCs and other devices.
  • Page 118 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 Yagi antenna A directional antenna used to concentrate wireless signals on a specific location. © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 116...

  • Page 119: Appendix

    CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 10 APPENDIX 10.1 Regulatory Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 120: Specifications

    2 internal 2.4 GHz WiFi antennas (600+ feet range) Special Feature: Use WiFi as a Data Source. ― WiFi-as- WAN‖ mode enables the MBR95 to become a WiFi repeater (using existing WiFi to create secure connections) or use as a WiFi-to-Ethernet adapter for non-WiFi devices.
  • Page 121 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 DETAILS WAN Security NAT, SPI, ALG, inbound filtering of IP addresses, Port Blocking, Service Filtering (FTP, SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, SSH), Protocol filtering, WAN ping (allow/ignore) Redundancy and Availability: Failover/Failback with...
  • Page 122 CRADLEPOINT MBR95 | USER MANUAL Firmware ver. 3.2.4 http://www.cradlepoint.com/ Copyright © 2011 by CradlePoint, Inc. All rights reserved. © 2011 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 120...
