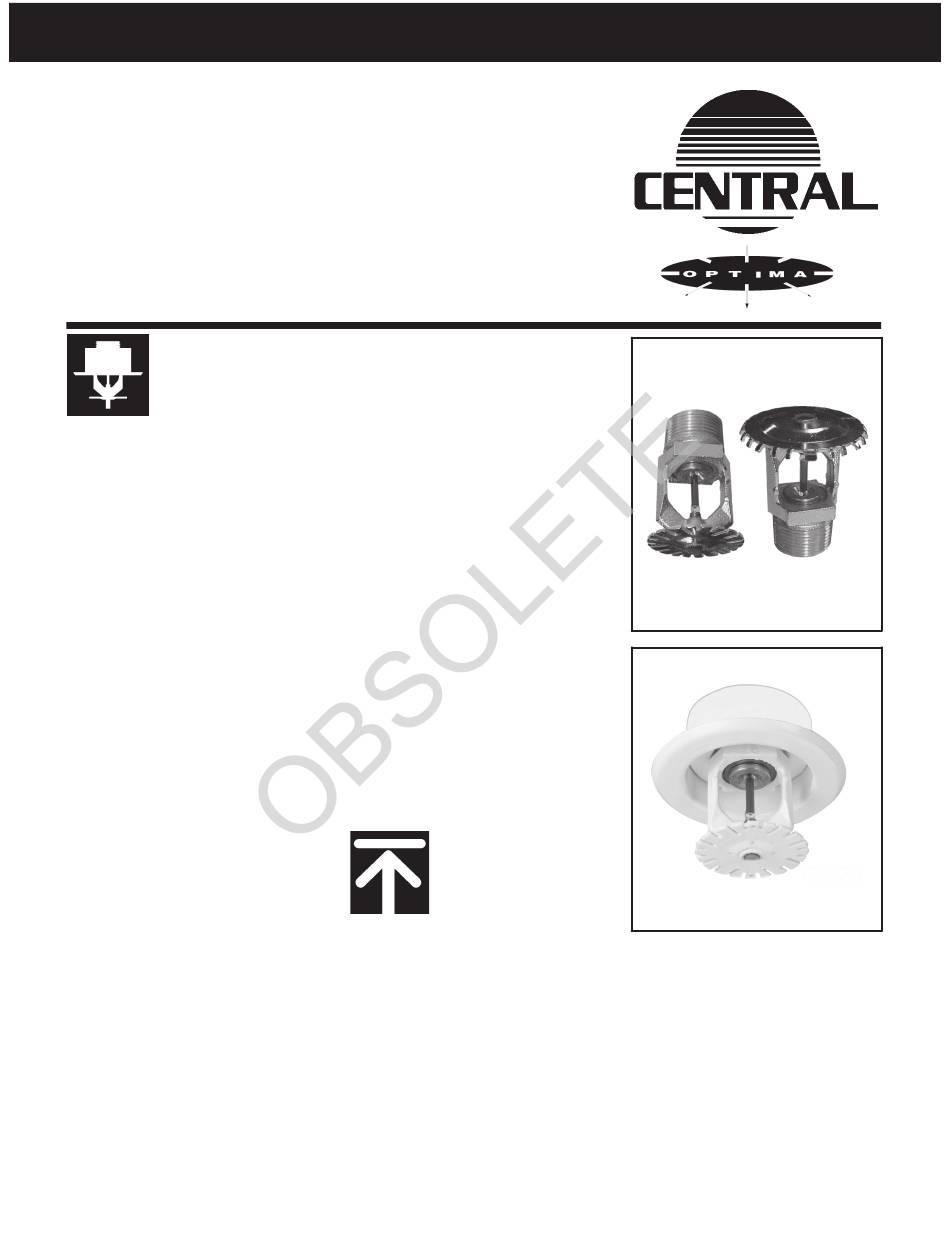

CENTRAL
Model K11 ECOH
Model K14 ECOH
Extended Coverage
Ordinary Hazard Sprinklers
Tyco Fire Products — www.centralsprinkler.com
451 North Cannon Avenue, Lansdale, Pennsylvania 19446
Customer Services/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385
Technical Services: Tel. (800) 381-9312 / Fax: (800) 791-5500
General
Description
The Central Models K11 & K14
ECOH, 11.2 and 14.0 K-Factor,
Standard Response, Extended Cov-
erage Ordinary Hazard (ECOH) Pen-
dent, Recessed Pendent, and Up-
right Sprinklers are decorative glass
bulb sprinklers designed for use in
ordinary hazard occupancies such
as showrooms, retail stores, and
light manufacturing.
They are intended for use in automat-
ic sprinkler systems designed in ac-
cordance with standard installation
rules (e.g., NFPA 13) for the protec-
tion of ordinary hazards up to a maxi-
mum coverage area of 256 ft
2 2
m ) for the K11 and 400 ft
2
m ) for the K14, as compared to the
maximum coverage area of 130 ft
2
(12,1 m ) for standard coverage
sprinklers.
The Models K11 & K14 ECOH Sprin-
klers feature a UL and C-UL Listing
that permits their use with unob-
structed or non-combustible ob-
structed ceiling construction as de-
fined and permitted by NFPA 13.
The Models K11 & K14 ECOH Sprin-
klers have been fire tested to com-
pare their performance to that of
standard spray sprinklers installed at
standard spacings (i.e. 15 feet maxi-
mum on center spacing and 130 sq.
ft. maximum coverage area for ordi-
nary hazard). These tests have
shown that the protection provided
by these ECOH Sprinklers is equal
to or more effective than standard
spray sprinklers.

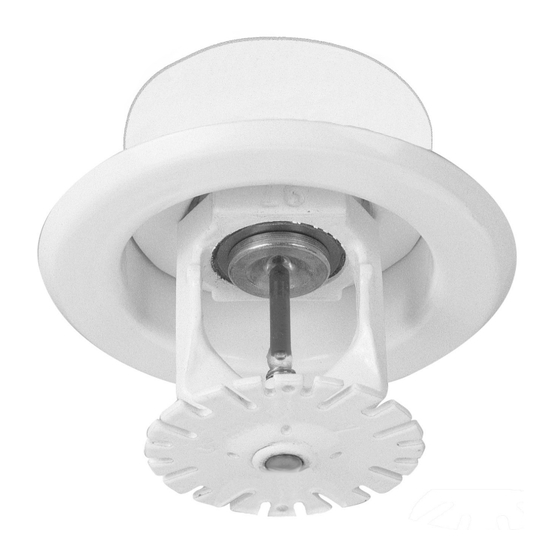

The recessed version of the Models
K11 & K14 ECOH Sprinklers using a
two-piece Series 4211 Recessed Es-
cutcheon provides up to 3/4 inch
(19,1 mm) of total adjustment from
the flush pendent position. The ad-
justment provided by the Recessed
K11 & K14 ECOH
Escutcheon reduces the accuracy to
which the fixed pipe drops to the
sprinklers must be cut.
Operation. The glass bulb contains
a fluid which expands when exposed
to heat. When the rated temperature
is reached, the fluid expands suffi-
ciently to shatter the glass bulb,
which then allows the sprinkler to ac-
tivate and flow water.
WARNINGS
The Models K11 & K14 ECOH Sprin-
klers described herein must be in-
stalled and maintained in compli-
ance with this document, as well as
with the applicable standards of the
National Fire Protection Association,
in addition to the standards of any
other authorities having jurisdiction.
Failure to do so may impair the integ-
rity of these devices.
2
(23,8
(37,2
The owner is responsible for main-
taining their fire protection system
2
and devices in proper operating con-
dition. The installing contractor or
sprinkler manufacturer should be
contacted relative to any questions.
Technical
Data
Sprinkler Identification Numbers
SIN C5137
SIN C5237
SIN C6137
SIN C6237
Approvals
UL and C-UL Listed. FM Approved.
(Refer to Table A. The approvals ap-
ply only to the service conditions indi-
cated in the Design Criteria section.)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
3/4 inch NPT
K11 & K14
K=11.2 Upright
K=11.2 Pendent
ECOH
K=14.0 Upright
K=14.0 Pendent
Pendent,
Recessed &
Upright
Sprinklers
2-01
No. 2-1.1
