Tyco Fire Product STAR SIN S3400 SR Manual

Std. Response - Std. Coverage
Star Galaxy™ SG Easy Guard
K=5.6 Sprinklers With Guards
& Intermediate Level Sprinklers
with Guards
Quick Response - Std. Coverage
Star Galaxy™ SGQR Easy Guard
K=5.6 Sprinklers With Guards
& Intermediate Level Sprinklers
with Guards

GENERAL DESCRIPTION

The Star Galaxy Easy Guard, 5.6 K-Factor, Sprinklers
are standard coverage, glass bulb type spray sprinklers.
The SG (5 mm bulb type) Sprinklers are "standard re-
sponse", and the SGQR (3 mm bulb type) Sprinkler are
"quick response". The Easy Guard Sprinklers provides a
unique factory assembled guard or guard & shield, and
its double groove frame design allows installation of the
sprinkler without having to first remove the guard or
guard & shield, saving time and labor cost of field installa-
tion.
Sprinklers with guards may be located in areas that make
them susceptible to being struck, so as to help prevent
damage to the sprinklers.
Intermediate Level Sprinklers (i.e, sprinklers with shields)
are primarily designed for use in rack storage sprinkler
systems, where their thermally sensitive elements must
be shielded from the water spay of higher elevation sprin-
klers which could operate earlier during a fire. Intermedi-
ate Level Sprinklers are also used in applications such as
beneath open gridded catwalks.

WARNINGS

The Star Galaxy SG Easy Guard Sprinklers described
herein must be installed and maintained in compliance
with this document, as well as with the applicable stand-
ards of the National Fire Protection Association, in addi-
tion to the standards of any other authorities having juris-
diction. Failure to do so may impair the integrity of these
devices.
The owner is responsible for maintaining their fire protec-
tion system and devices in proper operating condition.
The installing contractor or sprinkler manufacturer should
be contacted relative to any questions.
TYCO FIRE PRODUCTS
Customer Service/Sales: Tel: (800) 558-5236 • Fax: (414) 570-5010
Technical Services: Tel: (800) 381-9312 • Fax: (800) 791-5500

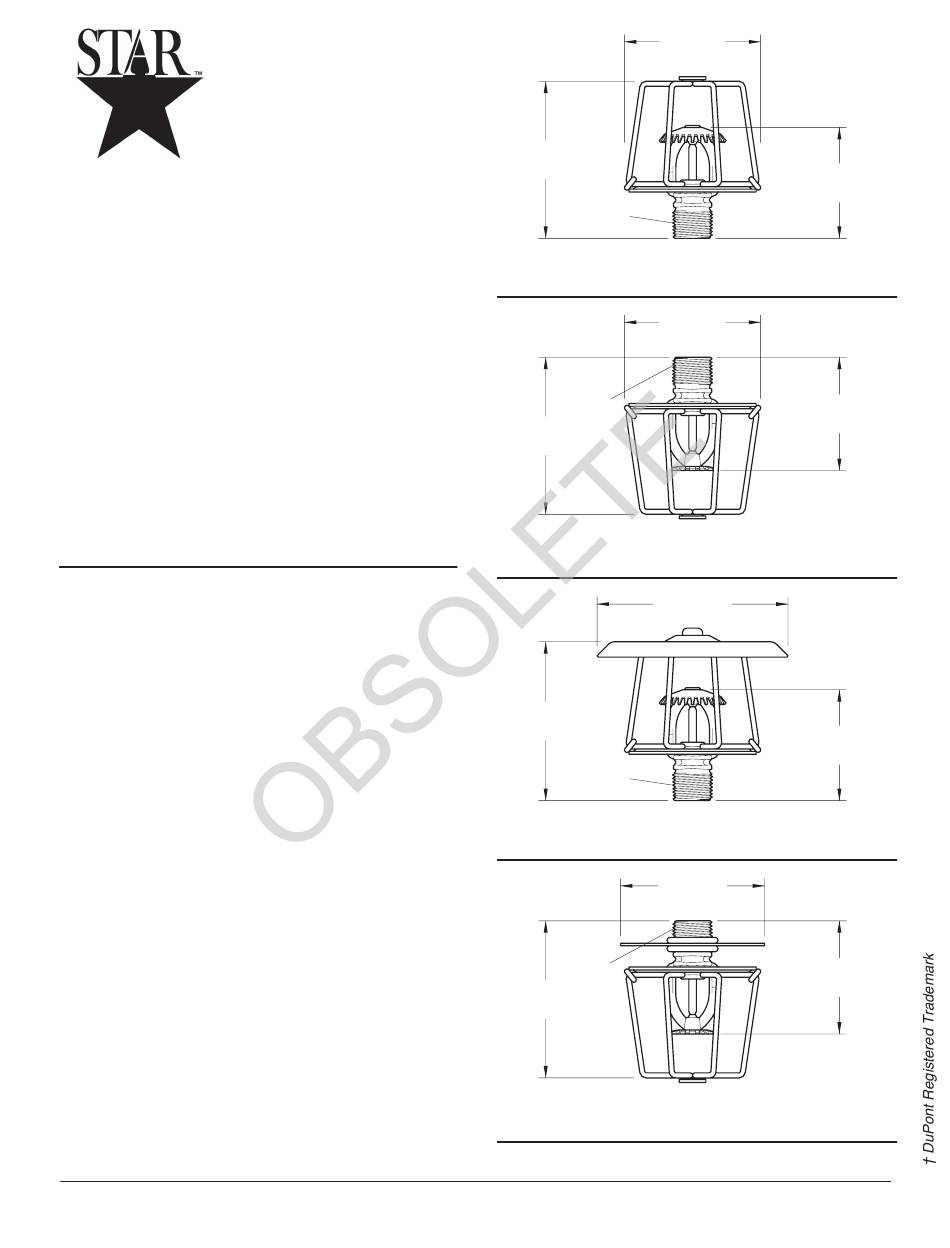

2-7/8"
(73.0 mm)
3-1/4"
(82.6 mm)
1/2" NPT
SIN S3400 SR Upright With Guard
SIN S3472 QR Upright With Guard
2-7/8"
(73.0 mm)
1/2"
NPT
3-1/4"
(82.6 mm)
SIN S3401 SR Pendent With Guard
SIN S3471 QR Pendent With Guard
4" DIA.
(101.6 mm)
3-5/16"
(84.1 mm)
1/2" NPT
SIN S3500 SR Upright With Guard and Shield
SIN S3572 QR Upright With Guard and Shield
3" DIA.
(76.2 mm)
1/2"
NPT
3-1/4"
(82.6 mm)
SIN S3501 SR Pendent With Guard and Shield
SIN S3571 QR Pendent With Guard and Shield
2-5/16"
(58.7 mm)
2-3/8"
(60.3 mm)
2-5/16"
(58.7 mm)
2-3/8"
(60.3 mm)
1-4.2.11
3-01
