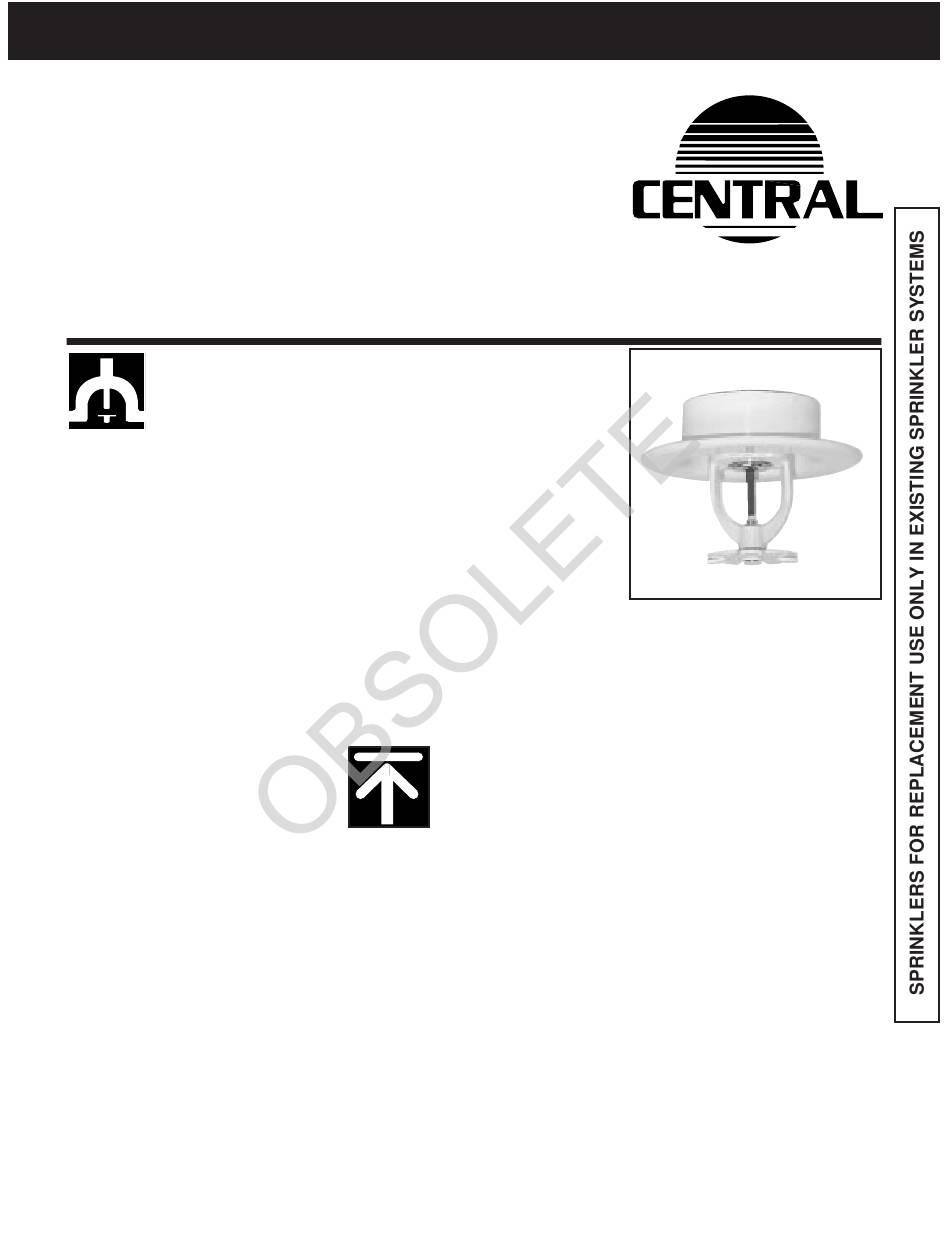

CENTRAL
Model LF
3.0 K-factor -
Fast Response Residential
Pendent & Recessed Pendent Glass Bulb Automatic Sprinkler
Tyco Fire Products --- www.centralsprinkler.com
451 North Cannon Avenue, Lansdale, Pennsylvania 19446 --- USA
Customer Service/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
General
Description
The Central Model LF, 3.0 K-factor
Residential Pendent and Recessed
Pendent sprinklers are decorative
glass bulb sprinklers designed for use
in residential occupancies such as
homes, apartments, dormitories, and
hotels.
They are to be used in wet pipe
residential sprinkler systems for one-
and two-family dwellings and mobile
homes per NFPA 13D; wet pipe
residential sprinkler systems for
residential occupancies up to and
including four stories in height per
NFPA 13R; or, wet pipe sprinkler
systems for the residential portions of
any occupancy per NFPA 13.
The Central Model LF Residential
Pendent Sprinklers have a 3.0 K-
factor which provides very low design
flow rates at reduced residual pres-
sures, enabling smaller pipe sizes and
water supply requirements.
The recessed version of the Model LF
Residential Pendent Sprinkler is
obtained by utilizing the Model LF
Residential Pendent Sprinkler in
combination with the Model BV Res./
QR Recessed Escutcheon Assembly.
The recessed version of the Central
Model LF using a Model BV Res./QR
Recessed Escutcheon provides up to
3/8 inch (9,5 mm) of total adjustment
from the flush pendent position.
Operation: The glass bulb contains a
fluid which expands when exposed to
heat. When the rated temperature is
reached, the fluid expands sufficiently
to shatter the glass bulb, which then
allows the sprinkler to activate and
flow water.
WARNING
The LF Residential Pendent Sprin-
klers described herein must be
installed and maintained in compli-
ance with this document, as well as
with the applicable standards of the
LF Pendent
National Fire Protection Associa-
tion, in addition to the standards of
any other authorities having
jurisdiction. Failure to do so may
impair the integrity of these de-
vices.
Because of the above cited stipula-
tions and the varied nature of
residential type architecture, there
will be some compartment designs
which cannot be fully sprinklered in
accordance with the recomendations
of NFPA 13, NFPA 13D, or
NFPA 13R. In the event of this
condition, consult the authorities
having jurisdiction for guidance
and approval.
The owner is responsible for
maintaining their fire protection
system and devices in proper
operating condition. The installing
contractor or sprinkler manufac-
turer should be contacted relative
to any questions.
Technical
Data
Sprinkler Identification Number
SIN C1296 - (155°F/68°C)
SIN C1297 - (175°F/68°C)
Approvals
UL & C-UL Listed. MEA (323-98-E)
(Refer to the Design Criteria Section)
Maximum Working Pressure
175 psi (12,1 bar)
Pipe Thread Connection
1/2 inch NPT
Discharge Coefficient
K = 3.0 GPM/psi
1/2
(43,2 LPM/bar
Temperature Ratings
155°F/68°C or 175°F/79°C
Finishes
Sprinkler: White Polyester, Chrome
Plated, or Natural Brass
Recessed Escutcheon: White Coated,
Chrome Plated, or Brass Plated
Residential
Pendent and
Recessed
Pendent
Sprinklers
Physical Characteristics
The Model LF Residential Pendent
Sprinkler utilizes a dezincification
resistant (DZR) bronze frame and a
1/2
)
2.5 mm bulb for 175°F and a 3 mm
bulb for 155°F. The sprinkler frame
orifice is sealed with a gasketed
spring plate (Belleville Seal) consist-
ing of a beryllium nickel disc spring
that is sealed on both its inside and
outside edges with a Teflon
The compression screw is bronze,
and the deflector is brass.
7-02
TM
gasket.
No. 4-1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CENTRAL LF and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco Fire Product CENTRAL LF

  • Page 1 LF Pendent 7-02 CENTRAL Model LF 3.0 K-factor - Fast Response Residential Pendent & Recessed Pendent Glass Bulb Automatic Sprinkler Tyco Fire Products --- www.centralsprinkler.com 451 North Cannon Avenue, Lansdale, Pennsylvania 19446 --- USA Customer Service/Sales: Tel: (215) 362-0700 / Fax: (215) 362-5385 Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500 National Fire Protection Associa- General...
  • Page 2 ° ° ° Table 3 - 155 F & 175 F LF Extended Pendent Table 1 - 155 F LF Pendent & Recessed Pendent Hydraulic Design Requirements for NFPA 13D & Hydraulic Design Requirements for NFPA 13D & NFPA 13R Occupancies (Use with Figure 3) NFPA 13R Occupancies Minimum Design Flow Minimum Design Flow...
  • Page 3 Figure 3 - Model LF Extended Pendent Figure 1 - Model LF Pendent 3-1/2" Max. (88,9mm) 2-1/4" Min. (57,2mm) WRENCH Reducing FLAT upling 2-1/8" (54,0 mm) 11/16" Finished Ceiling ,9 mm) LIne Ref. 6" Max. (152,4mm) 3-3/4" Min. (95,3mm) 1-3/16" (30,2 mm) Escutcheon Diameter Face of...
  • Page 4 Figure 5 - UL & C-UL Specific Application Sloped Ceiling Design Criteria Pendents Located Along Multiple Slopes • Spacing is measured along the slope. • One row of sprinklers is shown on the sloping ceiling for clarity. Actual number of sprinklers within a compartment is unlimited.
  • Page 5 Figure 8 - Spacing for Sprinkler at the Peak of a Sloped Ceiling First verify that the sprinkler at the peak is considered to be “Acceptable” or “Obstructed” by the sloped ceiling in accordance with Figure 13 Graph. Measure horizontally from the deflector to the sloped ceiling, this is equal to the “D”...
  • Page 6 Figure 11 - Minimum Distance Between Sprinklers on Intersecting Ceilings First verify that “D” is “Acceptable” or “Obstructed” per Figure 13 for the horizontal ceiling sprinkler and Figure 14 for the sloped ceiling sprinkler. If “Acceptable”, Figure 11 applies. If “Obstructed”, per Figure 13 or 14, then “D” is to be considered the area of coverage.
  • Page 7 Figure 14 - Obstruction to Discharge by Intersecting Flat Ceiling If “D” is “Obstructed” per Figure 14 Graph, then “D” is to be considered the area of coverage and additional sprinklers 20' x 20' along the horizontal ceiling will be necessary. Only if “D” is 18' x 18' Acceptable “Acceptable”...
  • Page 8 the sprinkler with a cloth or by brushing Materials found by Tyco Fire Products Care & it with a soft bristle brush. to be defective shall be either repaired or replaced, at Tyco Fire Products' Care must be exercised to avoid Maintenance sole option.
