Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

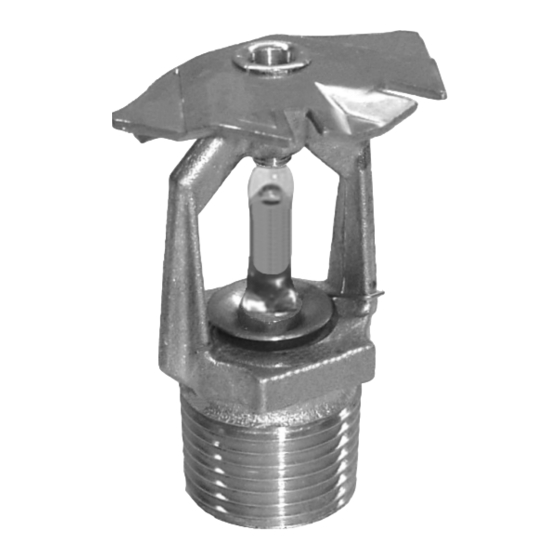

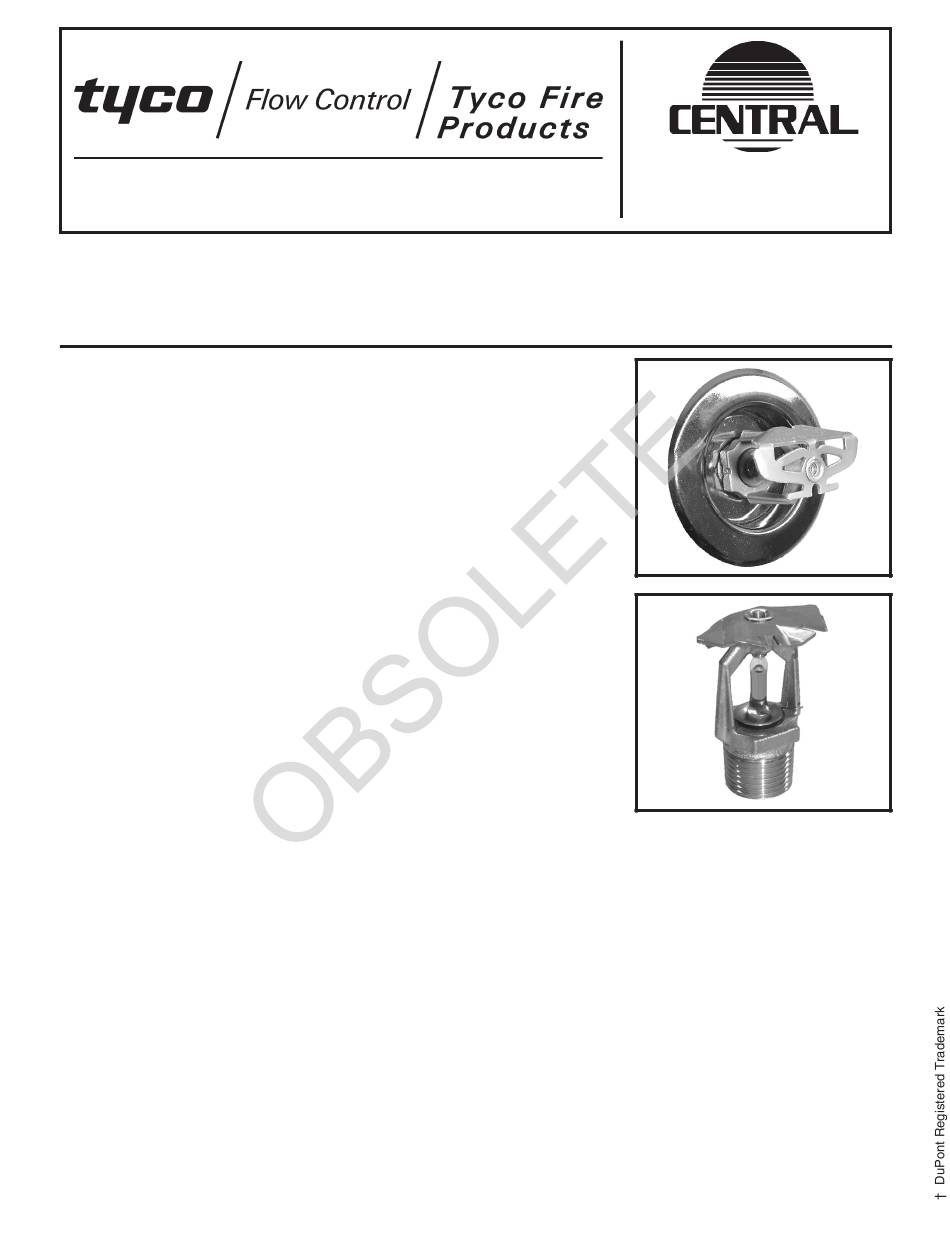

Series TY-B — 5.6 K-factor
Horizontal and Vertical Sidewall Sprinklers
Standard Response, Standard Coverage
General
Description
The Series TY-B, 5.6 K-factor, Horizon-
tal and Vertical Sidewall Sprinklers de-
scribed in this data sheet are standard
response - standard coverage, deco-
rative 5 mm glass bulb type spray
sprinklers designed for use in light and
ordinary hazard, commercial occupan-
cies such as banks, hotels, shopping
malls, etc. They are designed for instal-
lation along a wall or the side of a beam
and just beneath a smooth ceiling.
Sidewall sprinklers are commonly
used instead of pendent or upright
sprinklers because of aesthetics or
building construction considerations,
where piping across the ceiling is not
desirable.
The recessed version of the Series
TY-B Horizontal Sidewall Sprinkler is
intended for use in areas with a fin-
ished wall. It uses a two-piece Style 10
Recessed Escutcheon. The Recessed
Escutcheon provides 1/2 inch (12,7
mm) of recessed adjustment or up to
3/4 inch (19,1 mm) of total adjustment
from the flush sidewall position. The
adjustment provided by the Recessed
Escutcheon reduces the accuracy to
which the fixed pipe nipples to the
sprinklers must be cut.
Corrosion resistant coatings, where
applicable, are utilized to extend the
life of copper alloy sprinklers beyond
that which would otherwise be ob-
tained when exposed to corrosive at-
mospheres. Although corrosion resis-
tant coated sprinklers have passed the
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently, it
is recommended that the end user be
consulted with respect to the suitability
of these corrosion resistant coatings
for any given corrosive environment.
The effects of ambient temperature,
concentration of chemicals, and
gas/chemical velocity, should be con-
Page 1 of 6
sidered, as a minimum, along with the
corrosive nature of the chemical to
which the sprinklers will be exposed.
WARNINGS
The Series TY-B Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association, in addition to the
standards of any other authorities hav-
ing jurisdiction. Failure to do so may
impair the integrity of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
relative to any questions.
Model/Sprinkler
Identification
Numbers
TY3351 -
Horizontal
TY3451 -
Vertical
Technical
Data
Approvals
UL and C-UL Listed.
FM, LPCB, and NYC Approved.
(Refer to Table A for complete approval
information including corrosion resis-
tant status)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
1/2
K = 5.6 GPM/psi
(80,6 LPM/bar
Temperature Ratings
Refer to Table A
FEBRUARY, 2002
Customer Service/Sales:
Tel: (215) 362-0700 / (800) 523-6512
Fax: (215) 362-5385
Finishes
Sprinkler: Refer to Table A
Recessed Escutcheon: White Coated
or Chrome Plated. (Other colors are
available on request.)
Physical Characteristics
Frame . . . . . . . . . . . . Bronze
Button . . . . . . . .
Sealing Assembly . . . . . . . . . .
. . . . . . Beryllium Nickel w/Teflon†
Bulb
. . . . . . . . . . . . . . Glass
Compression Screw . . . . . Bronze
HSW Deflector . . . . . . . . Bronze
VSW Deflector . . . . . . . . Copper
Patents
U.S.A. Patent Number 5,810,263 and
UK Patent Number 2,347,624 may be
1/2
)
applicable to the Series TY-B Horizon-
tal Sidewall Sprinkler.
Brass/Copper
TFP161
TFP161 (1-6.1)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CENTRAL TY-B and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco Fire Product CENTRAL TY-B

  • Page 1 Customer Service/Sales: Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500 Tel: (215) 362-0700 / (800) 523-6512 Fax: (215) 362-5385 Series TY-B — 5.6 K-factor Horizontal and Vertical Sidewall Sprinklers Standard Response, Standard Coverage sidered, as a minimum, along with the General corrosive nature of the chemical to which the sprinklers will be exposed.
  • Page 2: Operation

    Page 2 of 6 TFP161 SPRINKLER FINISH (See Note 10) TYPE TEMP. BULB NATURAL CHROME POLYESTER LEAD WAX OVER LIQUID BRASS PLATED COATED*** COATED COATED LEAD COATED 135°F/57°C Orange HORIZ. 155°F/68°C SIDEWALL 1, 2, 3, 4, 9 1, 2, 3, 9 1, 2, 3, 9 1, 2, 3, 9 175°F/79°C...
  • Page 3: Installation

    TFP161 Page 3 of 6 Installation DEFLECTOR The Series TY-B Sprinklers must be installed in accordance with the follow- ing instructions: NOTES Do not install any bulb type sprinkler if the bulb is cracked or there is a loss of liquid from the bulb.
  • Page 4: Care And Maintenance

    Page 4 of 6 TFP161 heated rod, in order to prevent the installer from being burned. ARROW MUST POINT AWAY If attempts to retouch the wax coating 7/16" FROM AND BE with complete coverage are unsuc- ESCUTCHEON (11,1 mm) PERPENDICULAR cessful, additional wax can be ordered PLATE SEATING NOMINAL...
  • Page 5: Limited Warranty

    TFP161 Page 5 of 6 5/8±1/4" (15,9±6,4 mm) WRENCH RECESS FACE OF (END "A" USED FOR MOUNTING SPRINKLER 1/2" NPT MODELS) SURFACE FITTING FIGURE 4 W-TYPE 6 SPRINKLER WRENCH CLOSURE 2-7/8" DIA. WRENCH (73,0 mm) RECESS SERIES 2-1/4" DIA. TY-B (57,2 mm) MOUNTING PLATE...
  • Page 6: Temperature Rating

    Page 6 of 6 TFP161 P/N 57 — XXX — X — XXX TEMPERATURE MODEL/SIN RATING SPRINKLER HORIZONTAL SIDEWALL TY3351 135°F/57°C VERTICAL SIDEWALL TY3451 NATURAL BRASS 155°F/68°C WHITE POLYESTER 175°F/79°C CHROME PLATED 200°F/93°C LEAD COATED 286°F/141°C WAX COATED 360°F/182°C 286°F/141°C MAX. WAX OVER LEAD 286°F/141°C MAX.
