INTERMEDIATE LEVEL SPRINKLERS
UNIVERSAL MODEL A
QUICK RESPONSE, 3 mm BULB TYPE, 5.6 & 8.0 K-FACTOR
7/16" (11,1 mm)
NOMINAL MAKE-IN
2-3/16"
(55,6 mm)
MODEL Q67
SHIELD
(FIELD ASSEMBLED - SEE INSTALLATION SECTION)
1/2" (12,7 mm)
NOMINAL MAKE-IN
2-5/16"
(58,7 mm)
MODEL Q67
SHIELD
(FIELD ASSEMBLED - SEE INSTALLATION SECTION)
* Pipe thread connections per ISO 7/1 can be provided on special request.
QUICK RESPONSE MODEL A INTERMEDIATE LEVEL SPRINKLERS
GENERAL DESCRIPTION
The 5.6 and 8.0 K-Factor Quick Re-
sponse Universal Model A Intermedi-
ate Level Pendent and Upright Sprin-
klers (Ref. Figure A) are automatic
sprinklers of the "quick response" fran-
Printed in U.S.A. 3-01
Customer Service/Sales: Tel: (877) 436-8926 / Fax: (877) 866-9250
Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500
1/2"
*
NPT
O-RING
WRENCHING
FLATS
3-1/2" (88,9 mm) DIA,
PENDENT
5.6 K-FACTOR / 1/2 INCH NPT *
3/4" *
NPT
O-RING
WRENCHING
FLATS
3-1/2" (88,9 mm) DIA,
PENDENT
8.0 K-FACTOR / 3/4 INCH NPT *
5.6 K-FACTOR PENDENT (SIN G7371) AND UPRIGHT (SIN G7333)
8.0 K-FACTOR PENDENT (SIN G7391) AND UPRIGHT (SIN G7343)
gible bulb type. They are "standard
spray" sprinklers intended for use in
fire sprinkler systems designed in ac-
cordance with the standard installation
rules recognized by the applicable
Listing or Approval agency (e.g., UL
Listing is based on NFPA require-
ments). Both the Pendent and Upright
3-1/2" (88,9 mm) DIA,
SHIELD
SCREW
MODEL Q66
SHIELD
WRENCHING
FLATS
1/2" *
NPT
UPRIGHT
(FACTORY ASSEMBLED)
3-1/2" (88,9 mm) DIA,
SHIELD
SCREW
MODEL Q66
SHIELD
WRENCHING
FLATS
3/4"
*
NPT
UPRIGHT
(FACTORY ASSEMBLED)

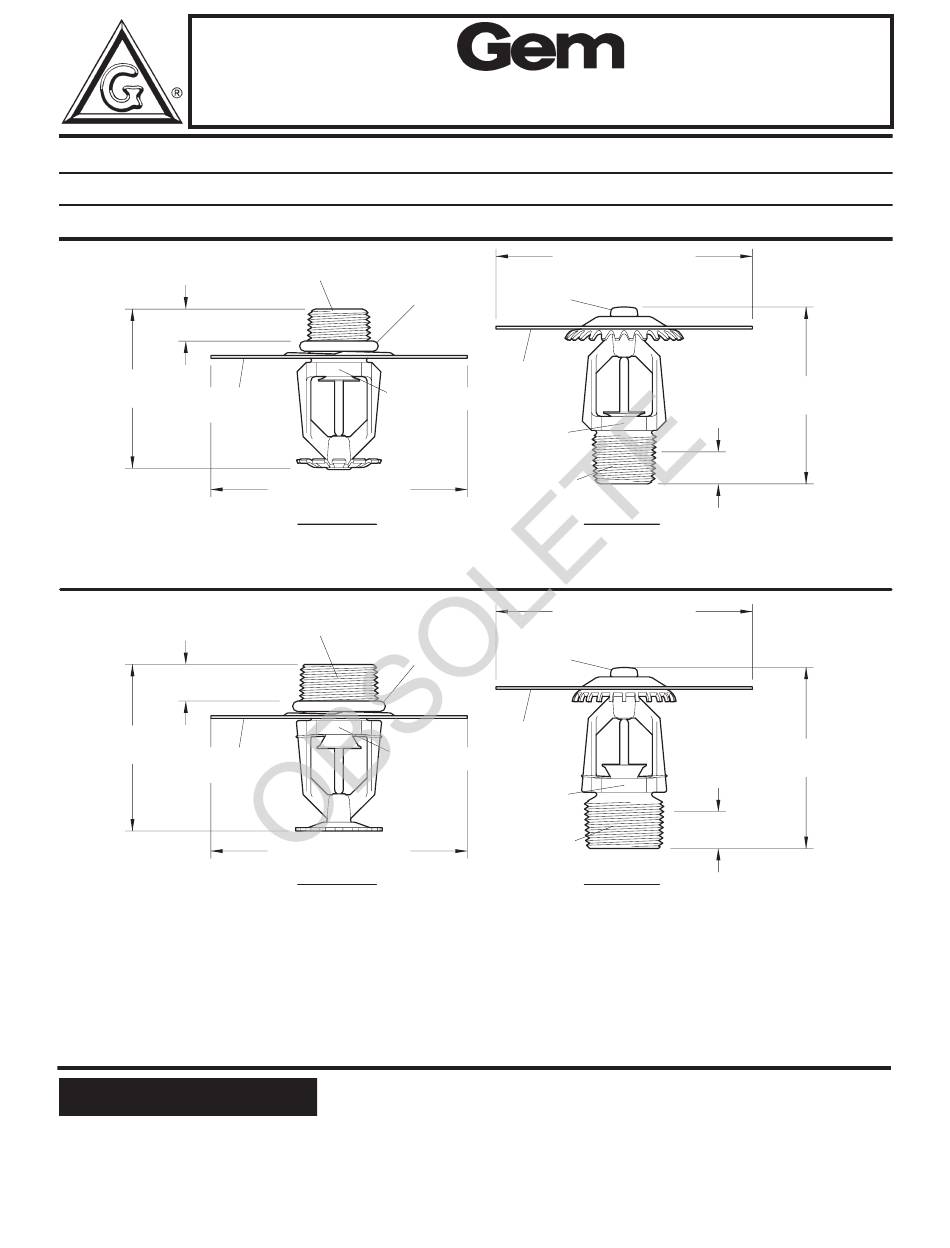

FIGURE A
7/16"
(11,1 mm)
2-3/8"
NOMINAL
(60,3 mm)
MAKE-IN
1/2"
(12,7 mm)
2-7/16"
NOMINAL
(61,9 mm)
MAKE-IN
Sprinklers produce a hemispherical
water distribution pattern below the
deflector.
Intermediate Level Sprinklers are pri-
marily designed for use in rack storage
sprinkler systems, where their ther-
mally sensitive elements must be
