Summary of Contents for Mastercare MB-80R

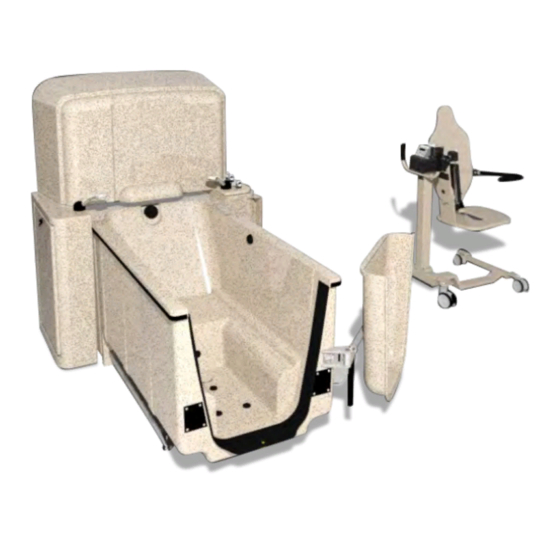

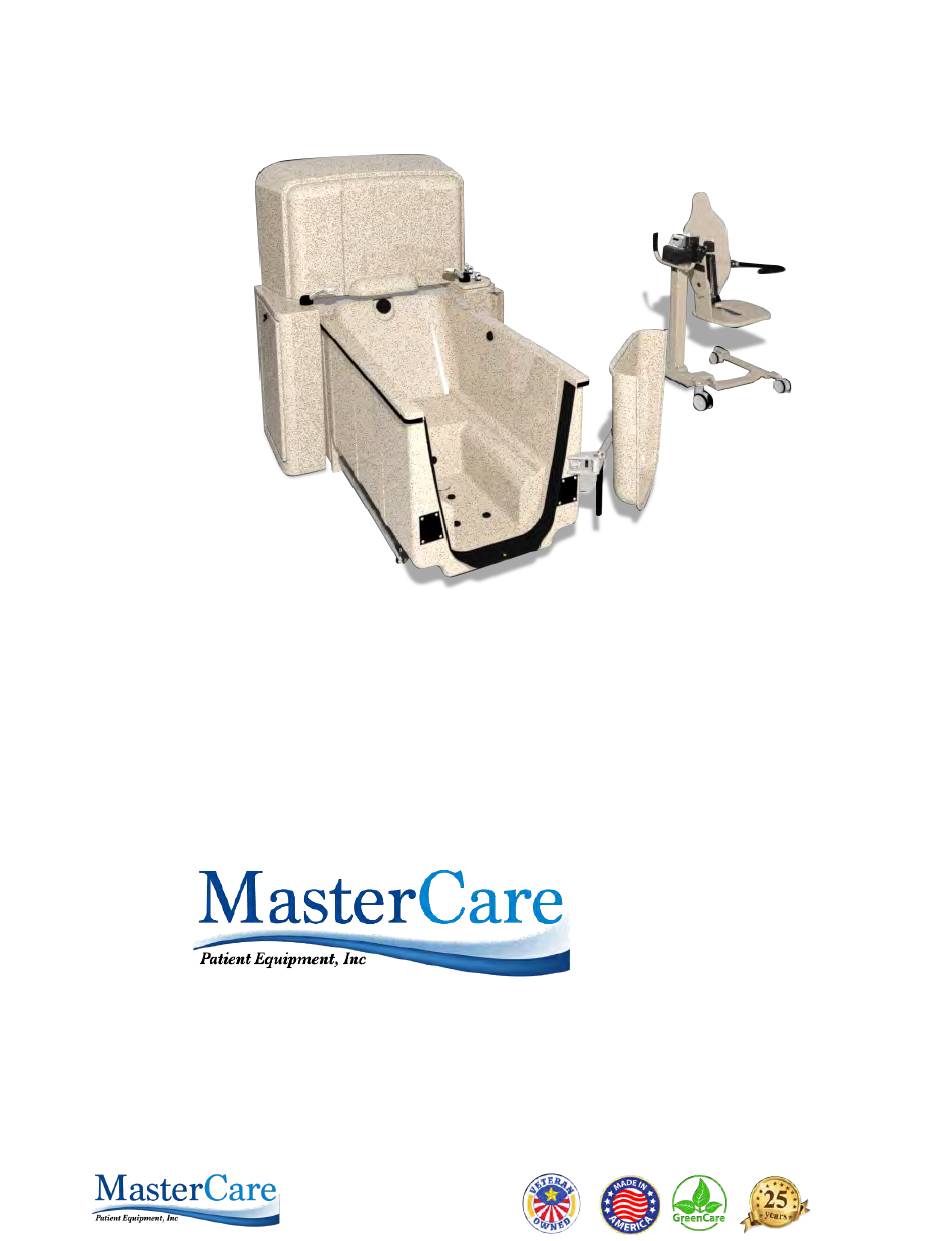

- Page 1 Integrity Bath Model MB-80R Operation Manual Important Safety Instructions Read & Follow All Instructions Thoroughly...
- Page 2 Integrity Bath – Model MB-80R Operation Manual 450 East 32nd Street, Fremont NE 68025 07-06-18 800-798-5867 FAX: 402-563-9102 Page 2 of 16 www.mastercarebath.com...
- Page 3 CAUTION: The caution heading identifies IMPORTANT SAFETY INSTRUCTIONS READ AND important maintenance operation FOLLOW ALL INSTRUCTIONS THROUGHLY information. Failure to obey a caution warning may result in damage to the Integrity Tub or Transporter and may void the warranty Before using the system to bathe individuals the operator must be trained by a qualified trainer or completed the online video training.
- Page 4 d. Transfer the patient on to the Transporter using 2. Place Individual into Transfer Chair: proper nursing transfer techniques. Warning: The Chair must be in a Full Upright a. Push the Transporter to the resident and position position during all transfers to and from the for a normal wheel chair transfer.
- Page 5 Weigh The Individual: If you have a scale on your Tranporter, now is the time to take and record the weight of the individual. Key steps to Get Accurate and Consistent Weights: a. Before you transfer the resident on to the chair push ZERO button below the scale display window to zero out the weigh t of the chair.
- Page 6 Integrity Bath – Model MB-80R Operation Manual 6. Turn On The BathAire (SM) Turn on the BathAire (SM) by pushing in on the BathAire (SM) ON/OFF Touch Pad located on the upper right side deck of the tub. This will warm up the environment inside the tub.
- Page 7 Integrity Bath – Model MB-80R Operation Manual Transfer into the Tub: To transfer the individual into the tub, back the Transporter chair into the tub using the and Transporter Guide Handle. 7. Close The Tub Door: Rotate door to closed position. With both hands on the top of the door, align it so that it is parallel with the BLACK SEAL and SEAL RETAINER.
- Page 8 Button Open/Close Arm During the normal bath cycle you can shampoo the individual’s hair and wash their body with MasterCare’s specially formulated Shampoo and Body Wash. Simply push the touch pad as you are filling the bath to add the LIQUIDS Bath Oil directly into the bath water.
- Page 9 Side Service Door Key Latch Open the drain. Allow contact time as detailed on disinfectant/cleaner. MasterCare Disinfectant/cleaner requires 10 minutes which is a common Industry Standard. Use the SHOWER WAND to thoroughly rinse all areas that were in contact with the disinfectant cleaner.
- Page 10 Integrity Bath – Model MB-80R Operation Manual Other Considerations When not being used, storage areas should be locked; 4 keys are provided with the system. It is recommended that the operations wall chart be posted on the wall next to the control end of the tub for quick reference by the operator of the Integrity Bath System.
- Page 11 Integrity Bath – Model MB-80R Operation Manual - Key Features and Operating Controls Bath Water Shower Wand Reservoir Temperature Fill Disinfectant Temperature Wand Tub Fill Lever Reservoir Fill On/Off Valve Mixing Valve Shower On/Off Valve BathAire Control Panel Service Access Door Tub Door TUB DOOR...
- Page 12 Integrity Bath – Model MB-80R Operation Manual - BathAire (SM) Variable System Control (SM) Before activating the BathAire 1. Remove the SERVICE ACCESS DOOR 2. Remove the AROMATHERAPY ACCESS CAP 3. Insert the selected AROMATHERAPY CARTRIDGE in the AROMATHERAPY CARTRIDGE HOLDER 4. Securely close the cap prior to turning on the BathAire(SM).
- Page 13 However, some products may not be compatible with the system and may damage components in the system, thereby voiding the warranty. MasterCare offers an extended warranty with your use of MasterCare bathing and Cleaning/disinfection products. Please contact MasterCare customer service @ 800-798-5867 before using non-MasterCare products in your system.
- Page 14 Integrity Bath – Model MB-80R Operation Manual - Disinfectant Dispensing System Operating Instructions: How to Connect the Dispensing System to the MasterCare Cleaner/Disinfectant Bottle: 1. Remove the cap and seal under the cap on the one liter jug of cleaner disinfectant. 2. Insert the foot strainer attached to the cap with dispensing hose into the two liter bottle so that the strainer foot is on the bottom of the jug.
- Page 15 Integrity Bath – Model MB-80R Operation Manual - Transfer Chair Pads and Belting Instructions Transfer Chair Pads COMFORT PADS MasterCare offers comfort pads as a solution to improve user comfort, especially those with lacerations skin injuries. To place the comfort pads on the seat of the...
-
Page 16: Operation
Integrity Bath – Model MB-80R Operation Manual INTEGRITY Bath Training Check List After reviewing the operation and safety instructions in this manual, the Integrity Bath can be operated and all components can be identified. OPERATION: Place Comfort Pads on the Seat of Transporter (If Applicable)
