Summary of Contents for Mastercare Integrity MB-80R

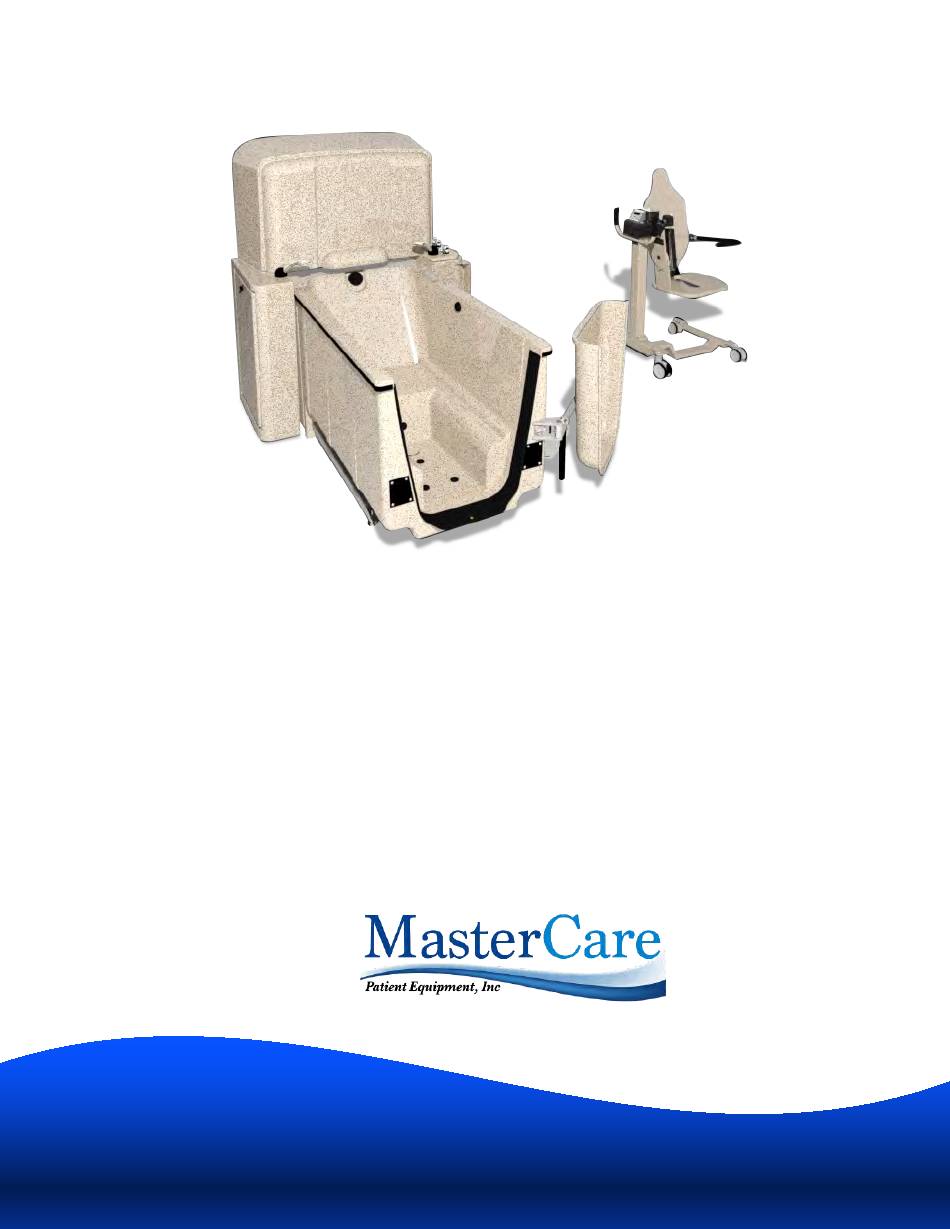

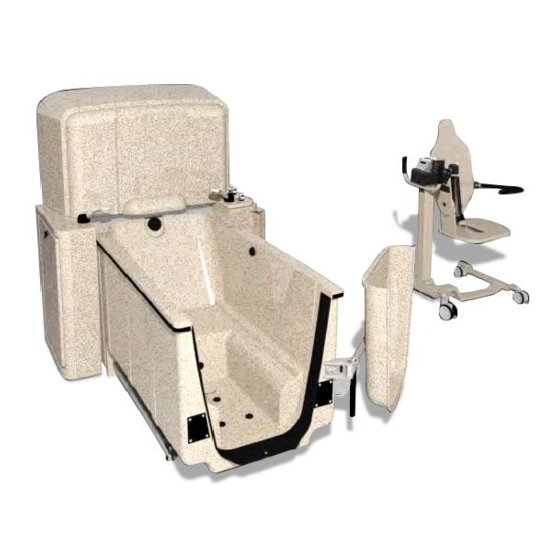

- Page 1 Integrity Bath Model MB-80R Installation Manual (Specifications & Rough-In Included) Important Safety Instructions Read & Follow All Instructions Thoroughly SN:_____________________________________...
- Page 2 Integrity Bath Model MB-80R Installation Manual 450 East 32nd Street - PO Box 1022 68026) Fremont NE 68025 01-23-19 800-798-5867 FAX: 402-563-9102 Page 2 of 8 www.mastercarebath.com...
- Page 3 Integrity Bath Model MB-80R Installation Manual IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS THROUGHLY CAUTION: The caution heading identifies important maintenance and operation information. Failure to obey a caution warning may result in damage to the Entree Bath and may void the warranty Plan Bathing System Layout Mark Tub Center Line On Wall &...
- Page 4 CAUTION: The tubs use flexible hoses. It is an industry Water Connection: 3/4" female pipe swivel standard and it is recommended by MasterCare to connections supplied by the manufacturer. replace the hoses every 5 years and to inspect the hoses yearly for any obvious signs of damage or wear.
-
Page 5: General Warnings
• Find the two 1/4” holes located in the fiberglass • You are now ready to install your MasterCare rear floor area of the tub. Mark the hole locations Integrity Bathing System. -
Page 6: Verify System Operation
Integrity Bath Model MB-80R Installation Manual VERIFY SYSTEM OPERATION Reposition Tub Against Wall • Install the anchor bolts loosely. Close and Lock Door • Slide the tub back to the wall. • Rotate and position door inside the tub as far as it • Connect the drain, but do not tighten. will go. - Page 7 Integrity Bath Model MB-80R Installation Manual tub. Fill time from reservoir to tub should be Turn on Supply Water approximately 1 minute and 45 seconds under • Turn on the hot and cold water supply valves. optimum conditions. • With the shower wand pointed inside the tub, turn •...
- Page 8 Maintenance Manual included with your tub or call your local MasterCare representative MasterCare direct for technical support. Clean and Rinse the Bathing System before Using • Before using this equipment: Remove all rough debris from inside the tub.
