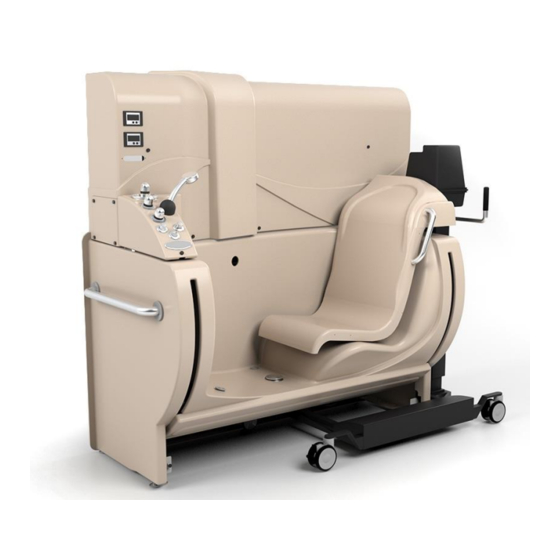

Gen III Entree Bath
MODEL MB-68 AV-XL
OPERATION MANUAL
Important Safety Instructions
Read & Follow All Instructions Thoroughly
Important safety instructions. Read and follow all instructions thoroughly.
CAUTION:
The caution heading identifies important maintenance and operation
information. Failure to obey a caution warning may result in damage to the Entree Bath
and may void the warranty.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mastercare MB-68 AV-XL
Summary of Contents for Mastercare MB-68 AV-XL
- Page 1 Gen III Entree Bath MODEL MB-68 AV-XL OPERATION MANUAL Important Safety Instructions Read & Follow All Instructions Thoroughly Important safety instructions. Read and follow all instructions thoroughly. CAUTION: The caution heading identifies important maintenance and operation information. Failure to obey a caution warning may result in damage to the Entree Bath...
- Page 2 Entrée Bath Gen III OPERATION MANUAL WARNINGS • Risk of accidental injury or drowning; children and impaired individuals should not use hydromassage bathtub without trained adult supervision. • To avoid injury; exercise care when entering or exiting the hydromassage bathtub. •...
-
Page 3: Features And Operating Controls
Entrée Bath Gen III OPERATION MANUAL FEATURES AND OPERATING CONTROLS Foot-End Controls CONSOLE CONTROLS Reservoir Water Thermometer Tub Water Thermometer Tub Fill and Console Shower Controls Spray Mixing Valve Mixing Valve: Adjusts the temperature of Reservoir Fill Control Valve the mixer water to the shower Spray and tub fill spigot. - Page 4 Entrée Bath Gen III OPERATION MANUAL Thumb Screws: The thumb screws hold the service panel in CONSOLE CONTROLS place and are to be removed only by authorized service personnel for service access. Liquid Dispensing Controls: These controls are used to add Bath Oil and Shampoo directly into the bath water.
-
Page 5: Dispensing System
Entrée Bath Gen III OPERATION MANUAL DISPENSING SYSTEM Liquid Dispensing Controls: These controls are used to add Bath Oil and Shampoo directly into the bath water. Disinfectant Valve: Dispenses disinfectant through the jets. Turn valve to the right for disinfecting. To the left for flushing. -
Page 6: Operation
Entrée Bath Gen III OPERATION MANUAL OPERATION Before operating the Entree Bath, familiarize yourself with the key features of the tub outlined in the Tank Temperature CONSOLE CONTROLS drawings supplied with these Thermometer instructions. Tub Water Thermometer BATHING PROCEDURES Tub Fill and Shower Fill the Reservoir: Spray... - Page 7 Entrée Bath Gen III OPERATION MANUAL (SM) Turn On The BathAire by gently pushing in on the BathAire (SM) On/Off Touch Pad (SM) BATHAIRE CONTROLS located on the lower left side deck of the Wave On/Off tub. (Do not use sharp object) This will Button Button warm up the environment inside the tub.
- Page 8 Entrée Bath Gen III OPERATION MANUAL Open Door Transfer Individual to the Transfer Chair Button Push down on the Open Door Button until the door is fully opened and stops on its own. b. Position the comfort pad group in the Transfer Chair as follows;...
- Page 9 Entrée Bath Gen III OPERATION MANUAL 1. Weigh The Individual: If you have a scale on your Transfer Chair, now is the time to take and record the weight of the individual. Key steps to Get Accurate and Consistent Weights: a.
- Page 10 Entrée Bath Gen III OPERATION MANUAL CONSOLE CONTROLS Tub Fill Procedures with Pre-Fill Console: Tank Temperature Thermometer (sm) a. Turn the BathAire b. Push down on the Close button until the Incoming Water Thermometer door is fully closed and stops on its own. You Tub Fill and will no longer hear the motor and the seal Shower...
- Page 11 Replacing One Liter Jugs & Priming Operation: Remove the empty bottle of solutions and replace with MasterCare’s Bath Oil or Shampoo. Remove the cap and seal under the cap on the bottle of liquid. b. Insert the foot strainer attached to the cap with dispensing hose into the bottle so that the strainer foot is on the bottom of the bottle.
- Page 12 Reservoir Water CONSOLE CONTROLS a. During the normal bath cycle, you can Thermometer shampoo the individual’s hair and wash their body with MasterCare’s specially Tub Water formulated Shampoo and Body Wash. Thermometer Tub Fill and Bathe or assist the individual with their...
- Page 13 Entrée Bath Gen III OPERATION MANUAL Dry as much of the individual as you can before removing them from the tub by leaning the individual forward and towel dry their back side and inside of the tub area behind the individual. Lift each leg and towel dry the underside of the legs/top of the seat, under legs and feet/foot well area under feet.
-
Page 14: Cleaning Procedures
DO NOT allow such solutions or compounds to come in contact with your MasterCare equipment. Failure to heed this caution could result in damage to the equipment and void the warranty. - Page 15 Entrée Bath Gen III OPERATION MANUAL BATHAIRE(SM) PURGE CYCLE: BathAire will automatically turn on after the bath has been idle for twenty (20) minutes and run for one (1) minute. This allows the area around the aerators to completely dry. Other Considerations: CAUTION: When...
- Page 16 Open the Electrical Service Access Door Press the Door Open Backup. GFCI RESET PROCEDURES All MasterCare bathing systems are equipped with onboard GFCI’s making them easy to access for your convenience. In the event a power surge trips the GFCI...
- Page 17 Entrée Bath Gen III OPERATION MANUAL ENTREE BATH TRAINING CHECK LIST After reviewing the operation and safety instructions in this manual, the Entree Bath can be operated and all components can be identified OPERATION: Position Transfer Chair And Lock The Casters Secure Individual In The Transfer Chair Transfer Individual Into The Entree Bath Close Tub Door With Push Buttons...
- Page 18 Entrée Bath Gen III OPERATION MANUAL It is recommended that the operations wall chart be posted on the wall next to the control end of the tub for quick reference by the operator of the GEN III Tub. 450 East 32 Street PO Box 1022 (68026) 01-27-2022 Fremont NE 68025...
