Mastercare Gen III Entree Bath Installation Manual

Advertisement

Quick Links

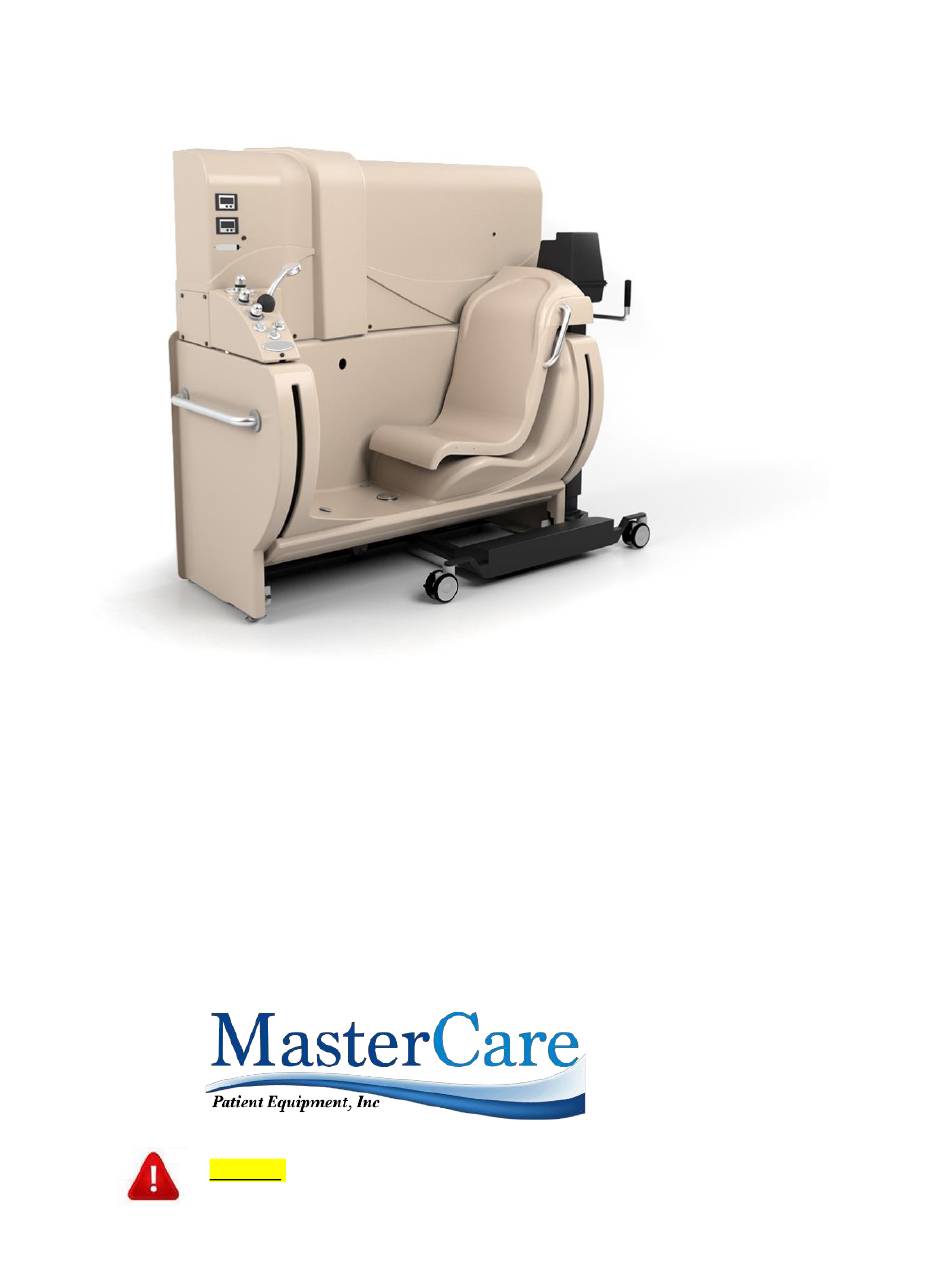

Gen III Entree Bath
INSTALLATION MANUAL
MODEL MB-68 AV-XL
Important Safety Instructions
Read & Follow All Instructions Thoroughly
Important safety instructions. Read and follow all instructions thoroughly.
CAUTION:
The caution heading identifies important maintenance and operation
information. Failure to obey a caution warning may result in damage to the Entree Bath
and may void the warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gen III Entree Bath and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mastercare Gen III Entree Bath

  • Page 1 Gen III Entree Bath INSTALLATION MANUAL MODEL MB-68 AV-XL Important Safety Instructions Read & Follow All Instructions Thoroughly Important safety instructions. Read and follow all instructions thoroughly. CAUTION: The caution heading identifies important maintenance and operation information. Failure to obey a caution warning may result in damage to the Entree Bath...
  • Page 2 Entrée Bath Gen III INSTALLATION MANUAL 450 East 32 Street PO Box 1022 (68026) 01-27-2022 Fremont NE 68025 Page 2 of 9 800-798-5867 Office: 402-564-5867 FAX: 402-563-9102 www.mastercarebath.com...
  • Page 3: Tools Needed For Installation

    Entrée Bath Gen III INSTALLATION MANUAL BEFORE STARTING TOOLS NEEDED FOR INSTALLATION ½” Deep and 9/16” Channel Tape Adjustable Deep Socket Locks Measure Wrench and Ratchet 7/16” Masonry Hand Held #2 Phillips 5/16 Nut Hammer Drill Bit Thermometer Screwdriver Driver Drill Caulking Gun 450 East 32...
  • Page 4 Entrée Bath Gen III INSTALLATION MANUAL ENTRÉE GEN 2.5 LOCATION REFERENCE Foot End Controls Console High Quality and Wood Stud Floor or Concrete Required. If installed a heated floor, make sure to allow for the tub to be anchored to the floor. We would recommend not installing a heated floor under the bath.
  • Page 5: Installation Checklist

    If damage is found, or Shock & Tip Tag is altered, do not accept delivery. It must be reported, communicated and documented immediately to the freight company and MasterCare 1- 800-798-5867. Proceed to inspect the tub for hidden and concealed damage. Leave the tub on the pallet until ready for installation.
  • Page 6 Entrée Bath Gen III INSTALLATION MANUAL ENTREE TUB CRATE REMOVAL Transfer and Positioning: The tub is shipped with the door in the open position. To transfer, plug the tub into an extension cord and rotate the door to a nearly closed position, by pushing on the Door Close button until the door rotates all the way up and it just starts to cam in.
  • Page 7: Top View

    Entrée Bath Gen III INSTALLATION MANUAL End to End Center Line TOP VIEW Rear Tub of Tub Service Panel eft Rear tub leg 2” 90 PVC close ST EL connected to 2” tub drain located 10” From wall on left rear tub leg 22”...
  • Page 8 Entrée Bath Gen III INSTALLATION MANUAL Tighten the hose clamps on the rubber couplers. Anchor the tub to a concrete section or to a stud floor. Proceed to the Operation Manual Go through a bath cycle and verify all functions work correctly. Make sure that when the fill knob is in the hot position, hot water comes out of the valve.
  • Page 9 Entrée Bath Gen III INSTALLATION MANUAL Make sure the Casual Water Drain (located in the back side of the tub) is properly connected. Casual Water Drain Connection 450 East 32 Street PO Box 1022 (68026) 01-27-2022 Fremont NE 68025 Page 9 of 9 800-798-5867 Office: 402-564-5867 FAX: 402-563-9102 www.mastercarebath.com...
