Page 2: Front View

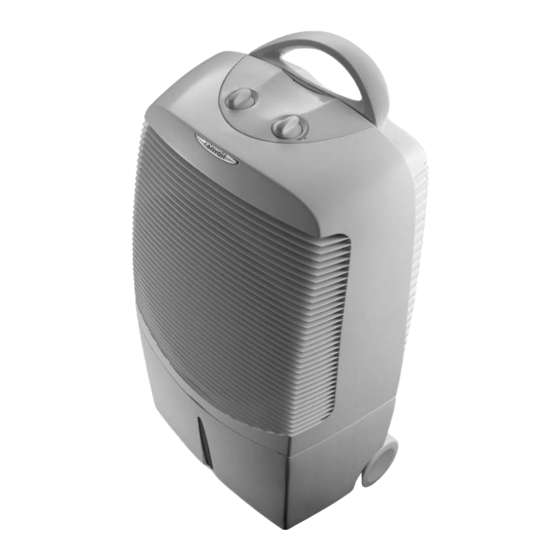

Manual Front View ILL1253-A ILL1253-A Back View ILL1254-A Congratulations on purchasing a Convair ClimateWizard. Convair is a world leader in climate control solutions. ClimateWizard addresses the common problems associated with heating in winter - excessive temperature, dryness, static electricity and dust - which can cause symptoms such as skin irritations, allergies and respiratory problems. -
Page 3: Handle Assembly
Safety When using electrical appliances please follow these precautions to reduce the risk of fire, electrical shock and injury to persons. Warning: This appliance is not intended for use by young children or infirm persons without supervision. Do not use this appliance in a closed room when only occupied by children. -
Page 4: Operation
Operation 1. Place the appliance in a central position in your home or office. 2. Pour clean water into the opening at the back of the appliance. The maximum water capacity of the ClimateWizard is 3.4 gallons (13 liters). The minimum amount of water required to operate the pump is gallon (1.9 liters). -
Page 5: Maintenance
9. If your home or office becomes uncomfortable and/or water condensation occurs, decrease the water flow. Turn the moisture control knob ( ) off turn the fan knob ( ) to a lower setting. ILL1262-A 10. Turn your ClimateWizard off by turning the fan knob ( ILL1263-A Maintenance... - Page 6 3. To gain access to the inside of the appliance remove the rear panel by disengaging the clips at the top. Pivot the rear panel backwards and lift it off. Take care when removing the rear panel as water may drip from the moisturizing pad secured to the inside of the panel.
- Page 7 ILL1265-A 8. Replace the filter cartridge by placing the bottom tabs on the filter cartridge into the rear panel and pivoting it forward until the top clips engage. ILL1266-A Any additional maintenance or servicing should only be performed by qualified personnel. Failing to do so may void your warranty.
-
Page 8: Troubleshooting
1.2.1 Check that the power supply is the same as that specified on the appliance s rating label 1.3.1 Electrical parts must only be repaired and replaced by Authorised Service Agents - call Convair technical support at 1-800-926-6824 2.1.1 Wait 30-45 minutes for the motor to cool down. It should restart automatically. -
Page 9: Parts List
Description Badge Front Panel Plug & Cord Set Control Box Switch Wire Microswitch Switch Capacitor Control Panel 10 Knob 11 Screw 12 Water Valve 13 Hose to Spreader 14 Chassis 15 Handle 16 Motor Rubber 17 Fan If you need replacement parts or have any questions call 1-800-926-6824 or visit us at www.convaircooler.com Parts List Description... -
Page 10: Exploded View
Exploded View... - Page 11 Convair Cooler Corporation 1202 North 54th Ave Building 2 Suite 117 Phoenix, Arizona 85043 Phone: 602-353-8066 Fax: 602-353-8070 Toll Free: 1-800-926-6824 www.convaircooler.com 2003 828336-A 0306 Cooler Corporation www.convaircooler.com...
