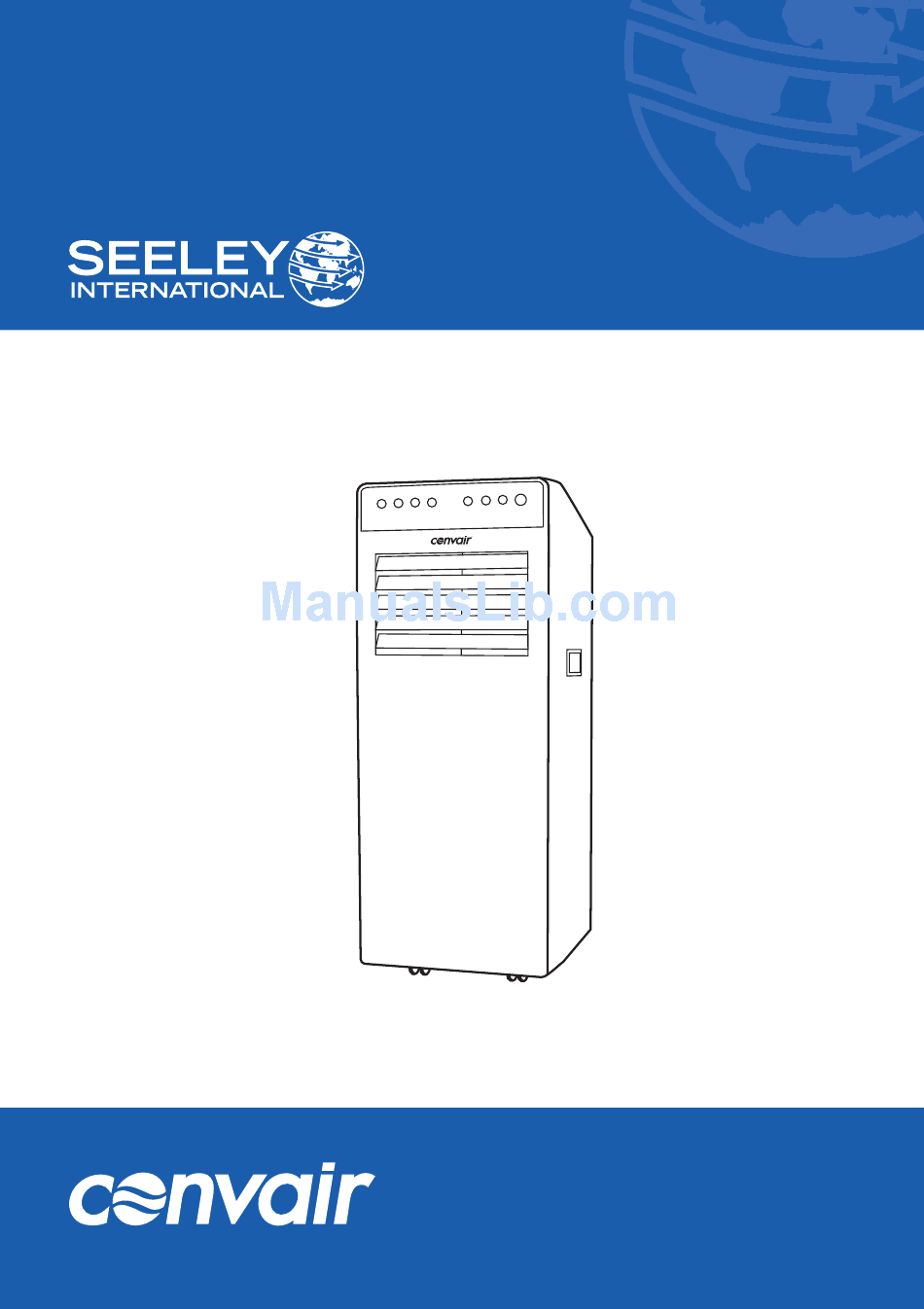

- Page 1 OWNER’S MANUAL Portable Refrigerated Air Conditioner CP10CW1 CP12CW1 (English) (CP10-12CW1) ®...
-
Page 2: Table Of Contents
CONTENTS Introduction ........1 Safety ..........2 Component location......3 Installing the exhaust hose ....4 Control panel ........5 Remote control ........6 Operation........7-8 Maintenance ........9 Troubleshooting ......10 Specifications.........11 Warranty ........12 Please read these instructions prior to using the appliance and save them for future reference. Waste electrical products must not be disposed of with household waste. -
Page 3: Introduction
Personal Cooling Your Convair cooler is a portable air conditioning unit that supplies refrigerated air to a personal area within a room. It is not intended to function as a house or room air conditioner. -
Page 4: Safety
SAFETY Electrical Safety (cont) For indoor use only. Transport the air conditioner in an Caution! before connecting the upright position only, or leave it in an electrical power cord to a power outlet, upright position for at least 2 hours check that the air conditioner voltage before use (Fig 1). -
Page 5: Component Location
COMPONENT LOCATION Display Panel Control Panel Remote Air Outlet Control Vane Lever Window Attachment Handle Exhaust Fitting Air Intake (window end) Air Filter Cord Storage Handle Hooks Exhaust Hose Exhaust Air Rating Label Outlet Screws (6) Power Cord Air Filter Drain SEELEY INTERNATIONAL –... -
Page 6: Installing The Exhaust Hose
INSTALLING THE EXHAUST HOSE Step 1: Fit the exhaust hose to the rear Note! The minimum distance required panel outlet by screwing the hose in a from the operating air conditioner to clockwise direction. Fit the window adaptor any obstructing objects or walls is onto the hose by rotating the adaptor in a 50cm (Fig 6). -
Page 7: Control Panel
CONTROL PANEL Timer Set Temperature adjust Fan Speed Mode Select Power ON / OFF button buttons control button button button Press to enter the Press + to increase, Press to cycle the fan Press to cycle from Press to turn the timer setting mode - to decrease the speed between low... -
Page 8: Remote Control
REMOTE CONTROL Signal transmission point Fan speed adjust button Mode buttons (Cool-Dehumidify-Fan) Temperature adjust buttons Timer on / adjust button Sleep mode button Power ON / OFF Swing button button Battery compartment Battery cover Preparation before operation Remove the battery cover and insert new If there are two of the same air batteries (AAA), making sure the + and - are... -
Page 9: Operation
OPERATION Starting the air conditioner Note! In Cooling mode, the fan will continue to run even when the compressor has Step 1: Ensure the cooler is plugged in cycled off. and switched on. Step 6: The air conditioner is fitted with 2 Step 2: Press the ON/OFF button sets of air direction vanes. -
Page 10: Operation
OPERATION cont. Air Conditioner Features How to cancel the timer Step 7: Your air conditioner has a SLEEP To cancel the timer, set the time to mode, activated by pressing the button on using the control panel or remote control. the control panel or remote control. -
Page 11: Maintenance
MAINTENANCE Always disconnect the air conditioner from the electricity mains before cleaning or draining. To maximize the efficiency of the air conditioner, clean regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, spirits, detergents, chemically treated cloths, or other cleansing solutions. -
Page 12: Troubleshooting
TROUBLESHOOTING Problem Check The air conditioner does not Is the air conditioner plugged in? run. Is there a power failure? Is the "WATER FULL" error code flashing? Drain the tank as shown (Fig 12). Is the room temperature below the set temperature? The air conditioner has little Is there direct sunshine? Remember to close... -
Page 13: Specifications
SPECIFICATIONS SEELEY INTERNATIONAL PORTABLE AIR CONDITIONER Model(s) CP10CW1 CP12CW1 Function Personal Cooling Personal Cooling Cooling Capacity (Watts) † 2900 (10,000 Btu/hr) 3500 (12,000 Btu/hr) Air Flow Volume (m / hr) Power Supply 220-240V ~ 50Hz 220-240V ~ 50Hz Rated Input Power (Watts) -
Page 14: Warranty
WARRANTY In this warranty: or us means Seeley International Pty Ltd ABN 23 054 687 035, and our contact details are set out at the end of this warranty; means you, the original end-user purchaser of the Goods; Supplier means the authorised distributor or retailer of the Goods that sold you the Goods in Australia; Goods means the product, unit, appliance or equipment which was accompanied by this warranty and purchased in Australia. - Page 15 1300 526 410 Please retain your receipt as proof of purchase. Every request for warranty must be accompanied by proof of purchase. Complete the following for your records: Serial Number: Product Convair SUPERCOOL Model CP10CW1 CP12CW1 Purchased from ............................
- Page 16 It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected. Warranty Service Australia 1-300-526-410 seeleyinternational.com convair.net.au 00231601-A AU 1205...
