Summary of Contents for Convair CP12CW3

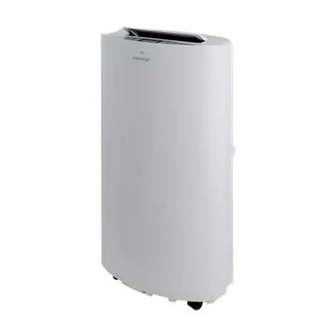

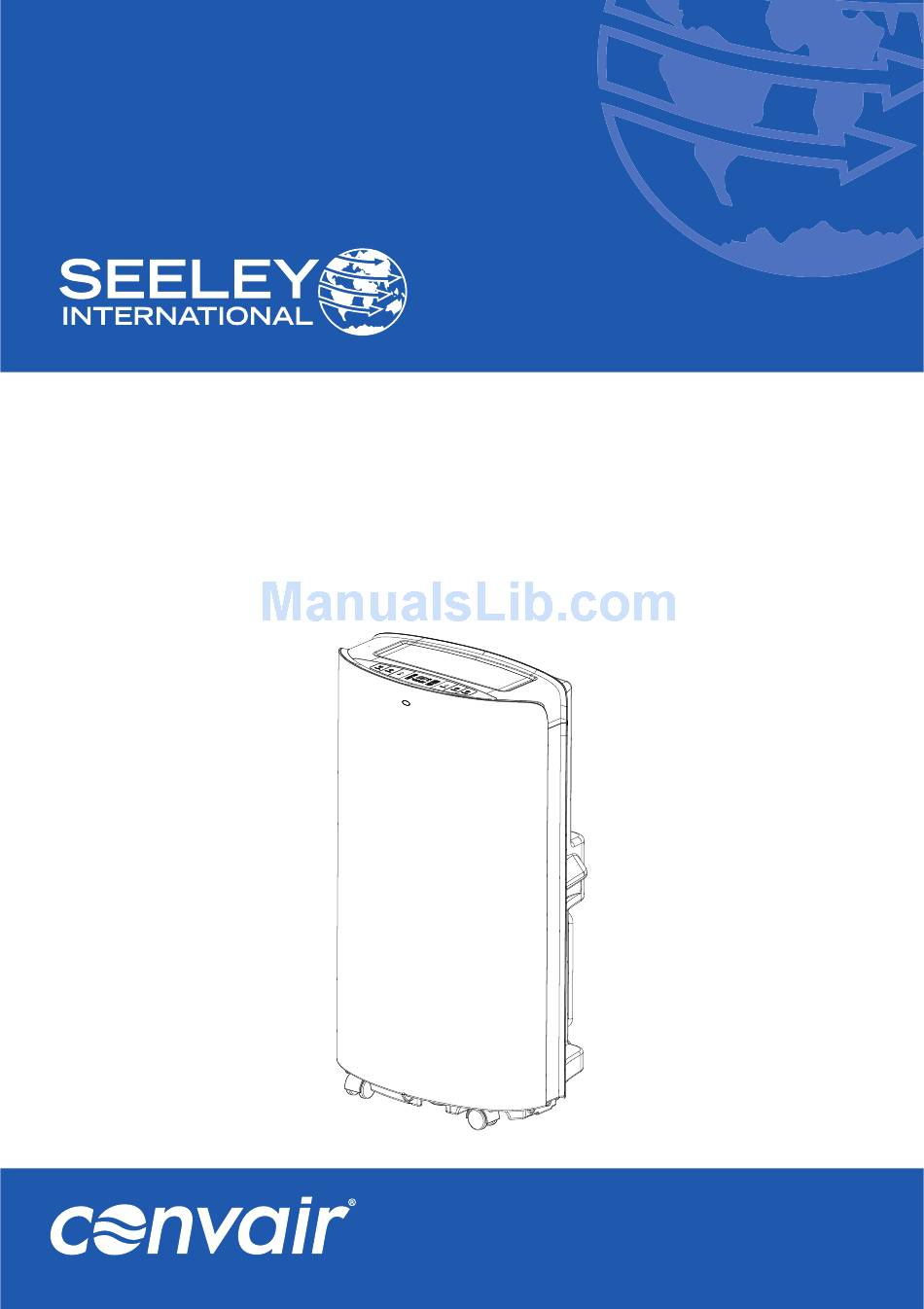

- Page 1 OWNER’S MANUAL Supercool Portable Refrigerated Slimline Air Conditioner (English) (CP12CW3)
-
Page 2: Table Of Contents
Troubleshooting..........10 Specifi cation ..........11 Warranty...........12 - 13 Waste electrical products must not be disposed of with household waste. This product should be taken to your local recycling centre for safe treatment. PORTABLE REFRIGERATED SLIMLINE AIR CONDITIONER - CP12CW3... -
Page 3: Introduction
INTRODUCTION THANK YOU for choosing a Convair air Energy Saving Tips conditioner. This appliance has been • Do not locate the air conditioner where carefully engineered to bring you trouble- furniture or other objects can obstruct free personal air conditioning. Please the air fl... -
Page 4: Safety
Ensure the appliance has been installed or wet areas. in accordance with national wiring regulations. Do not touch or operate the air conditioner with wet or damp hands or when standing barefoot. PORTABLE REFRIGERATED SLIMLINE AIR CONDITIONER - CP12CW3... -
Page 5: Component Location
COMPONENT LOCATION Parts List Control panel Remote control receiver Horizontal air defl ectors Enclosure Castors Air fi lter Evaporator air intake Exhaust outlet Power supply cord 10. Cord storage 11. Water tank drain 12. Condenser air intake 13. Air fi lters 14. -
Page 6: Installation
Keep the exhaust hose as water will not fl ow otherwise. short and straight as possible. This will maximise the cooling performance. Clips In window PORTABLE REFRIGERATED SLIMLINE AIR CONDITIONER - CP12CW3... -
Page 7: Control And Display
CONTROL AND DISPLAY Air Conditioner Control Panel Air Conditioner Remote Controller COOL mode DEHUMIDIFY mode FAN mode ENERGY-SAVINGS mode AUTO-SWING indicator WATER TANK FULL full indicator SLEEP mode indicator AUTO-CLEAN indicator 1. POWER button 7. TEMPERATURE display Press to turn the air conditioner on and off. 8. -
Page 8: Remote Control
(Figure 9). The air conditioner will “beep” when signal has been received. If there is no beep, press the remote button again, ensuring it is within range (6 metres) of the air conditioner. PORTABLE REFRIGERATED SLIMLINE AIR CONDITIONER - CP12CW3... -
Page 9: Operation
OPERATION Starting the air conditioner Note! In cooling mode the fan will Step 1: Ensure the air-conditioner is continue to operate even if the plugged in at the wall power outlet and is compressor has turned off. switched on. The air defl ector will open and close before entering stand-by mode. - Page 10 Timer range is 0 - 24 hours. Increments are 30 minutes when using the control panel, or 1 hour increments when using the remote control. PORTABLE REFRIGERATED SLIMLINE AIR CONDITIONER - CP12CW3...
-
Page 11: Maintenance
MAINTENANCE Always disconnect the air conditioner Draining the air conditioner from the electricity mains before cleaning Place the unplugged air conditioner over or draining. a drain point. Unscrew the drain cap and remove the drain plug at the bottom rear To maximize the effi... -
Page 12: Troubleshooting
Never try to dismantle the air conditioner yourself. In case of problems that cannot be resolved using the above guide, or if service on your dehumidifi er is required, please contact your dealer or designated service agent. PORTABLE REFRIGERATED SLIMLINE AIR CONDITIONER - CP12CW3... -
Page 13: Specifi Cation
SPECIFICATION SEELEY INTERNATIONAL CONVAIR SUPERCOOL Model CP12CW3 Power Supply 220-240V, 50Hz Rated Power (Watts) 1350 Cooling Capacity (Watts) 3520 Air Flow (m /hr) Moisture Removal (L/hr) Refrigerant type / Charge R410A / 560g Max. Pressure – Suction (MPa) Max. Pressure – Discharge (MPa) -
Page 14: Warranty
8. This warranty does not cover the cost of claiming under the warranty, it is your responsibility to cover all forwarding and freight costs incurred in returning the Goods to the Supplier at the place of purchase or us. 9. This warranty is only valid and enforceable in Australia. PORTABLE REFRIGERATED SLIMLINE AIR CONDITIONER - CP12CW3... - Page 15 Please retain your receipt as proof of purchase. Every request for warranty must be accompanied by proof of purchase. WARRANTY INFORMATION Please complete the following information: Serial Number: ..............Product: Convair Supercool Portable Slimline Refrigerated Air Conditioner Model: CP12CW3 Purchased from: ..............Date purchased: ../../..
- Page 16 It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifi cations are subject to change without notice. Please consult with your dealer to confi rm the specifi cations of the model selected. Warranty Service Australia 1-300-526-410 seeleyinternational.com seeleyinternational.com 00257601-A...
