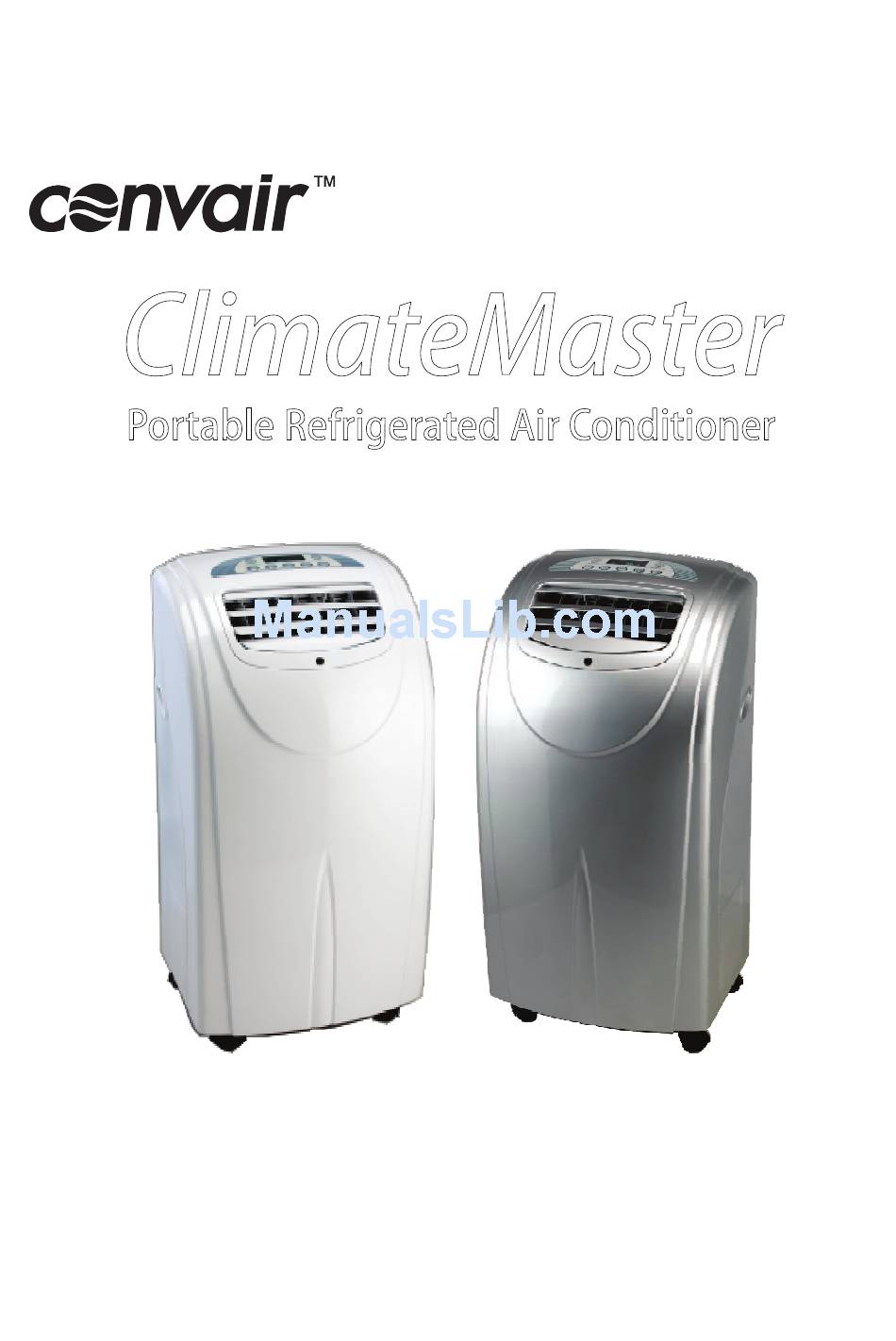

- Page 1 ClimateMaster Portable Refrigerated Air Conditioner ClimateMaster CM12RW CM12RCW, CM12RCS Instruction Manual...
- Page 2 Please read these instructions prior to using the appliance and save them for future reference. Waste electrical products must not be disposed of with household waste. This product should be taken to your local recycling centre for safe treatment.
-
Page 3: Table Of Contents
Safety ..........2 Component location......3 Personal Cooling Installing the exhaust hose ....4 Control panel ........5 Your Convair cooler is a portable air conditioning unit that supplies Remote control ........6 refrigerated air to a personal area Operation .........7 within a room. It is not intended to Functions ........8-9... -
Page 4: Safety
SAFETY General Safety Electrical Safety (cont) For indoor use only. Caution! before connecting the electrical power cord to a power outlet, Transport the air conditioner in an check that the air conditioner voltage is upright position only, or leave it in an the same as your power supply (refer to upright position for at least 2 hours the rating label located on the back of the... -
Page 5: Component Location
COMPONENT LOCATION Remote Control panel Sensor Air outlet Handle Mode Temp Speed Timer On / Off Air Intake Remote Drain Control Air Filter Air Intake Rating Label Power cord Exhaust Air Outlet Air Intake Drain Tray Exhaust Exhaust Fitting Exhaust Hose Fitting (window (cooler end) -
Page 6: Installing The Exhaust Hose
INSTALLING THE EXHAUST Assembling the exhaust hose (Fig 5) Note! The minimum distance required Step 1: Fit the square exhaust fitting from the operating air conditioner to onto the hose end with the 2 ‘pips’. The any obstructing objects or walls is pips will lock into the holes. -
Page 7: Control Panel
CONTROL PANEL Power ON / OFF button Temperature & Timer adjust button Press to turn the air Press to increase, to decrease conditioner on and off the set temperature or timer ON / OFF TEMP/TIME MODE SPEED TIMER Mode Select Fan Speed Timer Set Horizontal Swing... -
Page 8: Remote Control
REMOTE CONTROL Signal transmission point Display area Sweep button Sweep button (horizontal) (vertical) Mode Temp Speed Fan Speed Mode Select adjust button button Timer On / Off Battery Power ON / OFF compartment Timer button button Temperature / Timer adjust buttons Battery cover If there are two of the same air Preparation before operation... -
Page 9: Operation
OPERATION Starting the air conditioner Step 6: The air conditioner has 2 sets of motorised air direction vanes. Press Step 1: Ensure the cooler is plugged in and the OSC buttons on the control panel or the switched on. remote control to turn the vanes on or off. operates the horizontal vanes - air Step 2: Press the ON/OFF button on the... -
Page 10: Functions
FUNCTIONS Timer Function - Remote Control setup The air conditioner is fitted with a timer function. This can be set so that the air conditioner is operating before you wake up, or to be cooling when you get home from work, up to 12 hours in advance. To use this function, the cooler must be plugged in and ready to operate. - Page 11 FUNCTIONS How to cancel the timer To cancel the timer, press the TIMER button when either the TIMER OFF or TIMER ON has been set. The SET TIME will revert to and will disappear after 5 seconds. Setting the timer at the cooler Follow the same setting procedures as above, for both TIMER OFF and TIMER ON functions, by pressing the TIMER...
-
Page 12: Maintenance
MAINTENANCE Always disconnect the air conditioner from the electrical mains before cleaning or draining. To maximize the efficiency of the air conditioner, clean regularly. Cleaning the housing Use a soft, damp cloth to wipe the body clean. Never use aggressive chemicals, spirits, detergents, chemically treated cloths, or other cleansing solutions. -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Check The air conditioner does Is the air conditioner plugged in ? not run. Is there a power failure ? Is the "WATER FULL" error code “E2” flashing? Drain the tank as shown (Fig 16). Is the room temperature below the set temperature ? The air conditioner has little Is there direct sunshine ? Remember to close effect (firstly ensure that the... -
Page 14: Specifications
SPECIFICATIONS SEELEY INTERNATIONAL - CLIMATEMASTER PORTABLE AIR CONDITIONER ClimateMaster CM12RW ClimateMaster CM12RCW Model ClimateMaster CM12RCS Function Personal Cooling Personal Cooling & Heating Cooling Capacity (Watts) † 3,500 (12,000 Btu/hr) 3,500 (12,000 Btu/hr) Heating Capacity (Watts) † 3,500 (12,000 Btu/hr) Dehumidifying Capacity (L/hr) - Page 15 NOTES...
- Page 16 It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected. Service Australia 1-300-650-644 seeleyinternational.com 133003-E 1112 seeleyinternational.com 133010-E AU 1112...
