- Page 1 Accurate Temperature with a Gentle Forehead Scan Operators Manual for TAT-5000S-RS232-CORO Changing the Way the World Takes Temperature...
-
Page 2: Important Safety Instructions
Important Safety Instructions READ ALL INSTRUCTIONS BEFORE USING Intended Use: The Exergen TemporalScanner is a handheld infrared thermometer used by medical professionals for the intermittent measurement of human body temperature of people of all ages, by scanning the forehead skin over the temporal artery. Intended users are physicians, nurses, and nursing assistants at all levels who normally provide patient care. - Page 3 If you have any additional questions regarding use or care of the thermometer, please see www.exergen.com or call customer service at 1-617-923-9900. Defibrillation-proof type BF Applied Part indicates degree of patient protection against electrical shock. The product is internally battery powered and electrically isolated from earth.

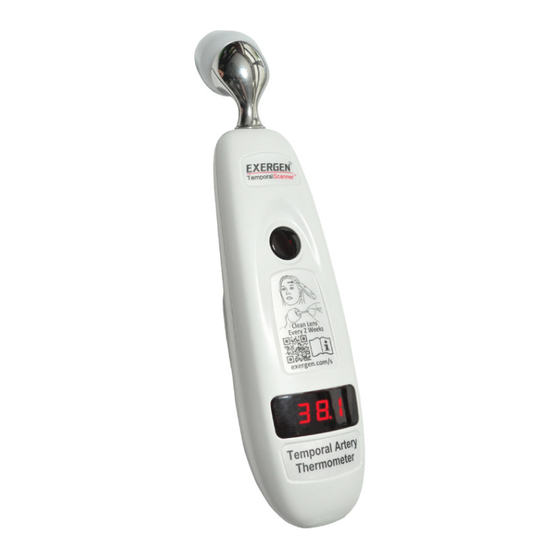

- Page 4 Product Map of the Exergen Temporal Scanner TAT-5000S-RS232-CORO Probe Lens Probe Cone ON Button Automatic turn-off in 30 seconds (when Pinhole measuring in body temperature range, otherwise 5 seconds) Battery LED Display Screen Compartment Battery Compartment Door 9-volt battery Instructions for TAT-5000S-RS232-CORO Instruction for use of TAT-5000S-RS232-CORO with GE Corometrics Maternal/Fetal Monitor (selected models only.
-
Page 5: Introduction To Temporal Artery Thermometry
Alternate sites when temporal artery or behind ear are unavailable: • Femoral artery: slowly slide the probe across groin. • Lateral thoracic artery: slowly scan side-to-side in the area midway between the axilla and the nipple. © 2021 Exergen Corporation page 5... - Page 6 2 mm below dissipating, resulting in falsely high to be measured. the surface, but can go deeply below the readings. surface on the side of the face. © 2021 Exergen Corporation page 6...
- Page 7 C (104 Low Ambient LO A <16 C (60.8 Low Battery bAtt Dead Battery blank display Processing Error Restart. Return to Exergen for repair if error message persists. Scanning - - - - (Normal Operation) © 2021 Exergen Corporation page 7...
-
Page 8: Care And Maintenance
Remove the battery from the compartment. See pictures above. Locate the switch, and with the tip of a screwdriver, slide left or right to the opposite position. Replace cover. F/C Switch © 2021 Exergen Corporation page 8... - Page 9 TAT-5000S. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3V/m. Portable and mobile RF communications equipment can affect performance. © 2021 Exergen Corporation page 9...
- Page 10 Note 1 At 80 MHz and 800 MHz the separation distance for the higher frequency range applies. Note 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. © 2021 Exergen Corporation page 10...
- Page 11 Repair If repair is required: • Contact Exergen at 1-617-923-9900 or repairs@exergen.com for a Return Materials Authorization (RMA) Number. • Mark the RMA number on the outside of your package and packing slips. • Include a description of the fault.
- Page 12 1434 The Netherlands Exergen TemporalScanner Temporal Artery Thermometer Changing the Way the World Takes Temperature EXERGEN CORPORATION • 400 PLEASANT STREET • WATERTOWN, MA 02472, USA • PH (617) 923-9900 www.exergen.com Document p/n 818770 Rev 7 © 2021 Exergen Corporation...
