Summary of Contents for Exergen TAT-5000S-USB-GN Series

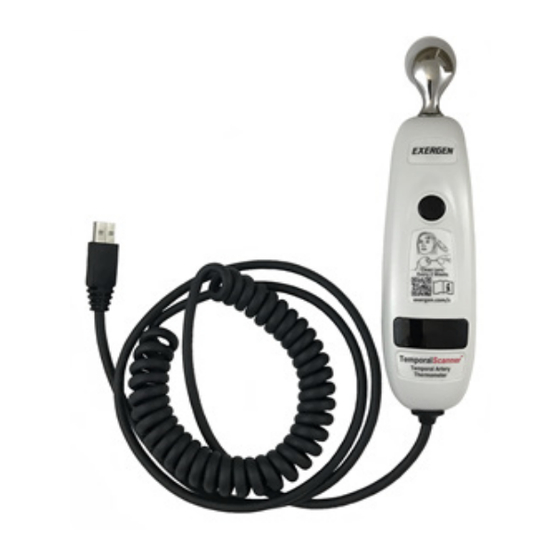

- Page 1 TemporalScanner ™ TAT-5000S-USB-GN Series Accurate Temperature with a Gentle Forehead Scan TemporalScanner ™ Operation Manual Changing the Way the World Takes Temperature Exergen TAT-5000S-USB-GN...
- Page 2 The patented arterial heat balance technology (AHB™) automatically The link to www.exergen.com/s measures the temperature of the appears on the front label of the skin surface over the artery and the instrument as a scannable “QR”...
- Page 3 READ ALL INSTRUCTIONS BEFORE USING Additionally, the TAT-5000S series thermometers are not for use aboard aircraft Intended Use: The Exergen TemporalScanner or near High Frequency Surgical Equipment or is a handheld infrared thermometer used Radio Frequency shielded rooms, such as MRI by medical professionals for the intermittent (Magnetic Resonance Imaging) areas.
- Page 4 Use of this equipment adjacent to or stacked service, repair, or adjustments, return your with other equipment (other than TAT-5000S thermometer to Exergen. Warning : no compatible patient monitors) should be avoided modification of this equipment is allowed. because it could result in improper operation.
- Page 5 • To Retain or Lock Reading: The reading will remain on the display for 30 seconds after button is released. If measuring room temperature, the temperature will remain on the display for only 5 seconds. Exergen TAT-5000S-USB-GN...
- Page 6 Measurement site must be exposed. At mid-line, the temporal artery is about 2 mm below the surface, but can go deeply below the surface on the side of the face. Exergen TAT-5000S-USB-GN...
- Page 7 2 dissipating, resulting in mm below the surface, but can falsely high readings. go deeply below the surface on the side of the face. Minimum measuring time: 2 seconds. Minimum time between successive measurements: 30 seconds Exergen TAT-5000S-USB-GN...
- Page 8 30 seconds wait about 30 seconds for the skin to recover for the previously covered area to from the cold probe. equilibrate to the environment. Exergen TAT-5000S-USB-GN...
- Page 9 Water can be used to remove any residual film left by the alcohol. Do not use bleach or other cleaning solutions on the sensor lens. • Sterilization: Sterilization is not recommended for cabled versions of the TemporalScanner. Exergen TAT-5000S-USB-GN...
- Page 10 Disconnect the old battery and replace with a new one in the same location. Replace the cover. Use only high quality alkaline batteries. * Approximate number of readings when scanning for 5 seconds and reading the temperature display for 3 seconds before turning thermometer off. Exergen TAT-5000S-USB-GN...
- Page 11 LO A < 16 °C (61° F) Low Battery bAtt No or Very Low Battery blank display Processing Error Restart. Return to Exergen for repair if error message persists. Scanning - - - - (Normal Operation) Fahrenheit or Celsius Conversion The TemporalScanner can be used in either °F or...
- Page 12 If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the TAT-5000S. b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3V/m. c. Portable and mobile RF communications equipment can affect performance. Exergen TAT-5000S-USB-GN...
- Page 13 At 80 MHz and 800 MHz the separation distance for the higher frequency range applies. Note 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Exergen TAT-5000S-USB-GN...
- Page 14 Repair If repair is required, please go to our website at www.exergen.com/rma to request a Return Materials Authorization (RMA) number. You will receive an email response with an RMA number and instructions on where to return your unit. Alternatively, you may contact Exergen customer service at (617) 923-9900 or service@exergen.com or contact your local distributor.
- Page 15 In the unlikely event recalibration might be required, the thermometer must be returned to Exergen for the procedure. However, calibration can be verified in the lab or clinical units quite easily using Exergen calibration kits. See:https://www.exergen.com/professional-medical-products/products/calibration-verification-kit and: https://www.exergen.com/professional-medical-products/products/professional-product-manuals...
- Page 16 Symbol for Manufacturer Do not throw this device away in the trash, contact Exergen Corp. for disposal and recycling instructions. IPX0 Caution Ordinary Equipment Consult Instructions for Use "On" (only for part of Equipment) Degree of Protection Against Electrical Shock...
